OTHER ADJUSTMENT
1 ADJUSTMENT
4
4

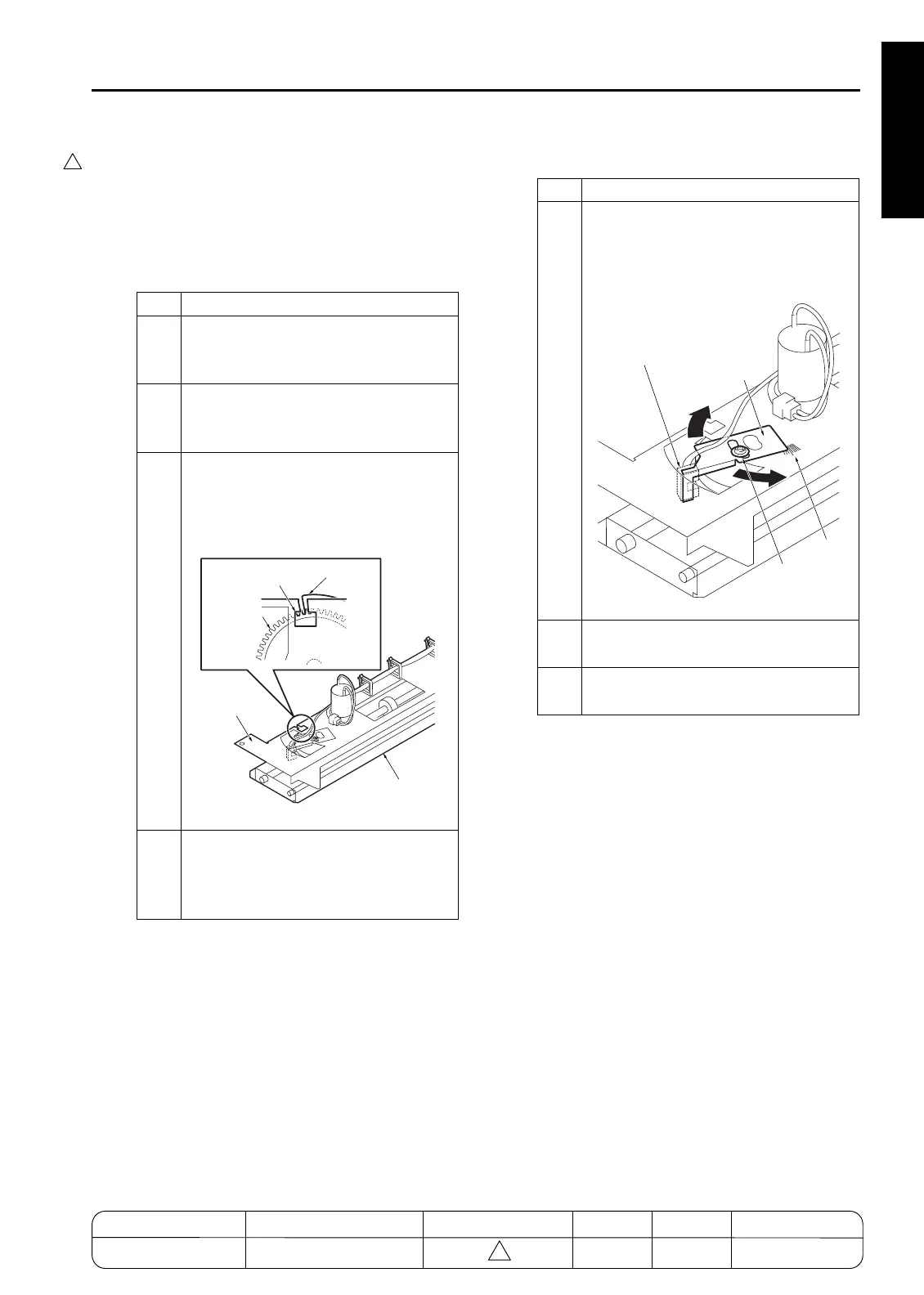

[14] FNS Adjusting the Shift Position
(FS-110/210)
1. Tool
• Screwdriver (Phillips)
2. Adjustment method
a. Preparation
b. Adjustment
Step Operation
1
Remove the following parts.
• Top cover or option PI (if installed)
• Top cover /2
2
Power on the main body and drive the
roller shift (M702) using the 47 mode
(code 75-2/75-3).
3
At the both HP (home position) and shift
position, check whether the edge of the
actuator for the slide gear fits into the
notched hole of the slide stay.
4
If the edge of the actuator for the slide
gear does not fit into the notched hole of
the slide stay, perform the following
adjustment:
Actuator
Notch
Slide gear
Slide stay
Shift unit
Step Operation
1
Loosen the screw fastening the bracket
for the roller shift HP PS (PS718), and
shift the bracket to adjust the amount of
discrepancy using the mark as a guide.
2
When the position is confirmed, fasten
the screw securing the bracket.
3
Reassemble in the opposite sequence
to removal.
Screw
Mark
Bracket
Shift HP PS (PS718)
MODEL MANUAL REVISED EDITION DATE PAGE METHOD
SERVICE MANUAL Dec. 2003
7155/7165/7255/7272
1-115 REPLACEMENT
