PARTS LAYOUT DRAWING
5 ELECTRIC PARTS LIST

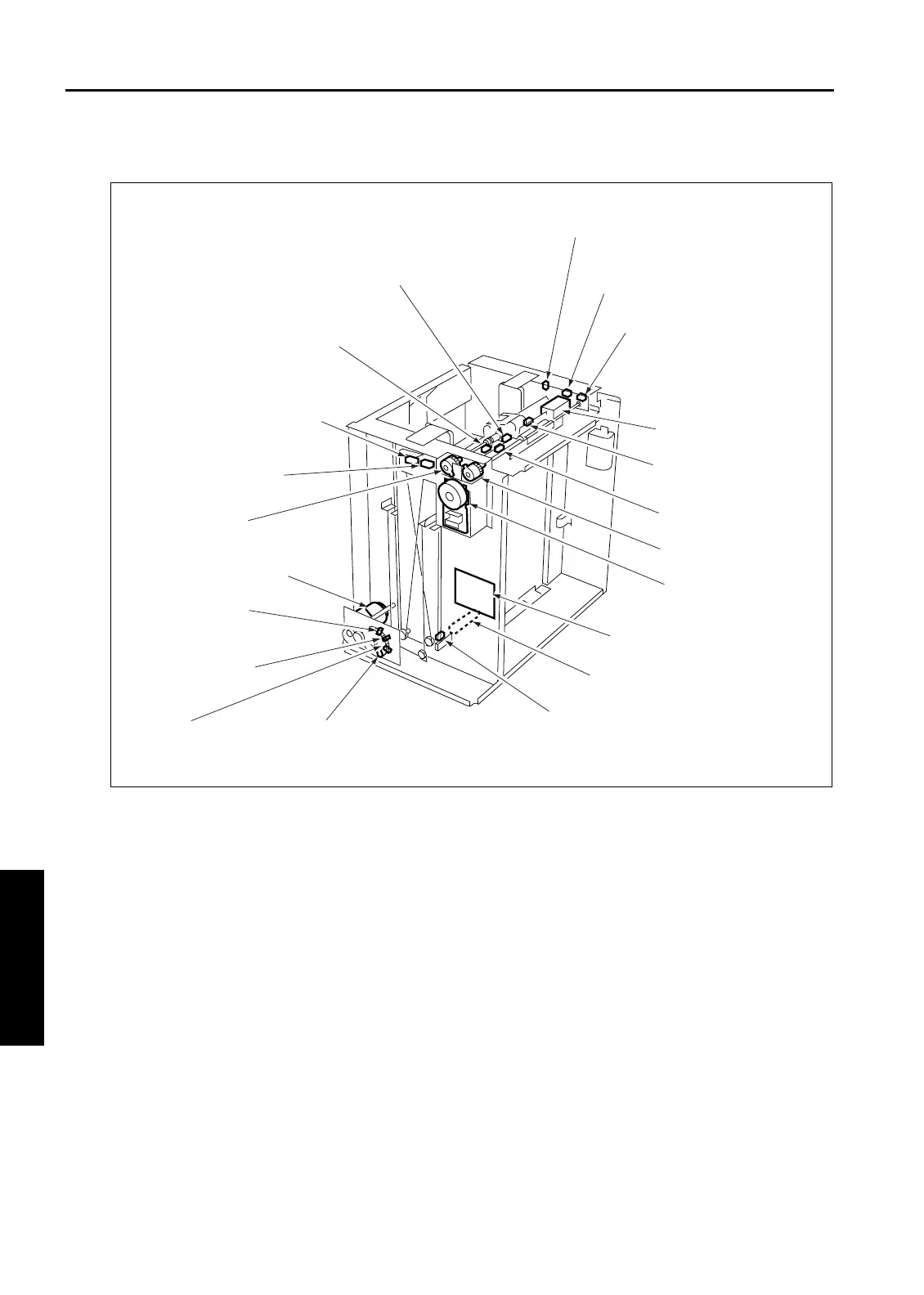

[3] LT-402/LT-412 Parts Layout Drawing
PS108
LT no paper detection PS
PS107
LT first paper feed PS
MS102
LT upper cover interlock MS2
PS100
LT upper cover
open / close detection PS
M100
LT UP/DOWN motor
MC101
LT paper feed MC
PS102
LT remaining paper
detection PS1
PS103
LT remaining paper
detection PS2
PS104
LT remaining paper
detection PS3
PS105
LT remaining paper detection PS4
PS101
LT lower limit detection PS
HTR101
LT heater
LTDB
LT drive board
M101
LT paper feed motor
MC102
LT first original feed MC
PS106
LT paper feed PS
PS109
LT upper limit detection PS
SD100
LT first paper feed SD
PS110
LT jam door
open / close detection PS
MS101
LT upper cover interlock MS1
SW100
LT tray down switch
5-10
To Next Page
