BYPASS TRAY
2-L-1
2 UNIT EXPLANATION
BYPASS TRAY

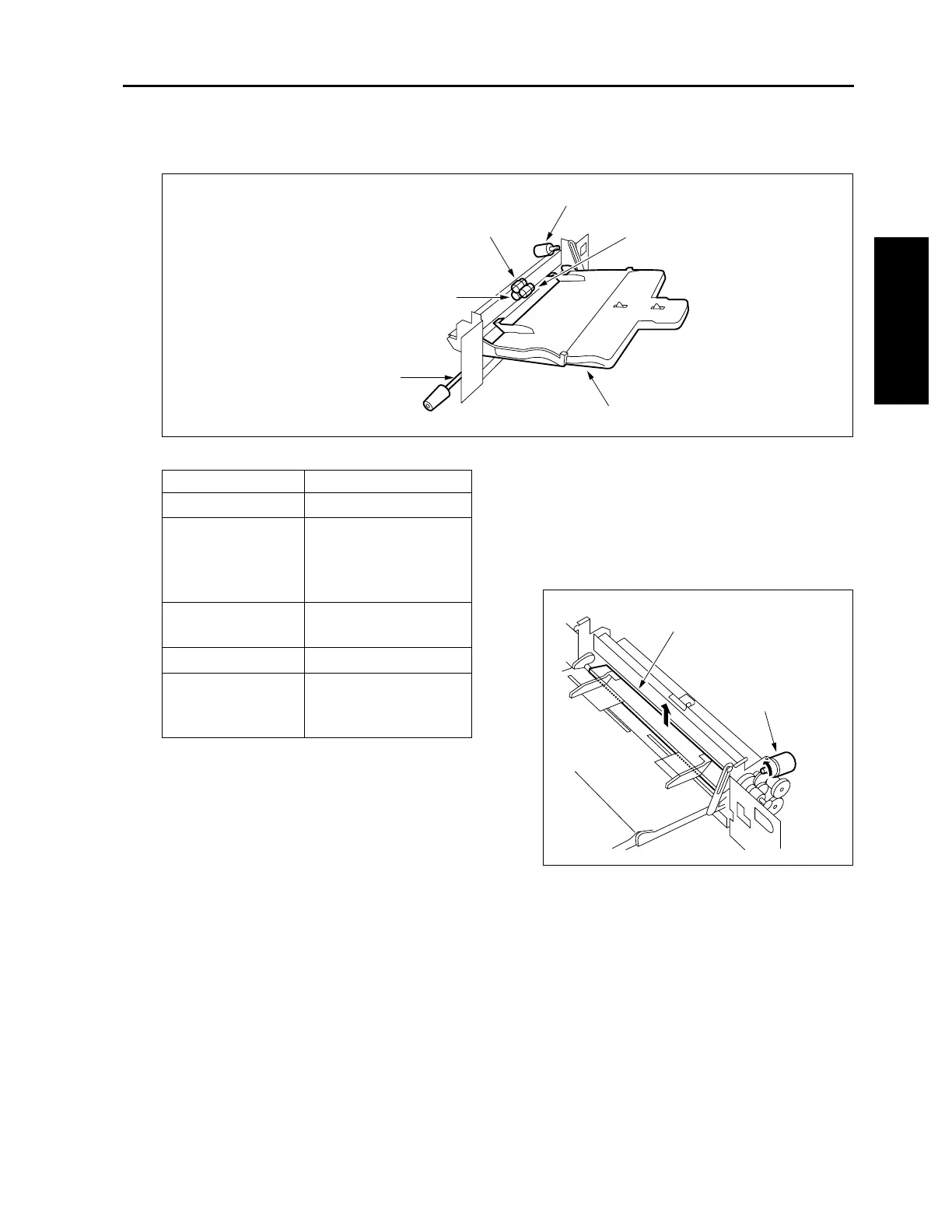

[1] Composition
[2] Mechanisms
*1 Paper lift-up
The up/down motor/BP (M20) drives the paper
up/down plate via gears. Paper is automatically
pushed up to the paper feed position, when the
print start button is pressed. When paper is
removed or exhausted M20 will drive down the
up/down plate.
Up/down motor/BP (M20)
By-pass paper feed roller
By-pass double feed
prevention roller
By-pass feed roller
Loop roller
By-pass tray
Mechanism Method
First paper feed Bypass feed roller
Paper lift-up *1 Paper up/down plate
Up/down motor/BP
(M20) + Upper/lower limit
detection sensor
Double feed preven-
tion
Torque limiter
No paper detection Photosensor + Actuator
Paper size detection
*2
Width: VR
Length: Photosensor +
Actuators (two)
Paper up/down plate
Up/down motor/BP
(M20)
