CORONA UNIT
3-F-7
3 DIS./ASSEMBLY
[9] Removing and Reinstalling the
Plunger Prevention Plate
Caution:
Be sure the power cord has been
unplugged from the wall outlet.
a. Procedure
(1) Draw the ADU frame from the main body. (See
"ADU UNIT.")
(2) Remove the transfer/separation corona unit.
(3) Release the six locks and remove the plunger
prevention plate (front).
(4) Release the six locks and remove the plunger
prevention plate (rear).
(5) Reinstall the above parts following the removal
steps in reverse.
[10] Replacing the Transfer/Separation
Wires and Transfer/Separation Wire
Cleaning Block
Caution:
Be sure the power cord has been
unplugged from the wall outlet.
a. Procedure
(1) Draw the ADU frame from the main body. (See
"ADU UNIT.")
(2) Remove the transfer/separation corona unit.
(3) Remove the plunger prevention plate.
(4) Remove the spark arrester plates (front and
rear).
(5) Remove the springs of wires (one each).
Caution: When installing the springs, bend the
edge of each spring inside.

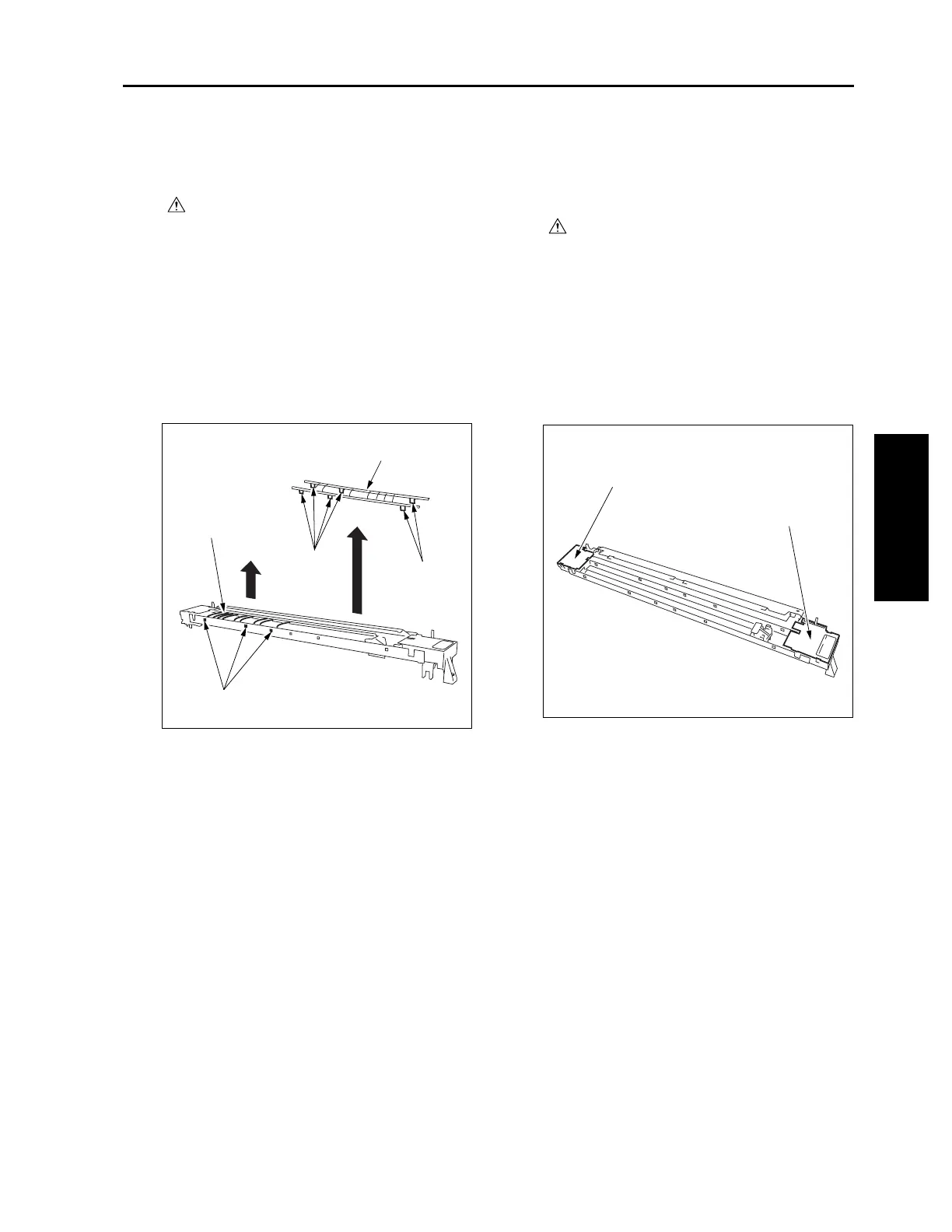

plunger prevention plate (front)
plunger prevention
plate (rear)
Lock
Lock
Lock
(Same as on the opposite side)
Spark arrester plate (rear)
Spark arrester plate (front)
3-F-5
To Next Page
