OTHER ADJUSTMENT
1 ADJUSTMENT
4
4
b. Adjustment

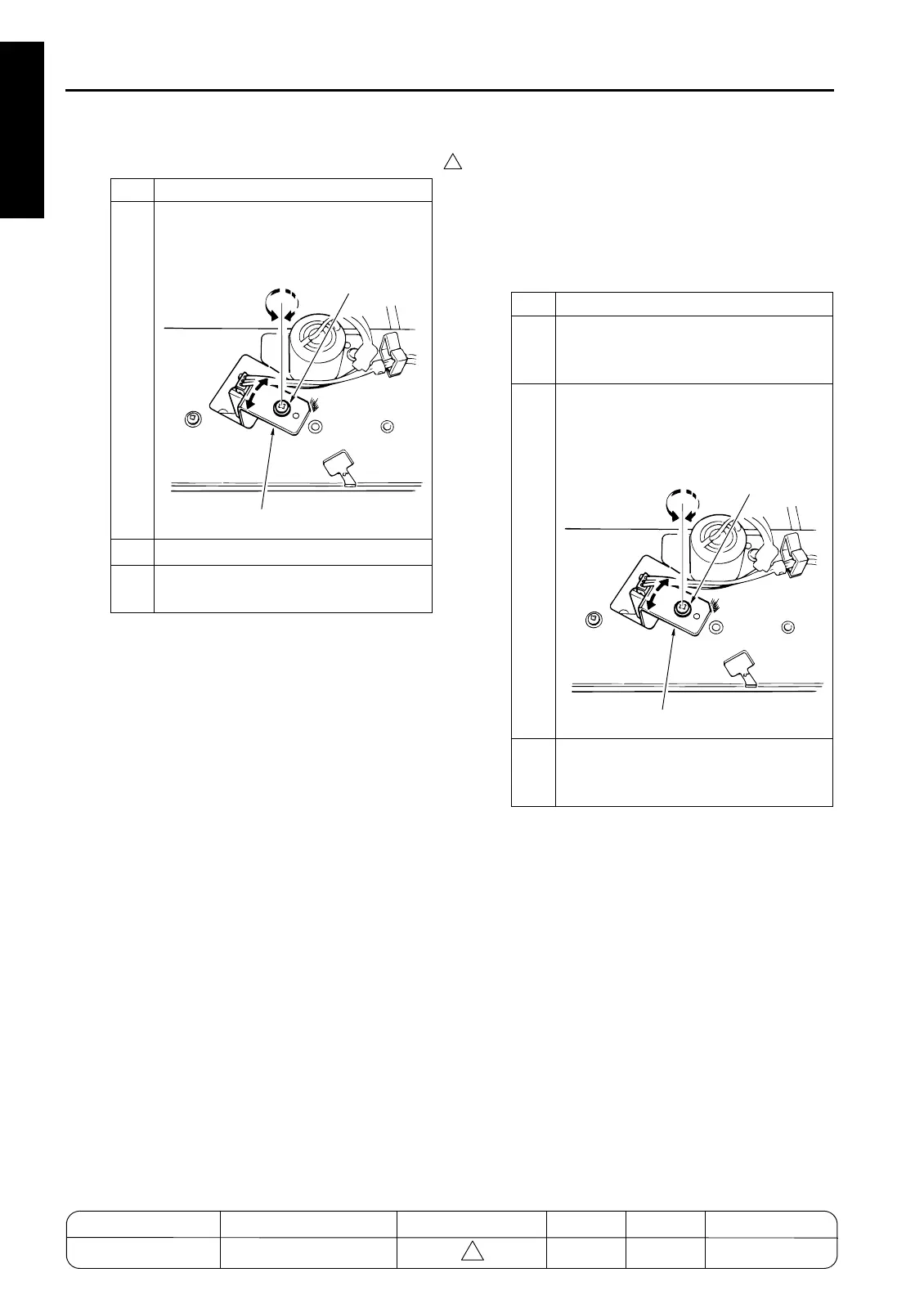

[40] FNS Adjusting Opening/Closing at
the Paper Exit (FS-111)
1. Tool
• Screwdriver (Phillips)
2. Adjustment method
a. Preparation
Step Operation
1
Loosen the screw holding the PS18
(roller shift HP) bracket in place, and
adjust the bracket position as necessary.
2
Retighten the screw.
3
Reassemble in the opposite sequence
to removal.
7272fs1033
Screw
Bracket
Step Operation
1
Remove the following parts.
• Rear cover
• Top cover
2
Switch the power OFF to ON to OFF.
Then, with the paper exit closed, confirm
that the paper exit casing is firmly
against the stopper section.
3
If the casing is not in firm contact with the
stopper, carry out adjustment described
as follows.
7272fs1033
Screw
Bracket
MODEL MANUAL REVISED EDITION DATE PAGE METHOD
SERVICE MANUAL Dec. 2003
7155/7165/7255/7272
1-144 ADDITION
To Next Page
