OTHER ADJUSTMENT
1 ADJUSTMENT
[8] Pick-up release amount adjustment
(LT-402/LT-412 only)
Caution: Pick-up release amount adjustment
must be performed when a no-feed
jam occurs frequently. To perform this
adjustment, adjust the mounting posi-
tion of the pick-up solenoid.
1. Tool
• Screwdriver (Phillips)
•Scale
2. LCT pick-up release amount adjustment
7
<When the heights are not within speci-
fications>
Adjust the position of the sensor mount-
ing bracket vertically so that the distance
between the top surfaces of the paper
feed guide and paper up/down plate is
within the specifications.
When raising the height of the paper up/
down plate:
Lower the sensor mounting bracket.
When lowering the height of the paper
up/down plate:
Raise the sensor mounting bracket.
<When any fault has occurred>
When the paper has folded leading
edge:
When the paper has dented curl:
Raise the sensor mounting bracket.
When the paper has convex curl:
Lower the sensor mounting bracket.
8
Install the paper feed roller unit and
spring.
9
Close the top cover.

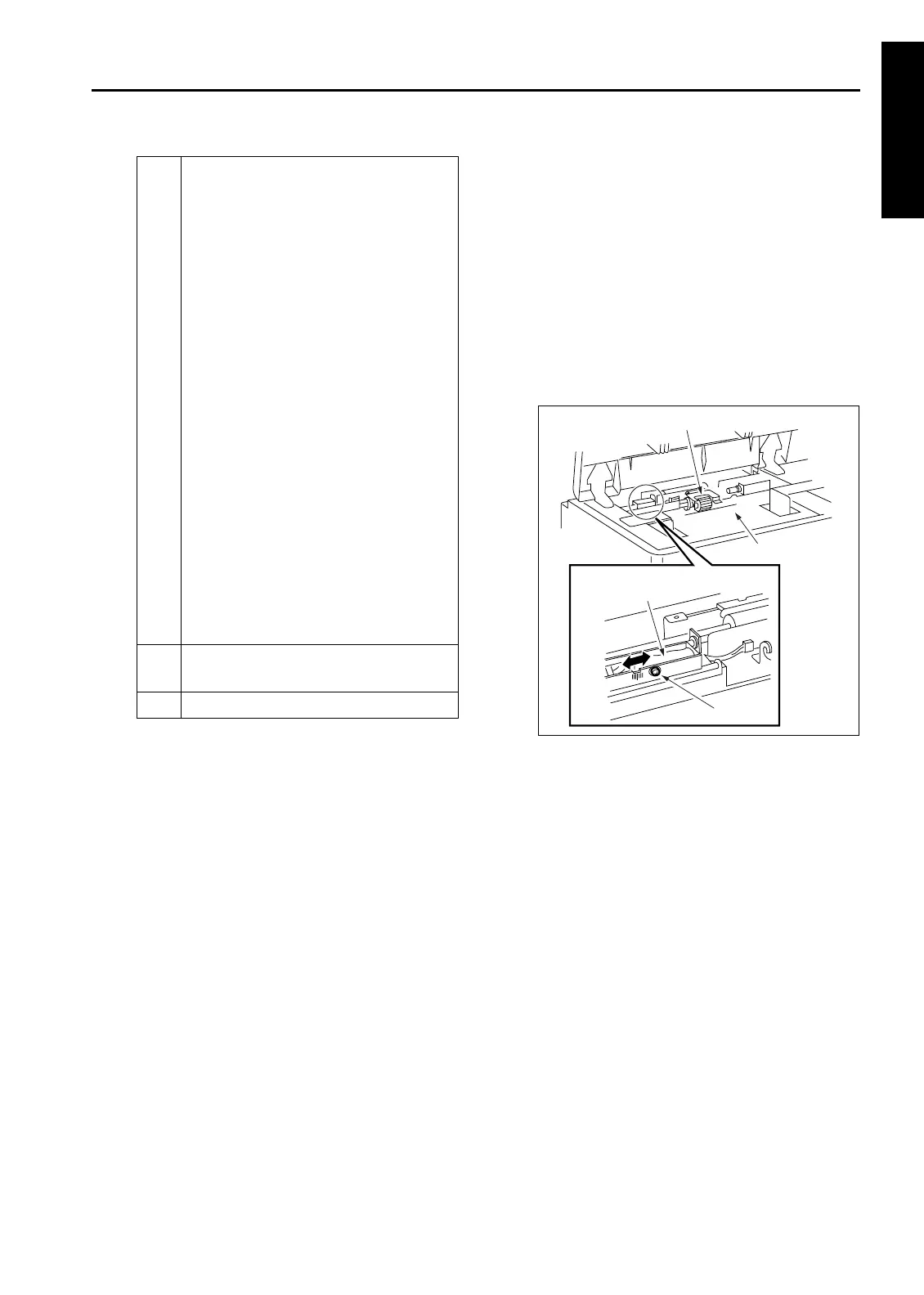

Screw
Pickup solenoid
Up/down plate
Up/down plate paper feed roller
1-107
To Next Page
