ADU UNIT
3-N-8
3 DIS./ASSEMBLY
(4) Remove five screws to remove the second paper
feed unit.
(5) Reinstall the above parts following the removal
steps in reverse.
[6] Cleaning the Registration PS (PS44)
Warning:
The interlock which is turned OFF when
the front right or left door opens or closes
should never be turned ON forcibly with
the ADU stand drawn out.
Caution:
Be sure the power cord has been
unplugged from the wall outlet.
a. Procedure
(1) Draw out the ADU stand from the main body.
(2) Detach the ADU cover.
(3) Remove the second paper feed unit
(4) Turn the second paper feed unit upside down and
clean the registration PS (PS44) with a blower
brush.
(5) Reinstall the above parts following the removal
steps in reverse.

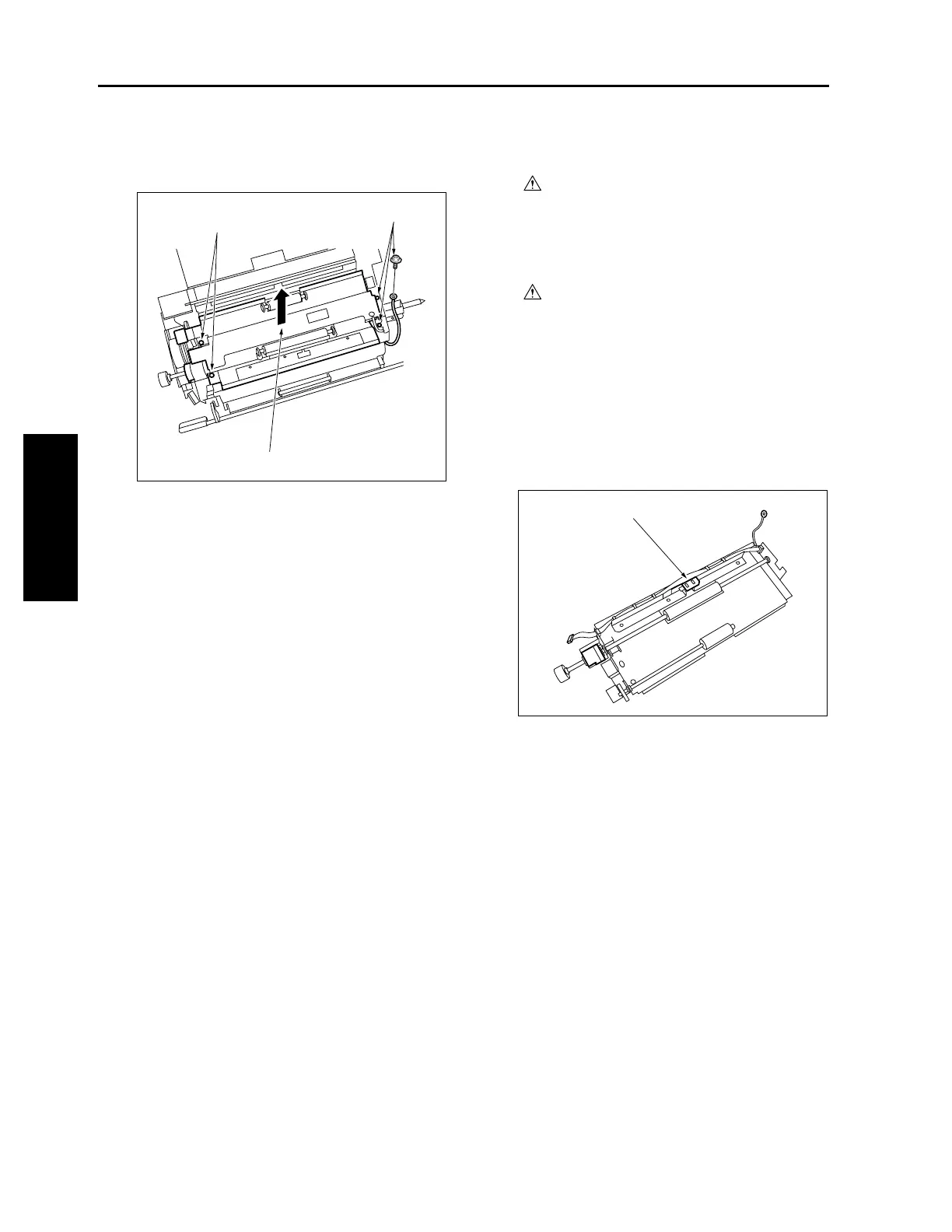

Screws
Screws
Second paper feed unit
Registration PS (PS44)
