Konica Minolta 7155 - Adu; Composition

ADU
2-N-1
2 UNIT EXPLANATION
ADU

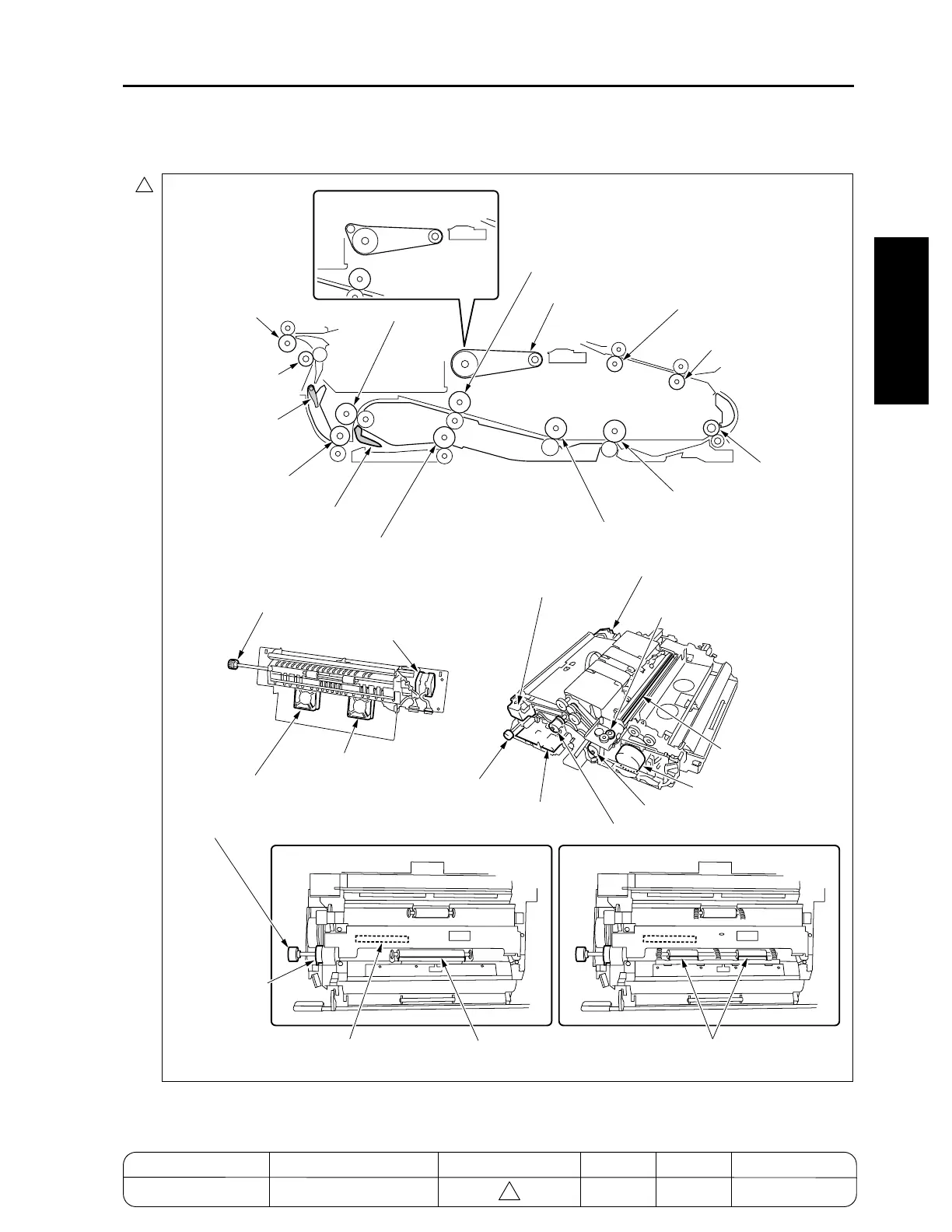

[1] Composition
7272ma2012
ADU deceleration MC (MC2)
ADU conveyance MC (MC13)
ADU drive board (ADUDB)
Reverse/exit roller rotation knob
Conveyance motor (M5)
TSL
Reverse gate SD (SD7)
Reverse/exit motor (M8)
Registration MC
(MC1)
Registration roller rotation knob
Mis-centering PS (PS70)
Paper dust cleaning brush Paper dust cleaning brush
Paper exit fan/F (FM6)
Paper exit fan/R (FM7)
Paper exit motor (M7)
Paper exit roller rotation knob
Registration roller
Pre-transfer roller
ADU pre-registration roller
ADU reverse roller
Paper exit roller
Paper exit
conveyance roller
Reverse/exit gate
ADU gate
ADU conveyance roller 1
ADU conveyance roller 2
ADU conveyance roller 3
ADU conveyance roller 4
Reverse/exit roller
Conveyance belt
Transfer/separation cleaning
motor (M10)
7155/7165
7255/7272
7255/7272
4
MODEL MANUAL REVISED EDITION DATE PAGE METHOD
SERVICE MANUAL Dec. 2003
7155/7165/7255/7272
2-N-1 REPLACEMENT
4
