Konica Minolta 7155 User Manual

EXTERNAL SECTION
3-A-1
3 DIS./ASSEMBLY
EXTERNAL SECTION

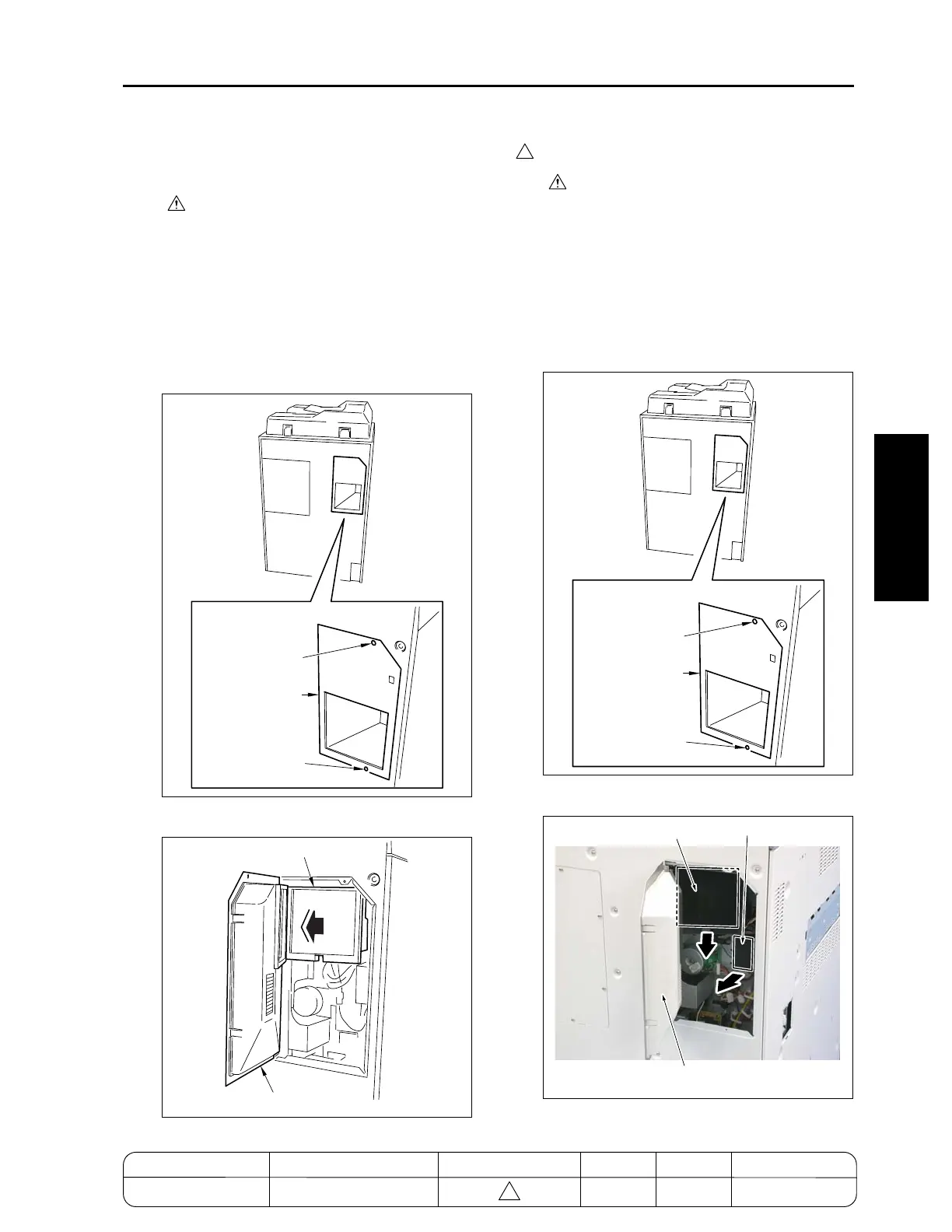

[1] Replacing the Ozone Filter
In the case of the 7155/7165
Caution:
Be sure the power cord has been
unplugged from the wall outlet.
Caution: When replacing the ozone filter, insert
it in the opening in the main body as far
as it will go.
a. Procedure
(1) Loosen two screws to remove the ozone filter
cover.
(2) Replace the ozone filter.
(3) Reinstall the above parts following the removal steps in reverse.
In the case of the 7255/7272
Caution:
Be sure the power cord has been
unplugged from the wall outlet.
Caution: When replacing the ozone filter /M and
/S, insert it in the opening in the main
body as far as it will go.
b. Procedure
(1) Loosen two screws to remove the ozone filter
cover.
(2) Replace the ozone filter /M and /S.
(3) Reinstall the above parts following the removal steps in reverse.
Screw
Ozone filter cover
Screw
Ozone filter
Ozone filter cover
Screw
Ozone filter cover
Screw
7272ma3001
Ozone filter /S
Ozone filter /M
Ozone filter cover
MODEL MANUAL REVISED EDITION DATE PAGE METHOD
SERVICE MANUAL Dec. 2003
7155/7165/7255/7272
3-A-1 REPLACEMENT
4
4
