PARTS LAYOUT DRAWING
5 ELECTRIC PARTS LIST
MODEL MANUAL REVISED EDITION DATE PAGE METHOD
SERVICE HANDBOOK May 20027155/7165

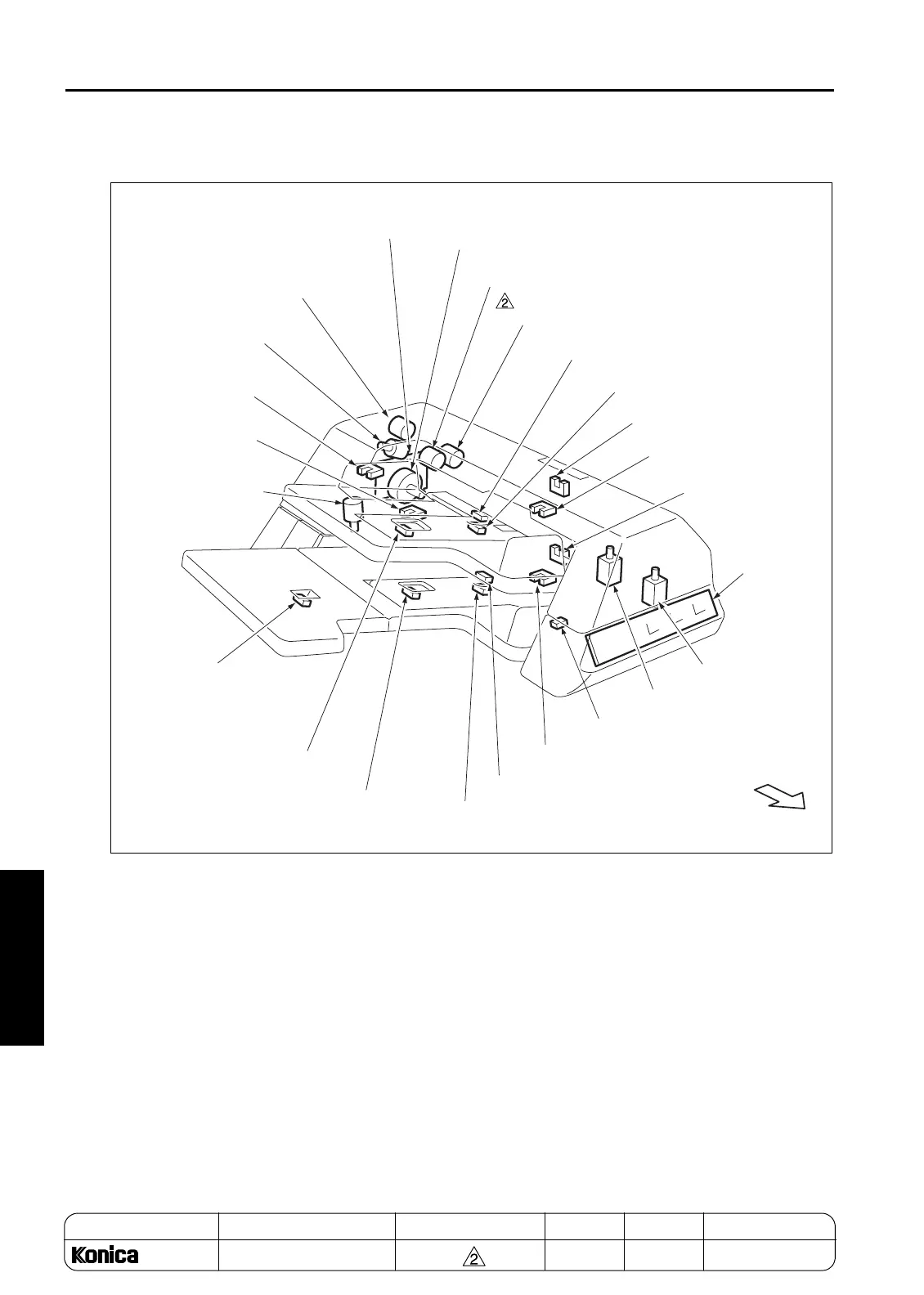

[5] PI-110 Parts Layout Drawing
MC201
Conveyance MC/U
M201
Tray up/down motor/U
PS205
Tray lower limit PS/U
PS210
Tray lower limit PS/L
M202
Tray up/down motor/L
PS212
Sheet size PS/L
PS203
Sheet set PS/U
PS208
Sheet set PS/L
VR202
Sheet size VR/L
PS207
No sheet PS/L
PS209
Tray upper limit PS/L
MS201
PI interlock MS
SD201
Sheet feed SD/U
SD202
Sheet feed SD/L
PS206
PI passage PS/L
PIOB
PI operation
board
PS204
Tray upper limit PS/U
PS201
PI passage PS/U
VR201
Sheet size VR/U
PS202
No sheet PS/U
MC202
Conveyance MC/L
M203
PI conveyance motor
PIDB
PI driver board
FRONT
MC203
Registration MC
5-14
