3.6 System diagnostics
3.6.1 Performing system diagnostics
Overview of diagnostic functions
The following diagnostic functions to display network settings are included in this menu:

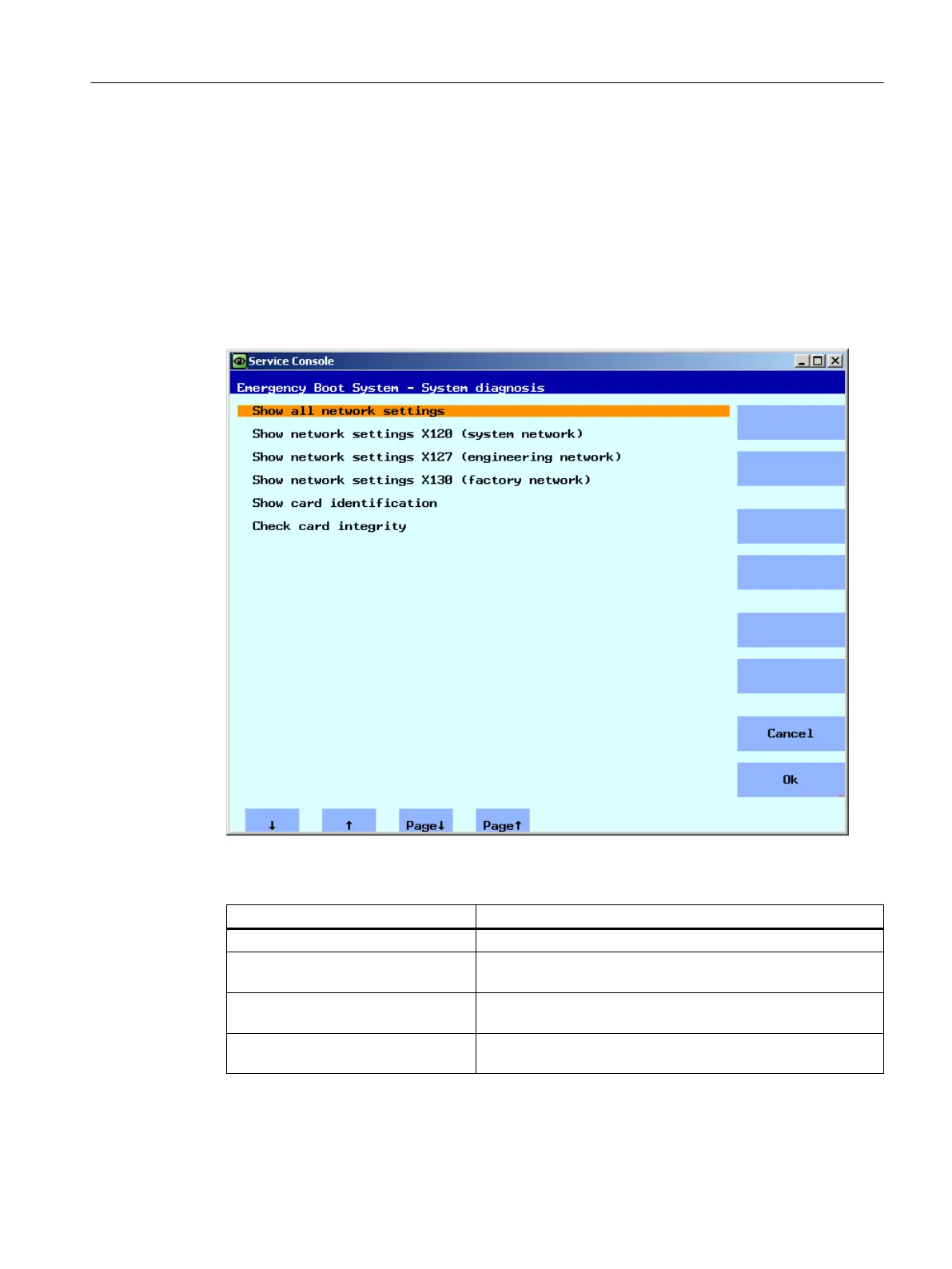

Figure 3-15 Diagnostics functions
System diagnosis Description
Show all network settings Connection data of all Ethernet interfaces is displayed.
Show network settings X120
(system network)
The connection data of interface X120 is displayed.
Show network settings X127
(engineering network)
The connection data of interface X127 is displayed.
Show network settings X130
(factory network)
The connection data of interface X130 is displayed.
Service and diagnostics
3.6 System diagnostics
NCU operating system
Commissioning Manual, 12/2017, 6FC5397-1DP40-6BA1 89
