Column Description
Display area Specifies which HMI screen is displayed when activating the TCU.
Channel Specifies which channel is displayed when activating the TCU.

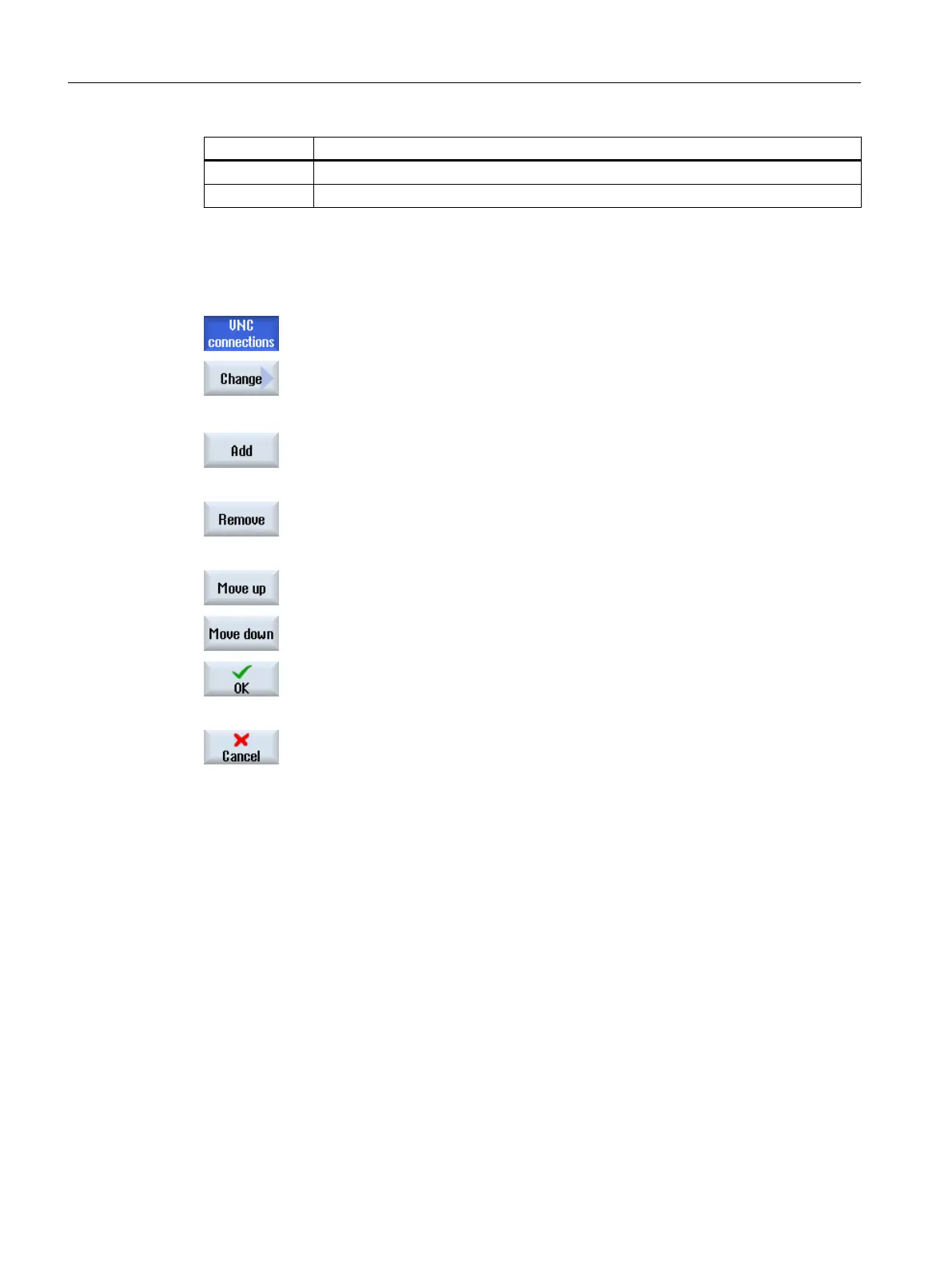

Editing the list of VNC connections
1. The "Available Operator Panels ..." window is open.
2. Press the "Change" softkey.
The information on the VNC connections can be edited.
- OR -
3. Press the "Add" softkey to establish a new VNC connection.
- OR -
4. Press the "Remove" softkey to remove a selected VNC connection from
the list.
- OR -
5. Press the "Move up" or "Move down" softkey to move a VNC connection
within the list.
6. Make the required change and press the "OK" softkey.
- OR -
Press the "Cancel" softkey to cancel the changes.
See also
Displaying the available operator panels (Page 378)
17.5.3 T:M:N configuration
By T:M:N configuration we mean a grouping of t operating stations (TCUs with MCP), m HMI
systems and n NCK systems, in which the operating stations can be freely switched to the
various HMI systems in order to operate. In a two-stage process, the switchover targets for
each operating station are individually configured in a channel menu.
From the point of view of the HMI, T:M:N operation is active if a channel menu is configured.
Available switchover targets are defined directly via the address of the HMI and optionally via
an NC channel, which must be assumed on switchover from the HMI. These switchover targets
can be combined into so-called channel groups. Channel groups are displayed on horizontal
Configuring the network
17.5 Configuring operator panels
SINUMERIK Operate (IM9)
380 Commissioning Manual, 12/2017, 6FC5397-1DP40-6BA1
