6.7 Create a disk image of a partition
You can create a disk image of an individual partition of the SSD in the Service Center with
the "Partition Backup" function.
Procedure
To save a partition of the SSD as a disk image, proceed as follows:
1. Start the Service Center, e.g. via the Windows boot menu.
See also: Starting the Service Center (Page 122)
2. In the main menu of the Service Center, click "Partition Backup".
The "Service Center - Partition Backup" dialog box opens.

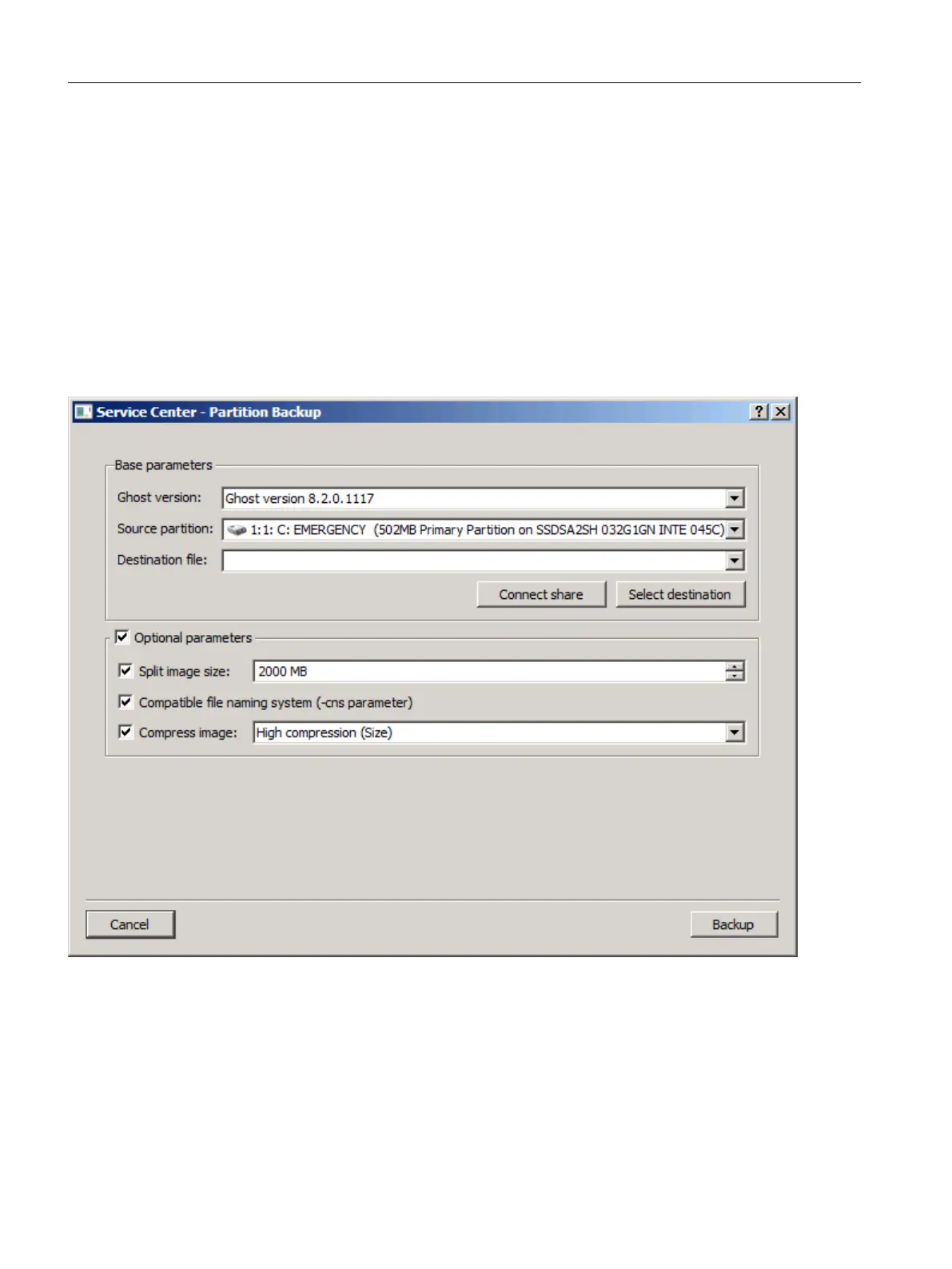

Figure 6-6 Service Center - Partition Backup
Backing up and restoring data
6.7 Create a disk image of a partition
PCU Base Software (IM10)
132 Commissioning Manual, 12/2017, 6FC5397-1DP40-6BA1
