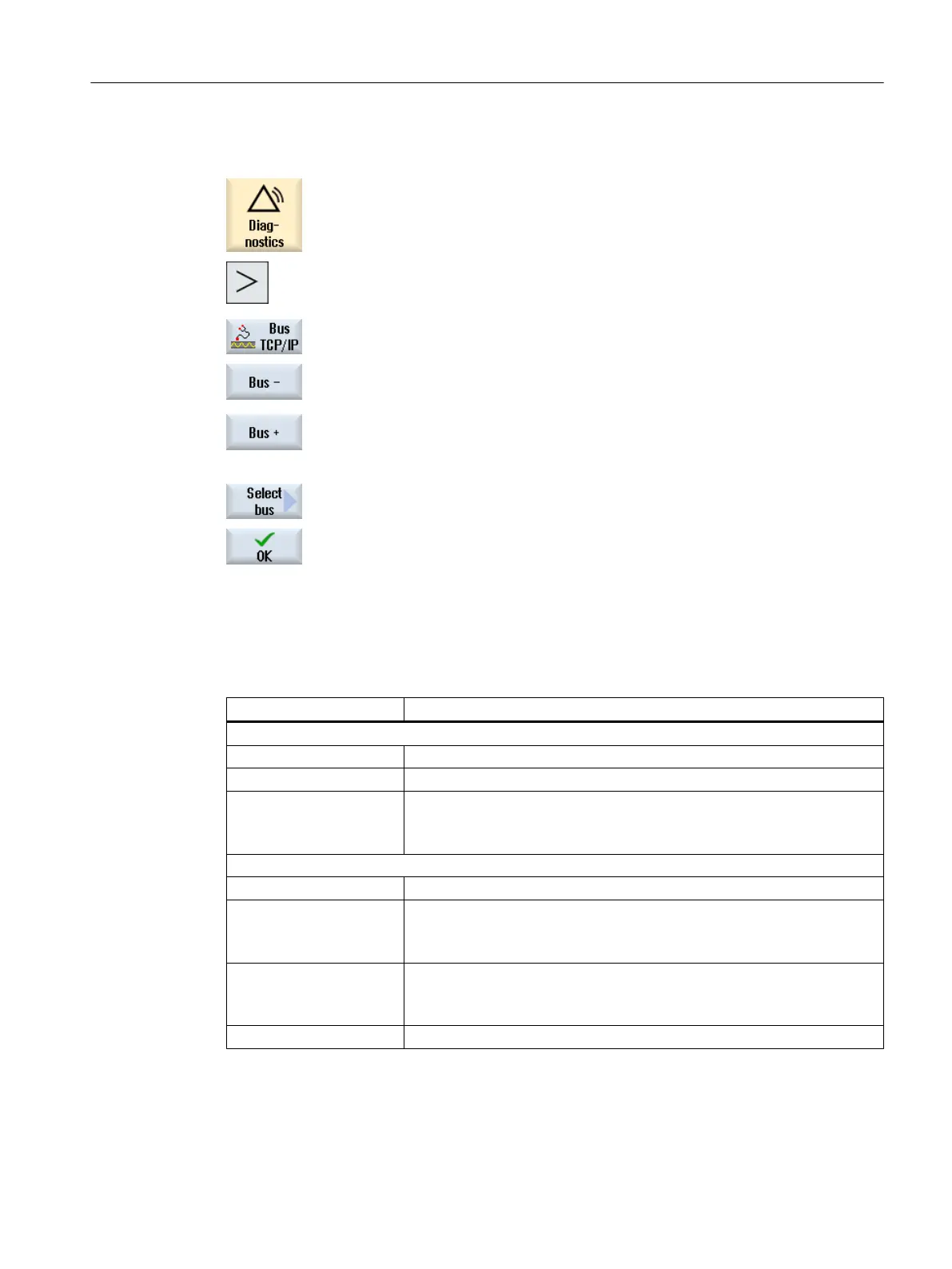

Procedure
1. Select the "Diagnostics" operating area.
2. Press the "Menu forward" key and the "Bus TCP/IP" softkey.
The "PROFIBUS Diagnostics" window is opened.
3. If several PROFIBUS connections have been configured, press the "Bus
-" or "Bus +" softkey to select the desired configuration.
- OR -
Press the "Select bus" softkey and in the list that is displayed, select the
required configuration.
Press the "OK" softkey.
18.9.1 Displaying details for DP slaves
Further information about the slots of a selected DP slave is displayed here.
Display Meaning/information
Slave
Address The DP slave selected in the PROFIBUS diagnostics / slaves pane
Communication state Data regarding the NC and/or PLC assignment of the DP slave
In synchronism with NC Data regarding NC synchronous operation of the DP slave
If a synchronous value is not available for the DP slave, then the display
remains hidden.
Slots
No. Slot number within the DP slave
I/O addr. I/O address in the I/O address space of the PLC, assigned to this slot
For NC axes, the setpoint and the actual value must always be configured
on the same I/O address.
Type Data as to whether the slot is input, output or diagnostic slot
If the slot is assigned to an NC axis, then the output is always denoted as
setpoint value and the input always as actual value.
Length (bytes) Length of the I/O area reserved for the slot in the STEP7 I/O address space
Service and diagnostics
18.9 PROFIBUS diagnosis
SINUMERIK Operate (IM9)
Commissioning Manual, 12/2017, 6FC5397-1DP40-6BA1 449
