192.168.214.4 and not net 10.113.20.0 ; Records the entire network
traffic of system
192.168.214.4 which does not
run via system 10.113.20.0.
-i 10.113.20.0 -q '(tcp port 80) or
(tcp port 443)'
; Records HTTP and also HTTPS
packets of the network
interface from system
10.113.20.0.
17.6.4.4 Accessible nodes
By actuating the "Accessible nodes" softkey in the network, the list of accessible nodes on
X120 and, if necessary, on X150, is created and displayed. The list content can be compared
as current topology with a reference topology.
Note
Although handheld terminals and EKS identification systems are not determined for the list of
accessible nodes, they can be added as additional nodes to the topology.

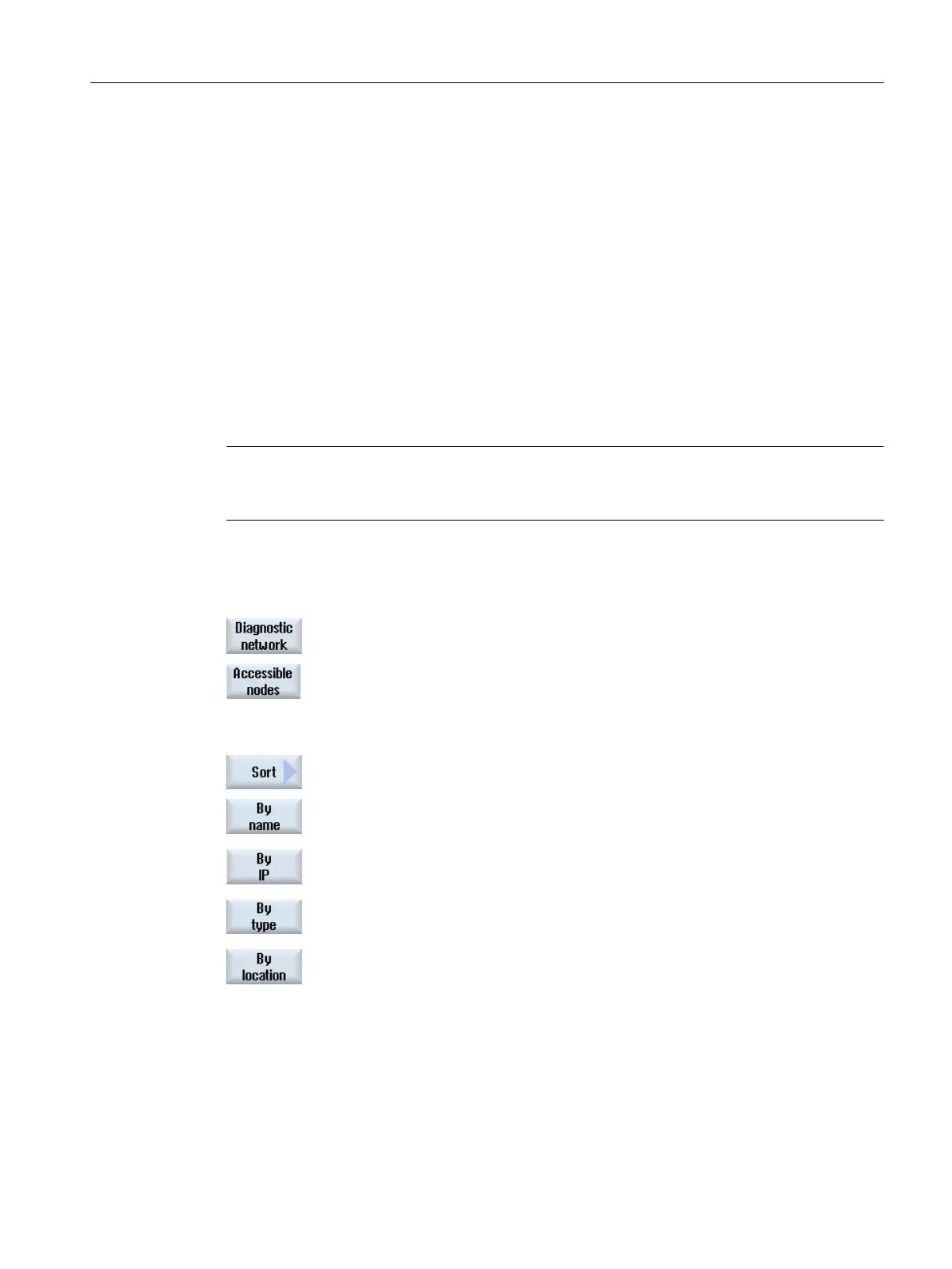

Procedure
1. The "Network Status" window opens.
2. Press the "Accessible nodes" softkey.
The "Accessible Nodes" window opens.
The IP address, HW-Id/type, status and location are displayed in tabular
form for each node.
3. Press the "Sort" softkey.
4. Press the "By name", "By IP", "By type" or "By location" softkeys to sort
the display.
- OR -
Configuring the network
17.6 Station-related network diagnostics
SINUMERIK Operate (IM9)
Commissioning Manual, 12/2017, 6FC5397-1DP40-6BA1 401
