Element values
You can change the magazine location type with the parameters in the "Location" window:
Parameters Description
Location type Identification for the magazine location type
Consider adjacent location
● Yes
● No
12.6.3.5 Link assignments
You can establish the mechanical relationship between the individual components of the tool
unit in the "Assignment" window.
Element values
You are currently located under the "Active data" → <tool unit> directory in the "Commissioning"
→ "NC" →"Tool management" operating area.
You can link the following parameters with each other from the selection list via the
Assignments element:
● Spindle/gripper/loader for magazine
● Gripper/loader for spindle
● Loading point for magazine
Note
The separation as number of locations from the magazine zero point of the affected magazine
to the internal magazine location must be defined for each magazine assignment.

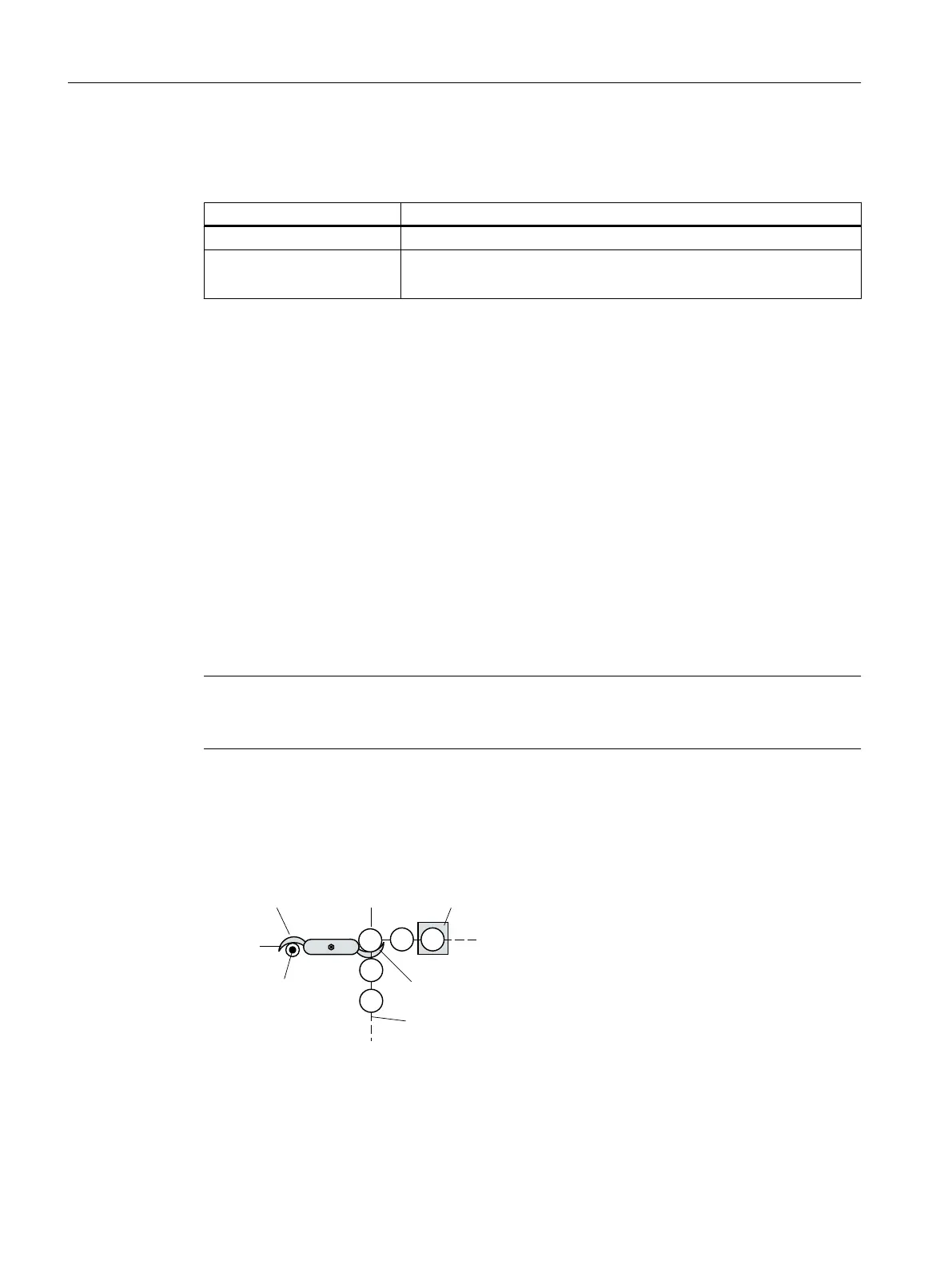

Example
If, for example, tools on a spindle must be replaced from a magazine, the following assignment
can result:
6SLQGOHB
/RDGBVWDWLRQB/RDGBVWDWLRQB
0DJD]LQHB
7UDQVIHUBORFDWLRQB
*ULSSHUB
*ULSSHUB
Location Type/Index
1 Tool spindle Spindle_1
2 Gripper Gripper_1
3 Gripper Gripper_2
4 Transfer location Transfer_location_1
1 Load station Load_station_1
2 Load station Load_station_2
Magazine Magazine_1
Tool management
12.6 Editor for the tool and magazine management
SINUMERIK Operate (IM9)
252 Commissioning Manual, 12/2017, 6FC5397-1DP40-6BA1
