5. The configuration data of the new module is read in.
6. Update the drive data in the commissioning archive with the new configuration data.
5.1.9 Example: Parallel connection with TM120

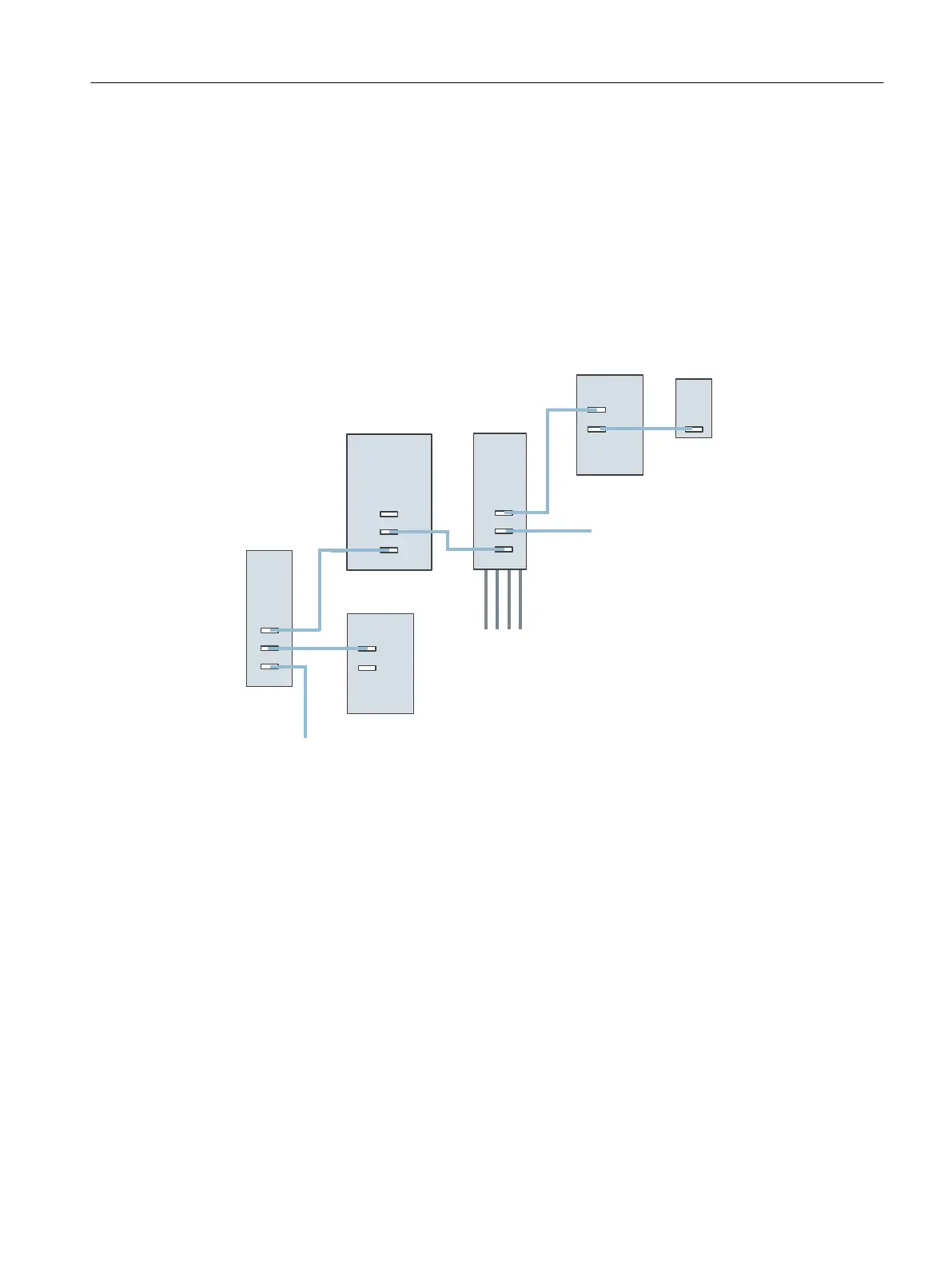

Topology
Application: Four motors connected in parallel
)XUWKHU600RU'00
[WHPSHUDWXUHLQSXW
[WHPSHUDWXUHLQSXW
6,180(5,.
&RQWURO
;
;
;
70
;
;
600
;
;
;
60[
;
$/0
;
;
;
70
;
;
00
M1 ... M4 Motor 1 ... motor 4
One KTY and three PTC in series are connected for each motor.
SMx Sensor Module (motor encoder)
ALM Active Line Module
DMM Double Motor Module
SMM Single Motor Module
TM120 Terminal Module
The shown topology requires four KTY sensors and four PTC sensors:
●
Each primary section has one KTY sensor (Temp-F) and three series-connected PTC
sensors (Temp-S).
Two TM120s are required:
● A TM120
is interconnected automatically in series between the Motor Module and the SMx
Sensor Module.
● A TM120 is directly inserted into a Line Module: This requires a manual interconnection by
the commissioning engineer.
Commissioning the drive
5.1 Commissioning the drive
CNC commissioning
Commissioning Manual, 10/2015, 6FC5397-3DP40-5BA3 127
