Data backup
The configuration data is backed up after commissioning in the non-volatile memory with the
"Save data" vertical softkey:

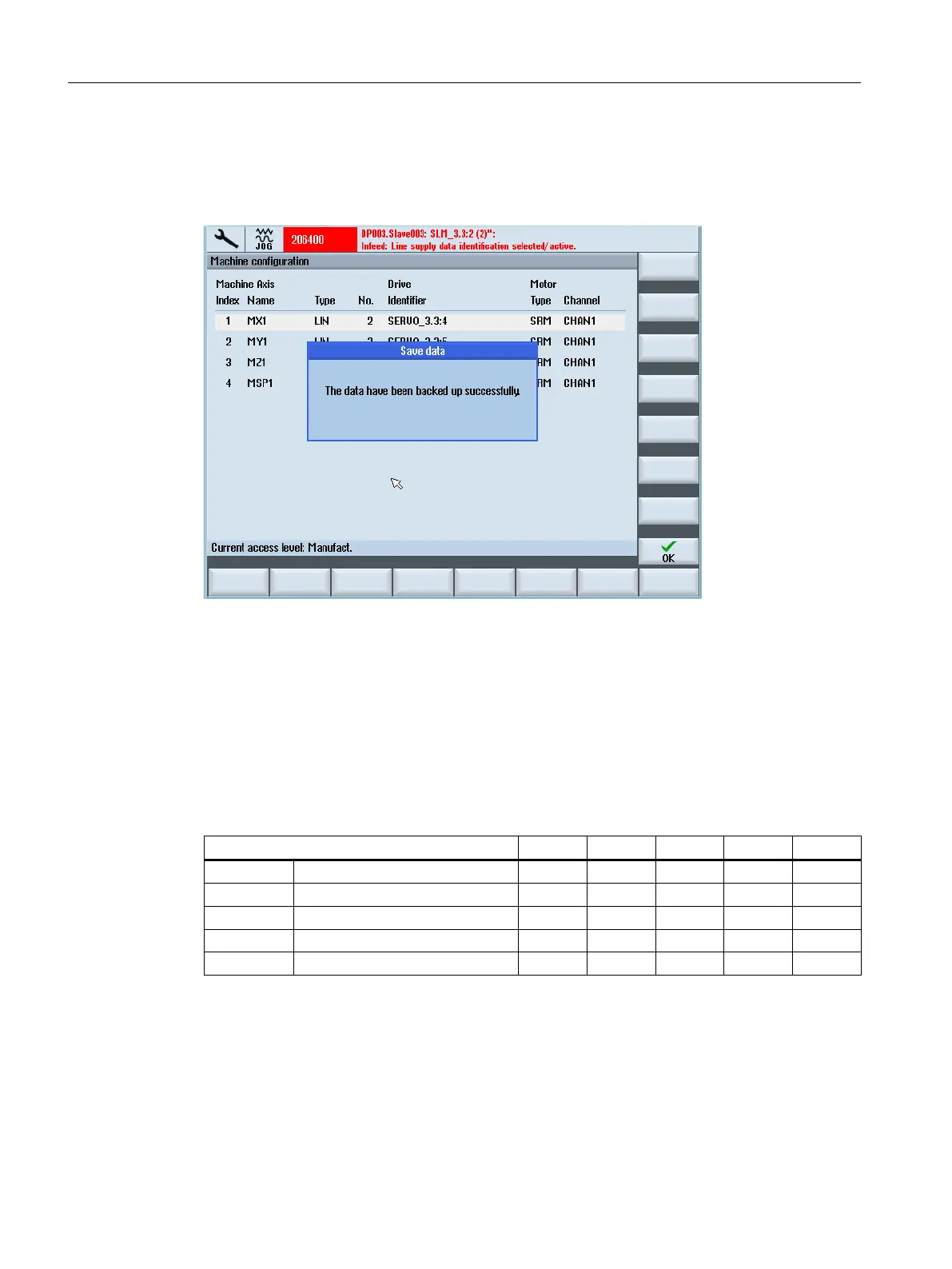

Figure 5-14 Message to back up data
5.2.2 Example: Setting machine data for an axis/spindle
Axis machine data
After the commissioning in the previous example, the following values are set for the axis
machine data:
Axis machine data X Y Z
SP A
MD30200 $MA_NUM_ENCS 1 1 1 1 1
MD30230 $MA_ENC_INPUT_NR 1 1 1 2 1
MD30240 $MA_ENC_TYPE 1 1 1 1 4
MD31020 $MA_ENC_RESOL 2048 2048 2048 1024 512
MD34200 $MA_ENC_REFP_MODE 1 1 1 1 0
Commissioning the drive
5.2 Assigning axes
CNC commissioning
132 Commissioning Manual, 10/2015, 6FC5397-3DP40-5BA3
