5.6.4 Modify data set
Precondition
If more than one encoder is assigned to the drive object (SERVO), additional encoder data
sets (EDS0 ... 2) will be created.
Modify data set

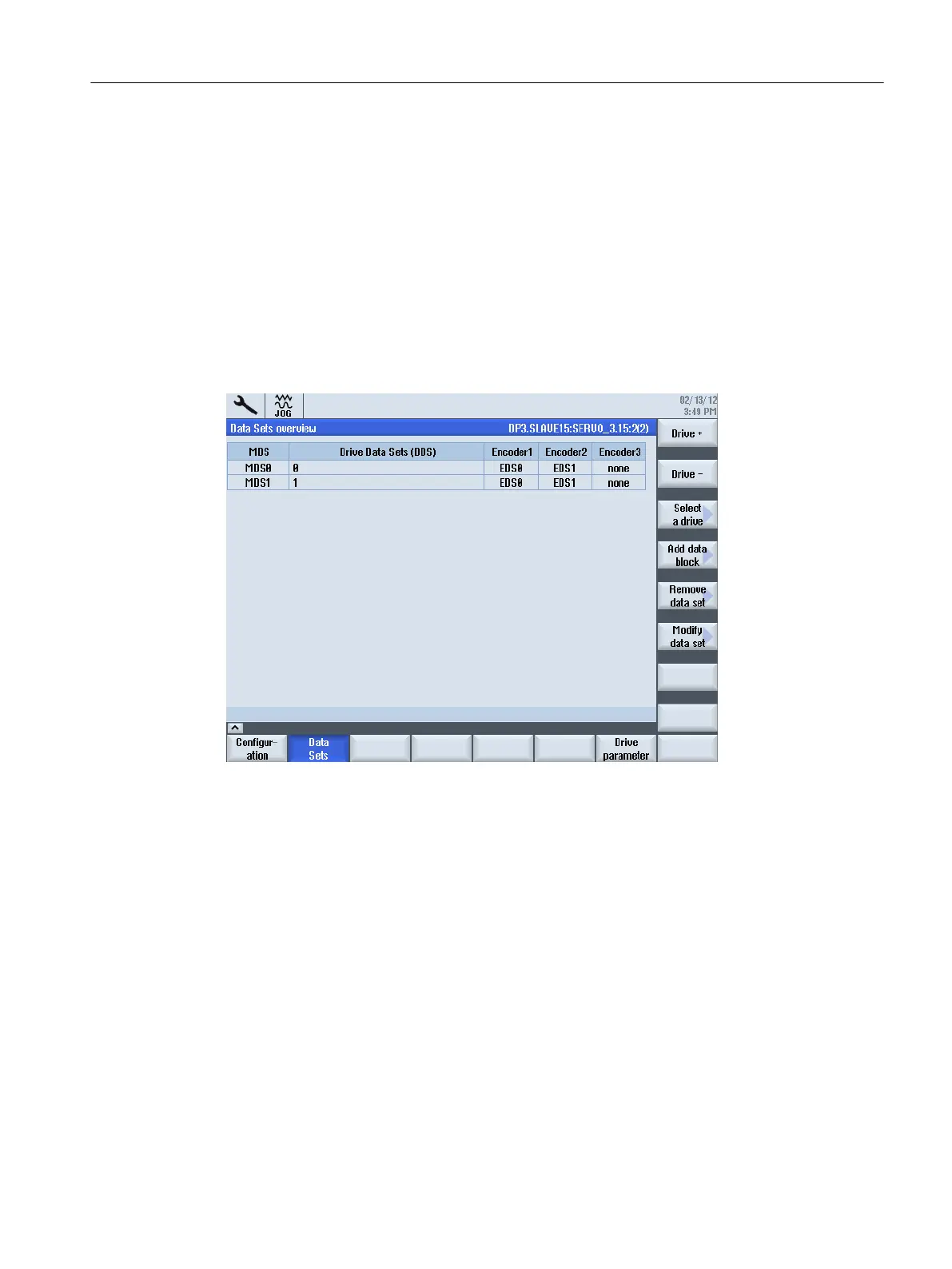

To change the assignment of these encoder data sets for the associated encoder, select the
"Modify data sets" softkey:
This activates the edit function in order to subsequently modify the assignment of EDSes to
the encoders:
Commissioning the drive
5.6 Configuring data sets
CNC commissioning
Commissioning Manual, 10/2015, 6FC5397-3DP40-5BA3 165
