9.7 Application example for turning machine
9.7.1
Example: Turning machine with revolver magazine (MAGKONF_MPF)
Example file
You can find the program for configuring the magazine in the Toolbox.
The program can be read into the control and should be adjusted for the specific machine
concerned.
Configuration
6SLQGOH
0DJD]LQHWXUUHW
7RROKROGHU
&KDQJHSRVLWLRQ
/RDGDQGXQORDG
1 ... 4 Transfer steps

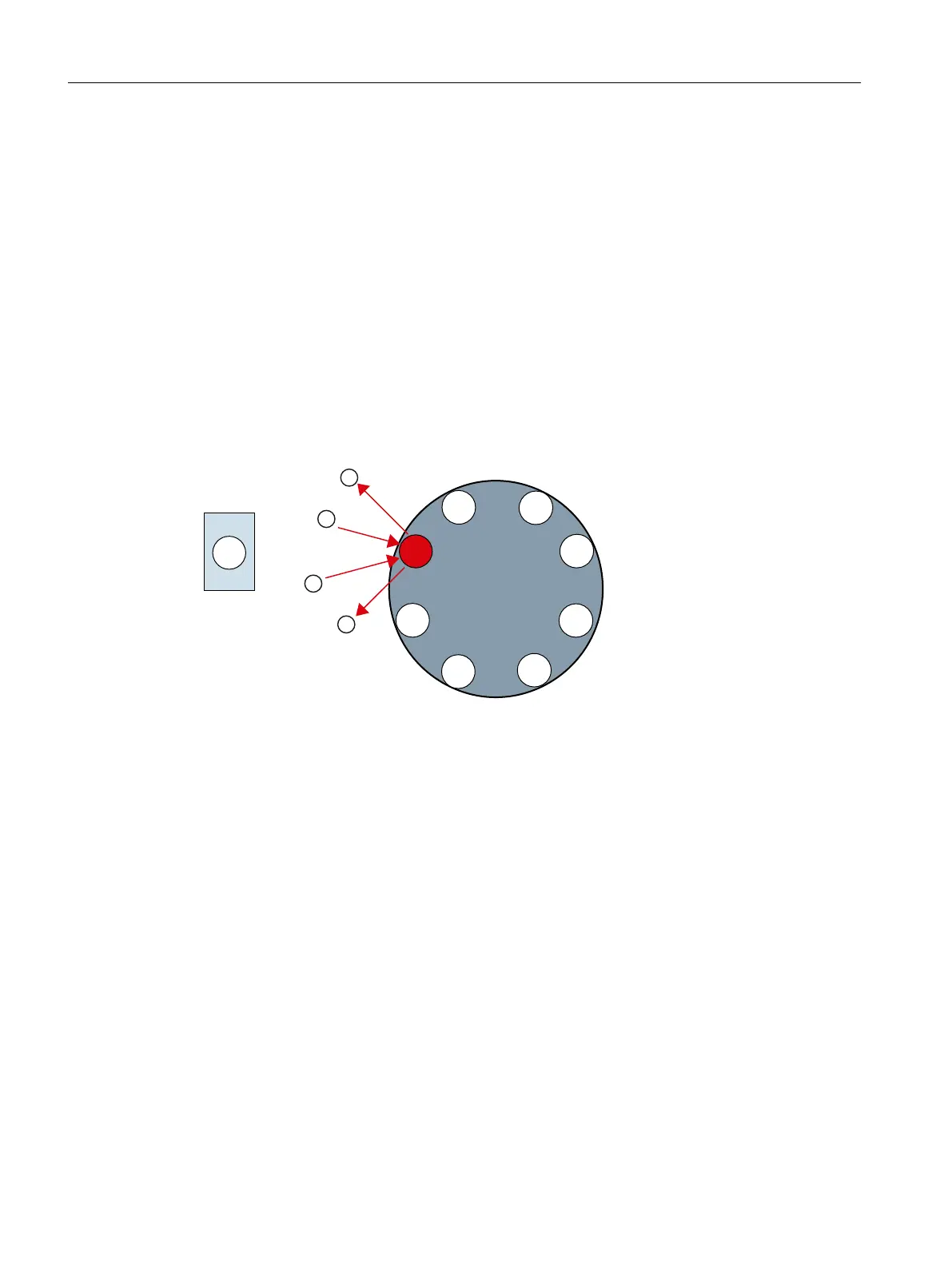

Figure 9-3 Turning machine with revolver magazine
Description of the program
To start with, all
the old magazine definitions and tools are deleted. As the program sequence
continues, all magazines and buffers are newly created and assigned by writing the magazine
parameters.
Search strategies for tools and magazine locations can be defined in N70.
For revolver magazines it is advisable to define all locations as fixed-location coded. For
magazine type 3 N320 $TC_MAP3[NUM_MAG] = 81 (Bit6 = 1) is set.
The chain magazine locations are set up from N430 to N500. Magazine location type = 0 means
that the magazine location can be loaded with tools of different location types.
The buffers are set up from N520 onwards.
From N920, the buffers are assigned to the spindle / tool holder and the magazine.
After the magazine configuration program has finished running, restart the NC using (NCK
reset).
Tool management
9.7 Application example for turning machine
CNC commissioning
304 Commissioning Manual, 10/2015, 6FC5397-3DP40-5BA3
