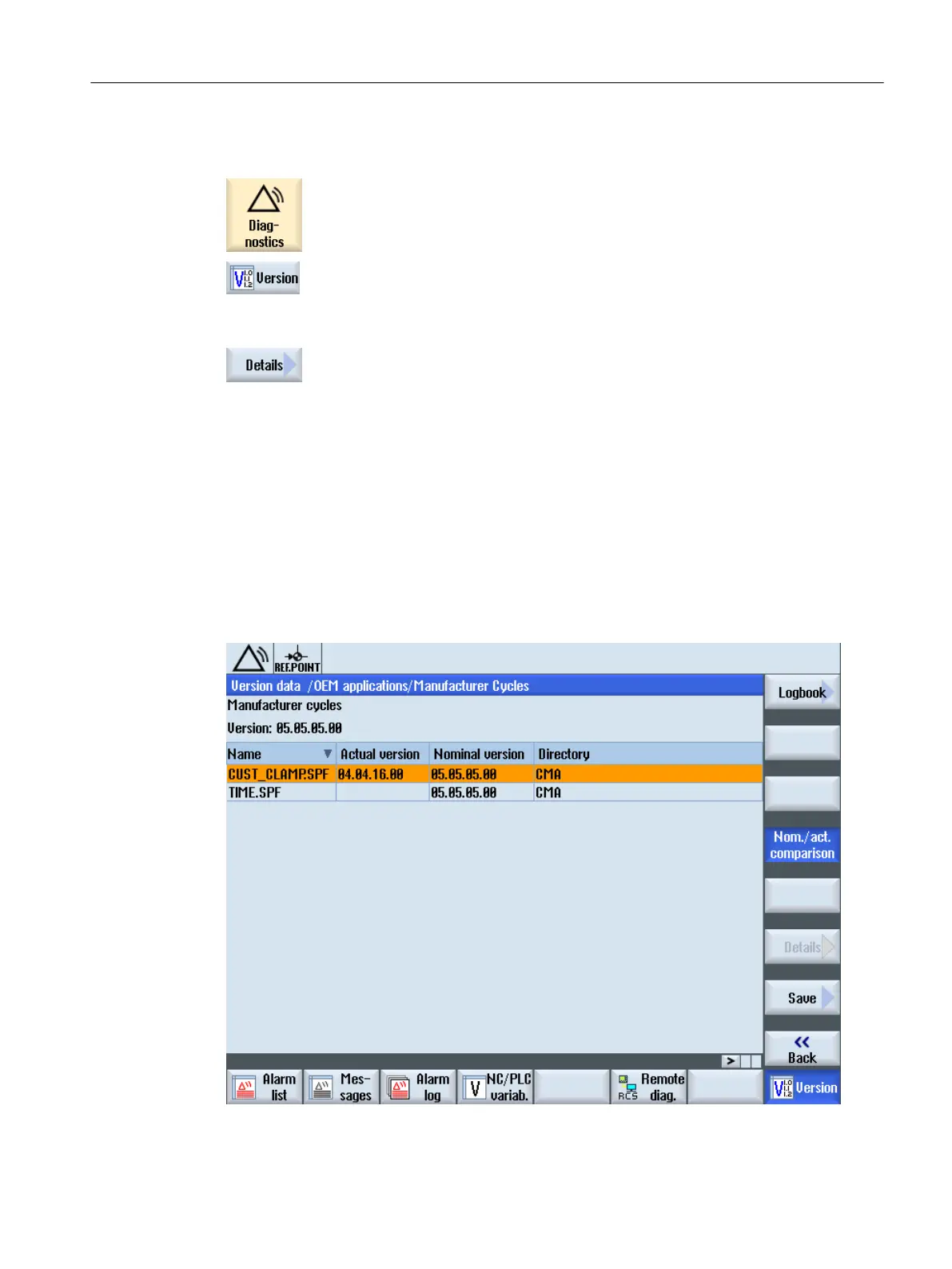

Procedure
1. Select the "Diagnostics" operating area.
2. Press the "Version" softkey.
It takes some time to call the version display. While the version data is
being determined a progress message box and the appropriate text are
displayed in the dialog line.
3. Select the "OEM applications /manufacturer cycles" areas and press the
"Details" softkey.
The "Manufacturer Cycles" window opens.
The "Planned-actual comparison" softkey is selected by default.
7.10.2 Specify cycles version
General
You have the possibility
to compare a required cycles version with the existing cycles version
in the version view.
Configuring cycles
7.10 Compare cycles version
SINUMERIK Operate
Commissioning Manual, 10/2015, 6FC5397-3DP40-5BA3 201
