Within the dialog definition block, various variables that appear as dialog elements in the dialog,
as
well as horizontal and vertical softkeys, are defined first. Different types of actions are then
configured in methods.
4.1.2 Defining dialog properties
Description
The properties of the dialog are defined in the start identifier line of the dialog.

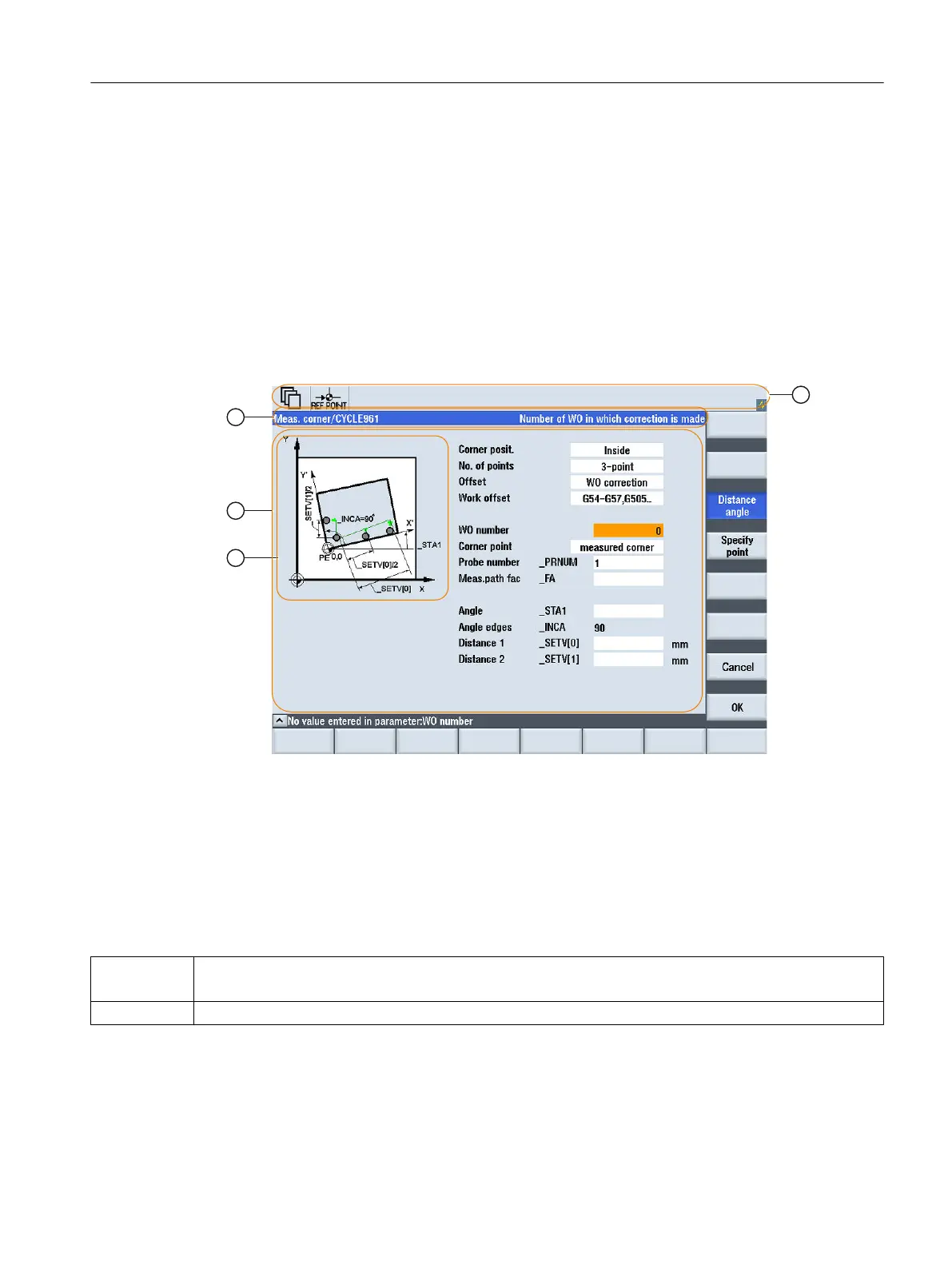

① Machine status display ("header")
② Graphic
③ Dialog
④ Header line of the dialog with header and long text
Figure 4-2 Dialog properties
Programming
Syntax: //M(Identifier/[Header]/[Graphic]/[Dimension]/[System or user variable]/[Graphic position]/[Attributes])
See also Section
Extended configuration syntax (Page 36).
Description: Defines a dialog
Dialogs
4.1 Structure and elements of a dialog
SINUMERIK Integrate Run MyScreens
Programming Manual, 10/2015, 6FC5397-3DP40-5BA3 41
To Next Page
