Procedure
A recording is opened in the "Trace" graphics window.

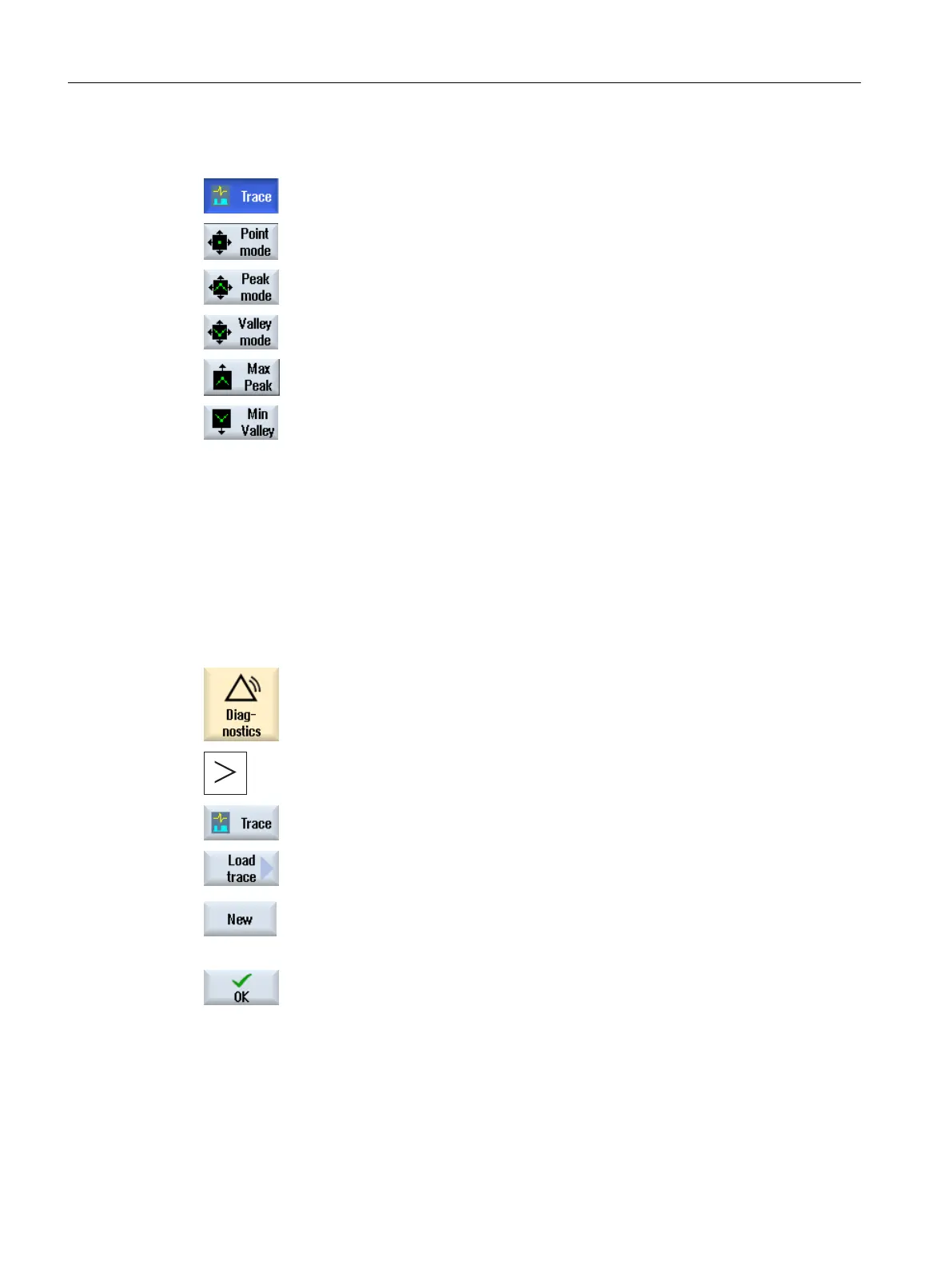

Press the "Point Mode" softkey to continuously move the cursor along the
curve.
Press the "Peak Mode" softkey to position the cursor at the highest value.
Press the "Valley Mode" softkey to position the cursor at the lowest value.
If you press the "Peaks" softkey, the cursor only goes to the peak-peak
values.
If you press the "Minimum" softkey, the cursor only goes to the peak-valley
values.
10.4.5 Trace session files
10.4.5.1 Creating a session file
Procedure
1. Select the "Diagnostics" operating area.
2. Press the menu forward key.
3. Press the "Trace" softkey.
4. Press the "Load trace" and "New" softkeys.
The "New Session" window opens in which the "Session" name is rec‐
ommended. The file format is automatically specified as ".xml".
5. Supplement the file name or enter a new file name.
6. Select a variable type and press the "OK" softkey.
You return to the "Select Variables for Trace: ...." ...." window.
The
name
of
the
session that has been newly created is displayed in the
header.
See also
Variables filter/search (Page 346)
Service and diagnostics
10.4 Trace
SINUMERIK Operate
360 Commissioning Manual, 10/2015, 6FC5397-3DP40-5BA3
