Rockwell Automation MagneMotion MagneMover LITE User Manual

Design Guidelines
Transport System Design
MagneMover LITE User Manual 107
Rockwell Automation Publication MMI-UM002F-EN-P - October 2022
Dual Array (Tandem) Glide Puck
Tandem glide pucks consist of two independent glide pucks that are connected to a mounting
plate by pivots, where each puck has its own magnet array as shown in Figure 3-29. Tandem
pucks are typically used when the material being moved weighs up to 2 kg [4.4 lb]. See
Figure 4-37, Tandem Glide Puck Mechanical Drawing (G5), on page 185 for details.

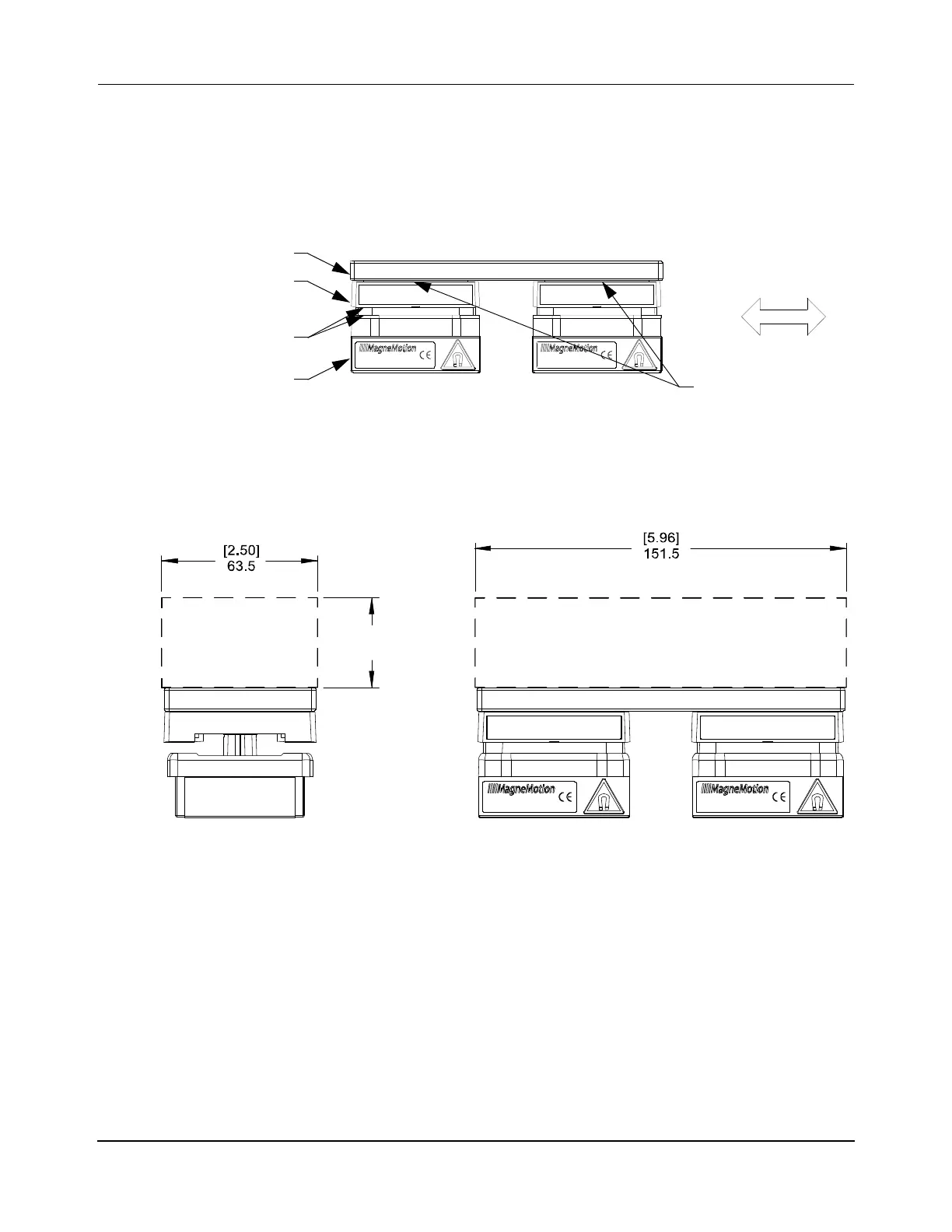

Figure 3-29: Dual Array (Tandem) Array Glide Puck
For proper operation, the payload on the puck must fit within the payload envelope that is
shown in Figure 3-30. When using payloads that exceed the limits that are shown, refer to
Puck Limits on page 124.
Figure 3-30: Dual Array (Tandem) Glide Puck Payload Envelope
For proper operation, the payload on the puck and the velocity of the puck must fit within the
curve that is shown in Figure 3-31.
DIRECTION OF TRAVEL
Puck Pivot
Puck Body
Wear Surfaces
Magnet Array
Mounting Plate
[1.44]
36.5
