Maintenance
Repair
400 MagneMotion
Rockwell Automation Publication MMI-UM002F-EN-P - October 2022
Procedure

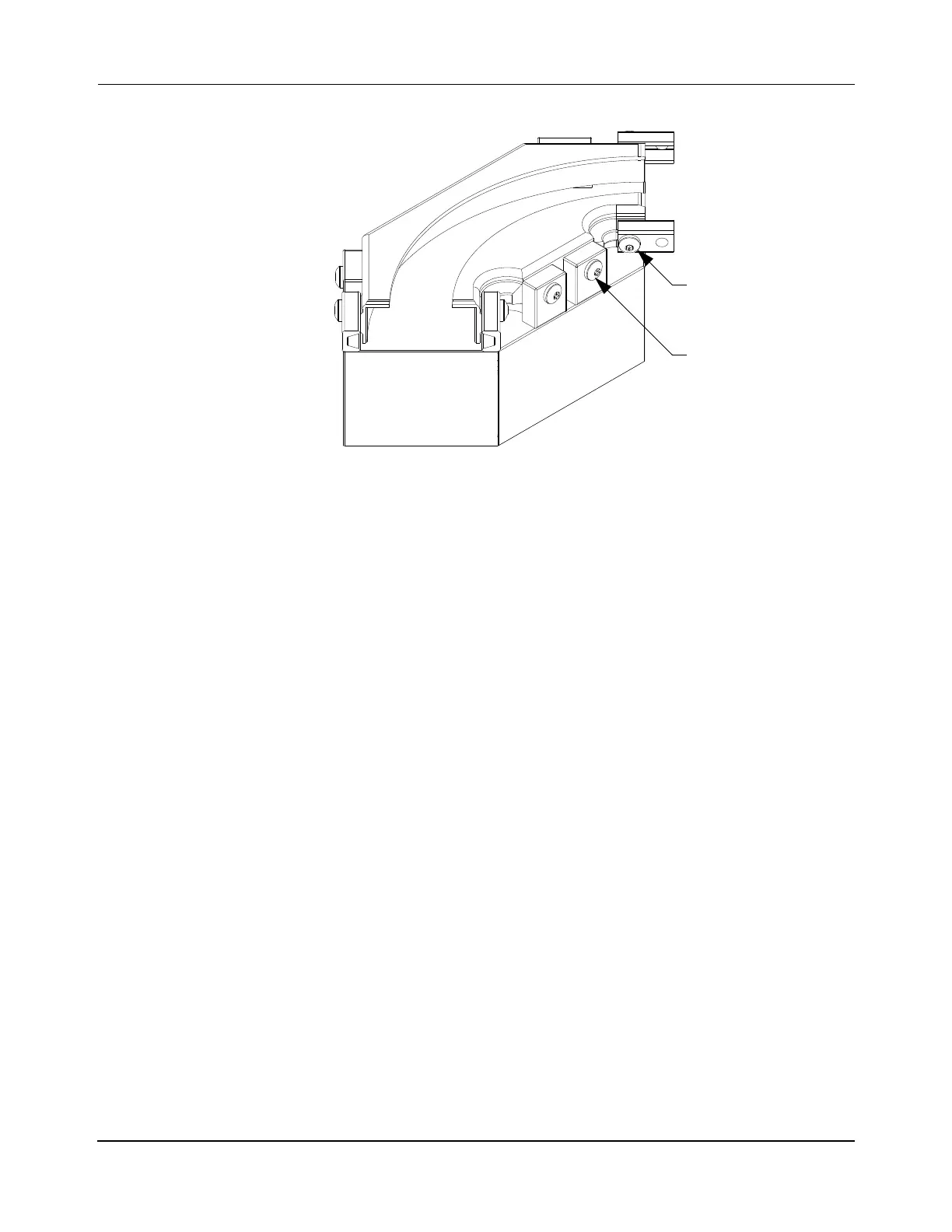

Figure 7-17: Remove Curve Motor Guide Rail
Remove Pucks
1. Stop all motion on the section of the MagneMover LITE transport system where the
puck is being removed.
2. Remove the inside guide rail from a curve motor.
NOTE: DO NOT remove the rails from the switches.
A. Remove the two M6 x 12 mm screws that secure the V-braces to the guide rail.
B. Remove the two M6 x 10 mm screws that secure the guide rail to the motor.
C. Lift the guide rail off the motor.
3. Remove pucks by sliding them from the adjacent motors into the open curve.
NOTE: Once pucks are removed from the transport system, they must be stored in
their original packaging or wrapped in bubble-wrap to help protect the pucks
and to minimize any safety risks.
4. Replace the guide rail by reversing Step 2.
A. When replacing Stainless Steel rails, apply Loctite 243 to the M6 x 10 mm rail
mounting screws and the M6 x 12 mm V-brace screws.
B. Install and tighten the M6 x 10 mm guide rail mounting screws and the M6 x
12 mm V-brace screws to 3.4 N•m [30 in•lb].
The Loctite must cure for 2 hours at 22° C [72° F] before using the transport
system.
5. Return the MM LITE transport system to normal operation.
V brace Screw
Guide Rail
(2X)
Mounting Screws
(2X)
To Next Page
