Rockwell Automation MagneMotion MagneMover LITE User Manual

Installation
Option Installation
MagneMover LITE User Manual 297
Rockwell Automation Publication MMI-UM002F-EN-P - October 2022

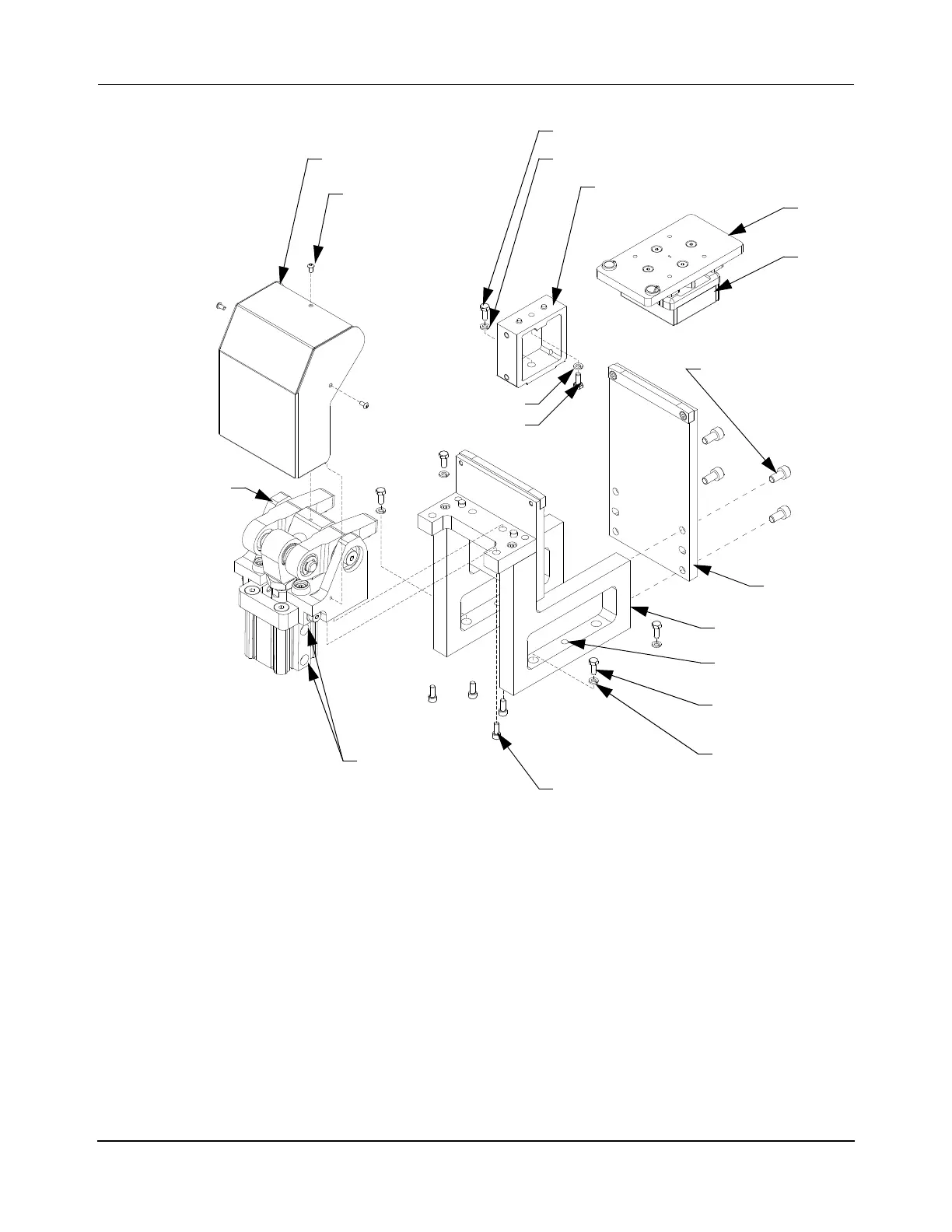

Figure 5-44: MagneMover LITE Precision Locator Option, Alternate
Install Pallets and Pucks
Install the pucks with pallets on the system before installing the motors to allow easy installa-
tion.
1. Mount the pallet on the custom puck if not already installed (see Replace Wear Sur-
faces on Pallet on page 448).
2. Install the puck with the pallet on the system (see Replace Pucks on page 399 for the
preferred method to add or remove pucks).
NOTE: Make sure that the orientation of the puck locates the pallet correctly at the
precision locator station.
Back Plate
Pallet
Precision
Locator
Puck
Adjustable Motor Mount
M6 x 20 mm Bolt
M6 Lock Washer
M8 x 20 mm Bolt
M8 Lock Washer
M6 x 25 mm Screw
(4X)
M6 x 12 mm Screw
(2X per Rib)
Pneumatic
Connections
Stand Rib
Cover
M3 x 6 mm Screw
(2 + 1X per Locator)
M8 x 30 mm Bolt
M8 Lock Washer
(2X per Rib)
(2X per Rib)
Locating Pin
