Specifications and Site Requirements
Pneumatic Specifications
228 MagneMotion
Rockwell Automation Publication MMI-UM002F-EN-P - October 2022
Precision Locator
2.03 cc
3
/sec @ 0.41 mPa [0.0043 scfm @ 60 psi] per cycle @ 21° C [70° F] @ sea level,
based on configuration and operating mode. See Precision Locator Option on page 199 for the
mechanical drawing.

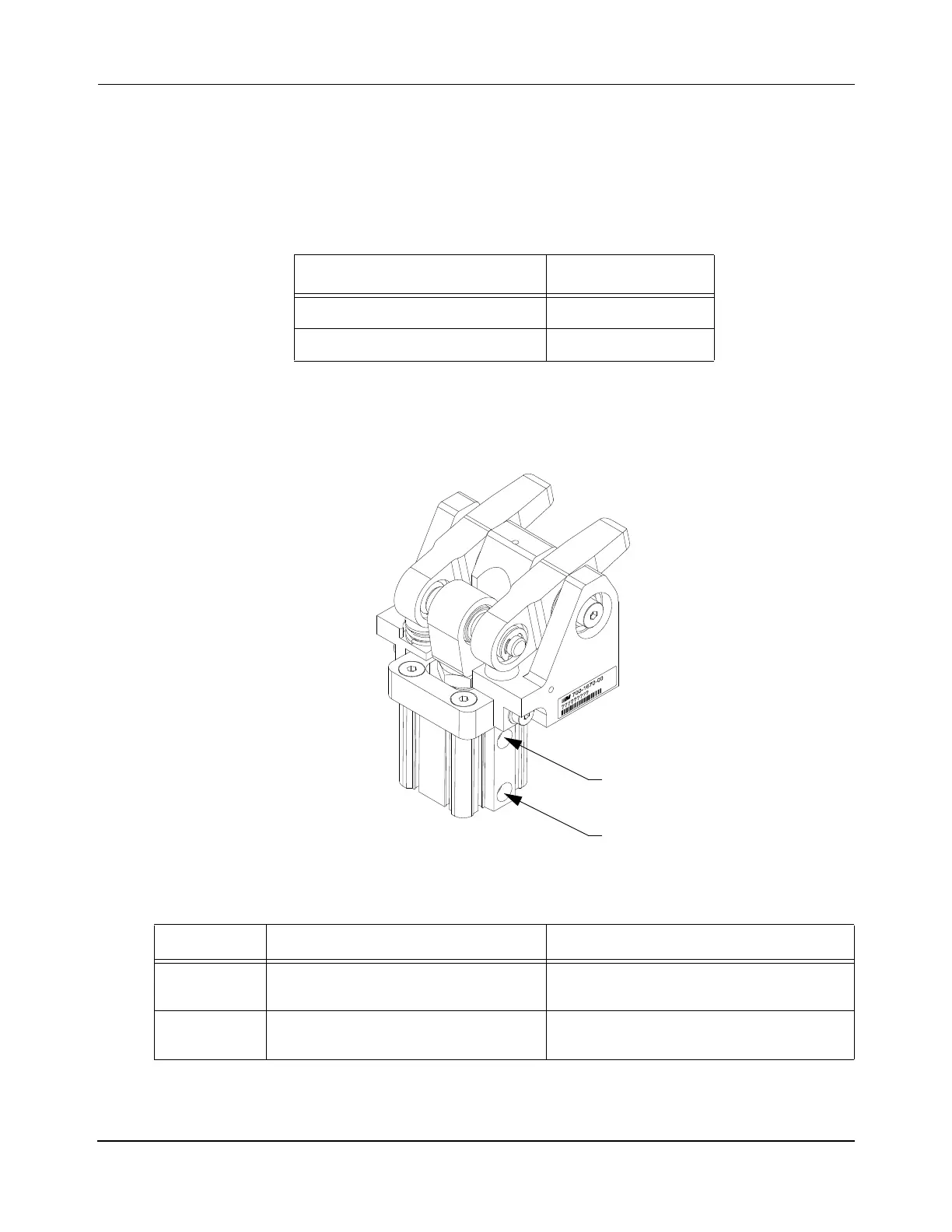

Figure 4-67: Precision Locator Pneumatic Connections
Table 4-39: Precision Locator Pneumatic Requirements
37.5 mm Arms
*
* For maximum service life, always actuate these devices from
arm up to arm down in no less than 100 ms (accomplished by
adjusting the flow controls on the user-supplied pneumatic
valve for the locator).
Vertical Clamping Stroke 8 mm [0.315 in]
Vertical Clamping Force 330 N [74 lbf]
Table 4-40: Precision Locator Connections
Label Description Connector Type
— Close Rc 1/8 in Thread
(typically for 6 mm OD tube fitting)
— Open Rc 1/8 in Thread
(typically for 6 mm OD tube fitting)
