Rockwell Automation MagneMotion MagneMover LITE User Manual

Installation
Option Installation
MagneMover LITE User Manual 289
Rockwell Automation Publication MMI-UM002F-EN-P - October 2022
Curved Rail to Curved Rail Joints
See Figure 5-36 when aligning and securing all curved rail to curved rail joints.

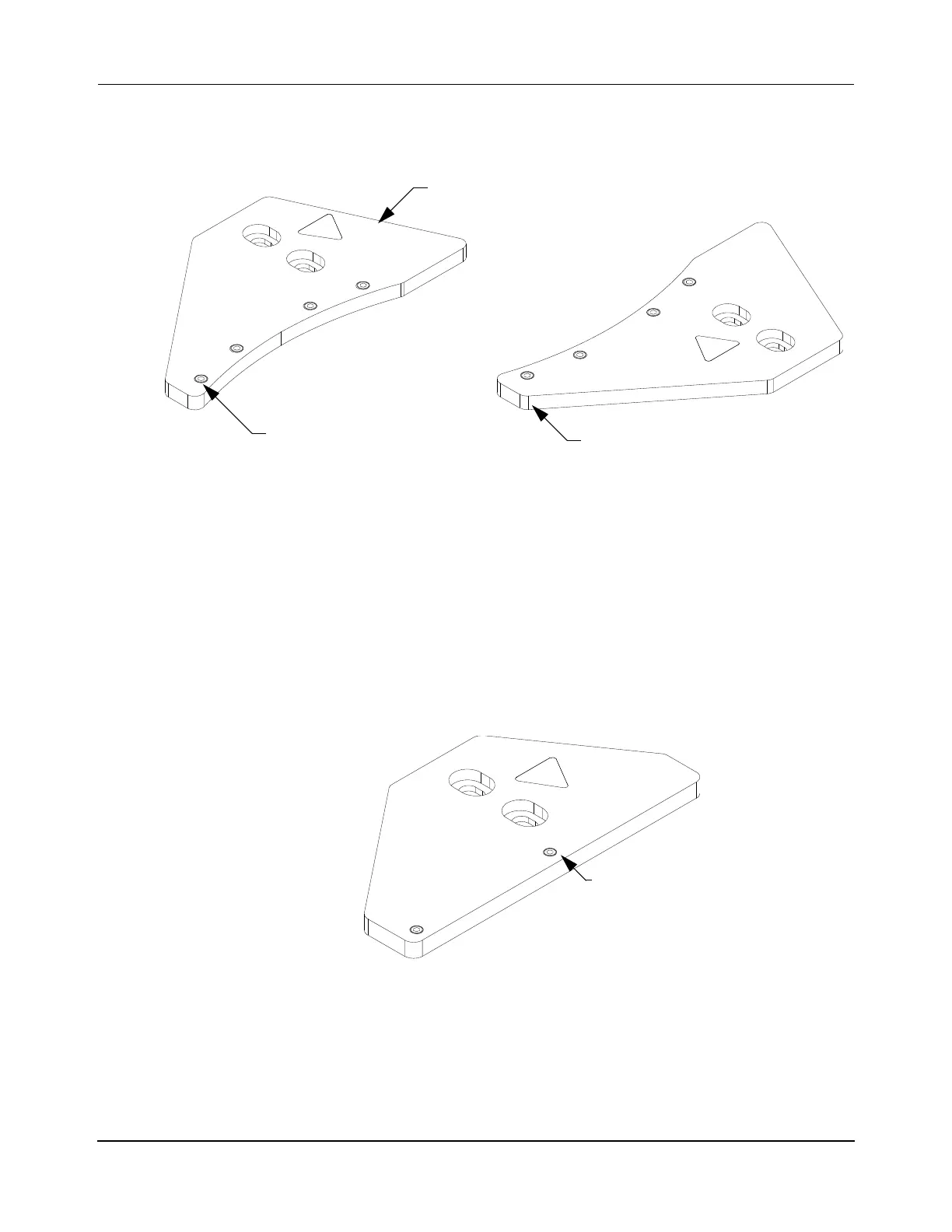

Figure 5-36: Tightening Sequence, Curve to Curve Precision Rail Spine Plate
1. Use fingers to align the ends of the curved rails.
2. Once the rails are aligned, tighten each screw to 1.8 N•m [16 in•lb] following the
sequence shown in Figure 5-36.
3. Repeat Step 1 through Step 2 for all curved rail to curved rail joints in the system.
Straight Rail to Straight Rail Joints
See Figure 5-37 when aligning and securing all straight rail to straight rail joints.
Figure 5-37: Tightening Sequence, Straight to Straight Precision Rail Spine Plate
1. Use fingers to align the ends of the straight rails.
2. Once the rails are aligned, tighten each screw to 1.8 N•m [16 in•lb] following the
sequence shown in Figure 5-37.
3. Repeat Step 1 through Step 2 for all curved rail to curved rail joints in the system.
1
1
2
2
3
3
4
4
Curve to Curve, Left Joint
Curve to Curve, Right Joint
M5 Screw
(4X)
1
2
M5 Screw
(2X)
