Maintenance
Repair
448 MagneMotion
Rockwell Automation Publication MMI-UM002F-EN-P - October 2022
Replace Wear Surfaces on Pallet
The various wear surfaces on the pallet that is used with the precision locator must be replaced
once they have become worn due to extended use (typically greater than 16,000 km travel or
two years, whichever occurs first). This procedure provides instructions to replace worn wear
surfaces on the pallet or to replace a pallet if it has become damaged.
Required Tools and Equipment
• Loctite 243, Thread locker Anaerobic Adhesive, Blue.
• Screw, Flat Head, M4 X 8 mm Long, A4 SS, per DIN 7991 (2X).
• Screw, Flat Head, M4 X 20 mm Long, A4 SS, per DIN 7991 (2X).
• Glue Dot, Adhesive, Hi-Tack, Semi-Perm, Lo-profile, 0.250.
• Preload Spacer, Compliant, Puck Center Plate, ML.

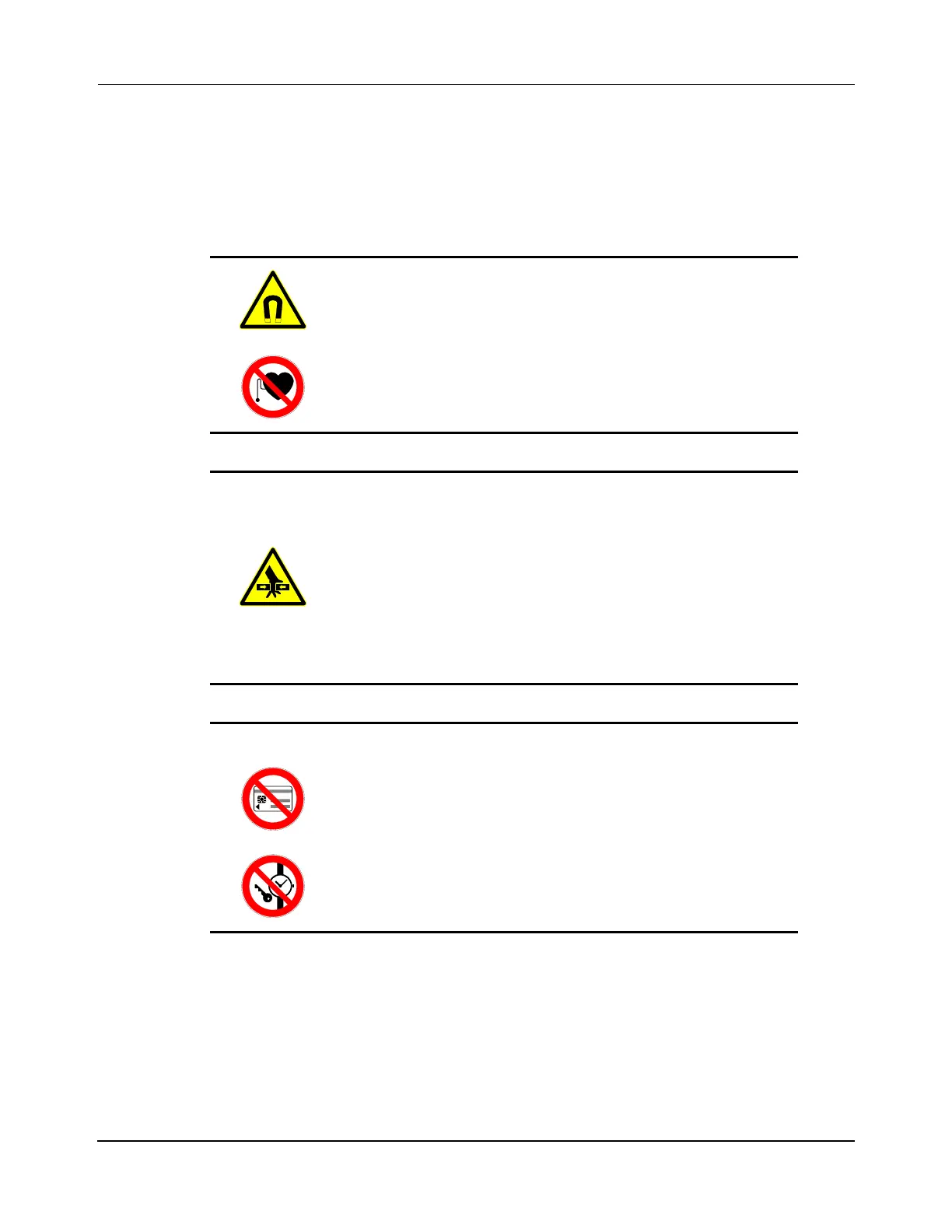

MAGNETIC FIELD HAZARD: Strong magnets in use.
To avoid severe injury, people with pacemakers and other
medical electronic implants must stay away from the magnet
array on the vehicles (pucks).
PINCH/CRUSH HAZARD: Strong magnets in use.
To avoid injury from strong magnetic attractive forces:
• Handle only one vehicle (puck) or magnet array at a time.
• Do not place any body parts (for example, fingers)
between a magnet array and any ferrous material or
another magnet array.
• Vehicles (pucks) and magnet arrays not being used must
be secured individually in isolated packaging.
NOTICE Strong magnets in use.
To avoid damage to watches, instruments, electronics, and
magnetic media, keep metal tools, metal objects, magnetic
media (for example, memory disks/chips, credit cards, and
tapes) and electronics away from the magnet arrays.
