Precision Rail Support Post Assembly
Precision rail support posts are assembled before shipment. For custom installations, the sup-
port post assembly consists of a support post and spine plate (700-1622-2x). For support post
assemblies that are used with the MM LITE stand system (see Stand System on page 180), the
support post is attached to a post mount (700-1622-0x). Figure 4-44 identifies the components
that are used to construct the support post assembly.
NOTE: Different spine plates are available to support the varying rail to rail interconnection
and interface requirements.

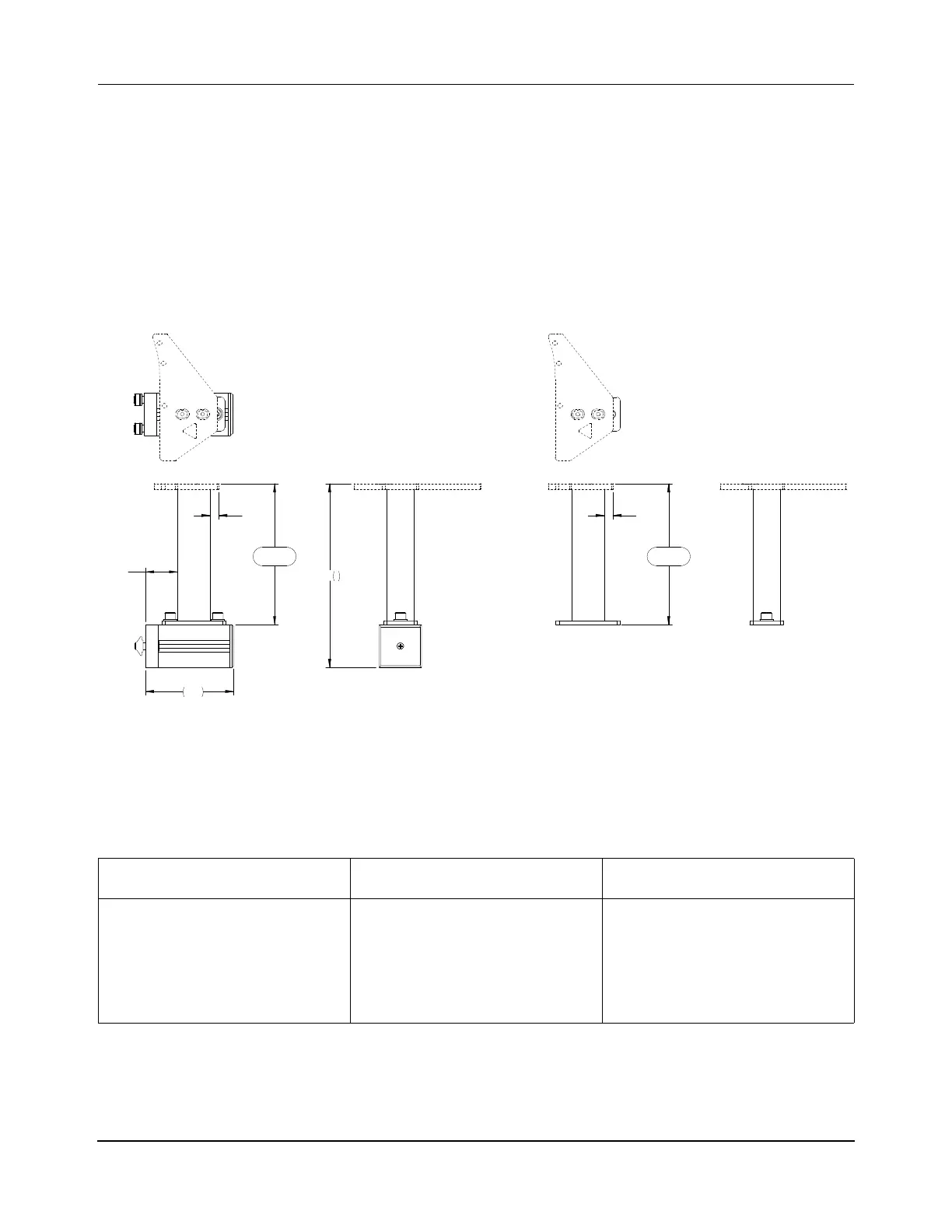

Figure 4-44: Precision Rail Support Post Assembly
Exposed Materials, Plate
Spine Plate Beam Mount Machine Base
• MIC 6 AL, Powder coated.
• 304 Stainless Steel.
• 6060 T66 AL, Anodized.
• ABS V0 Composite, Black.
• 18-8 Stainless Steel.
• A2 Stainless Steel.
• Galvanized Steel.
• 6061-T6 AL, Powder coated.
• Steel, Zinc plate.
• 304 Stainless Steel.
217
10.3
167.1
166.6
38.0
104
10.3
167.1
166.6
All Dimensions in Millimeters
700-1622-0X 700-1622-2X
Machine BaseBeam Mount with Machine Base
