Maintenance
Preventive Maintenance
364 MagneMotion
Rockwell Automation Publication MMI-UM002F-EN-P - October 2022
Procedure
1. Stop all motion on the section of the MagneMover LITE transport system where the
vehicle is located.
2. Locate the lubricator under the precision rail vehicle.
The lubricators can be mounted between the concentric bearings or the eccentric bear-
ings as shown in Figure 7-7. Some systems can have lubricators that are mounted in
both locations on the same vehicle. The felt end of the lubricator is always pointed
inwards toward the rail with the refill access portal at the opposite end of the reservoir.
See Figure 7-8 for an illustration of the lubricator housing.

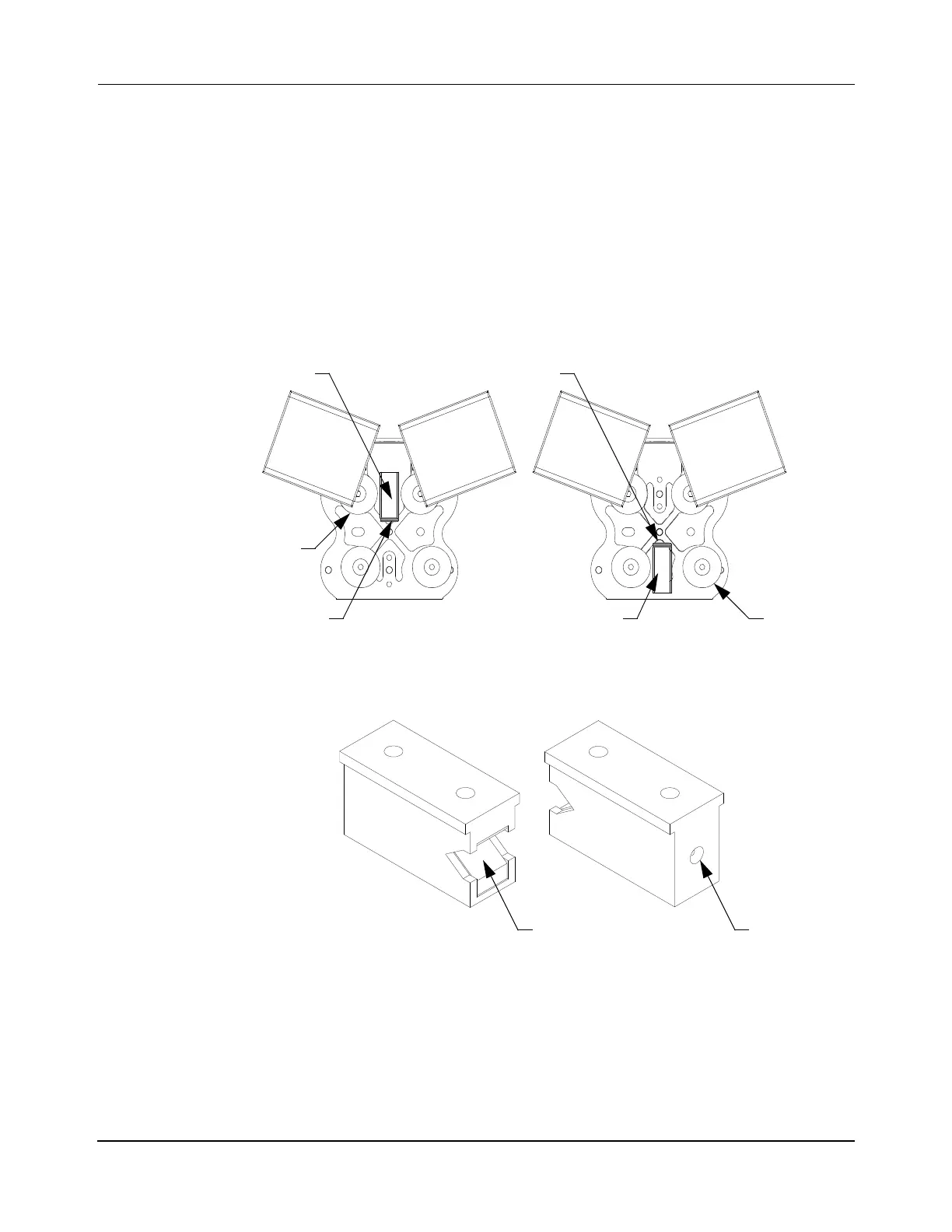

Figure 7-7: Precision Rail Vehicle Lubricator Location
Figure 7-8: Precision Rail Vehicle Lubricator (Front and Rear)
3. Insert the tip of the oil filled syringe into the refill hole on the lubricator.
NOTE: On single array vehicles, if the lubricator is located between the concentric
bearings (on the magnet array side of the vehicle), use the lubrication portal
that is shown in Figure 7-9 to access the oil refill hole on the lubricator.
Felt Applicator
Concentric
Bearings
Lubricator
Eccentric
Bearings
Lubricator Felt Applicator
Oil RefillFelt Applicator
