Rockwell Automation MagneMotion MagneMover LITE User Manual

Specifications and Site Requirements
Electrical Specifications
210 MagneMotion
Rockwell Automation Publication MMI-UM002F-EN-P - October 2022

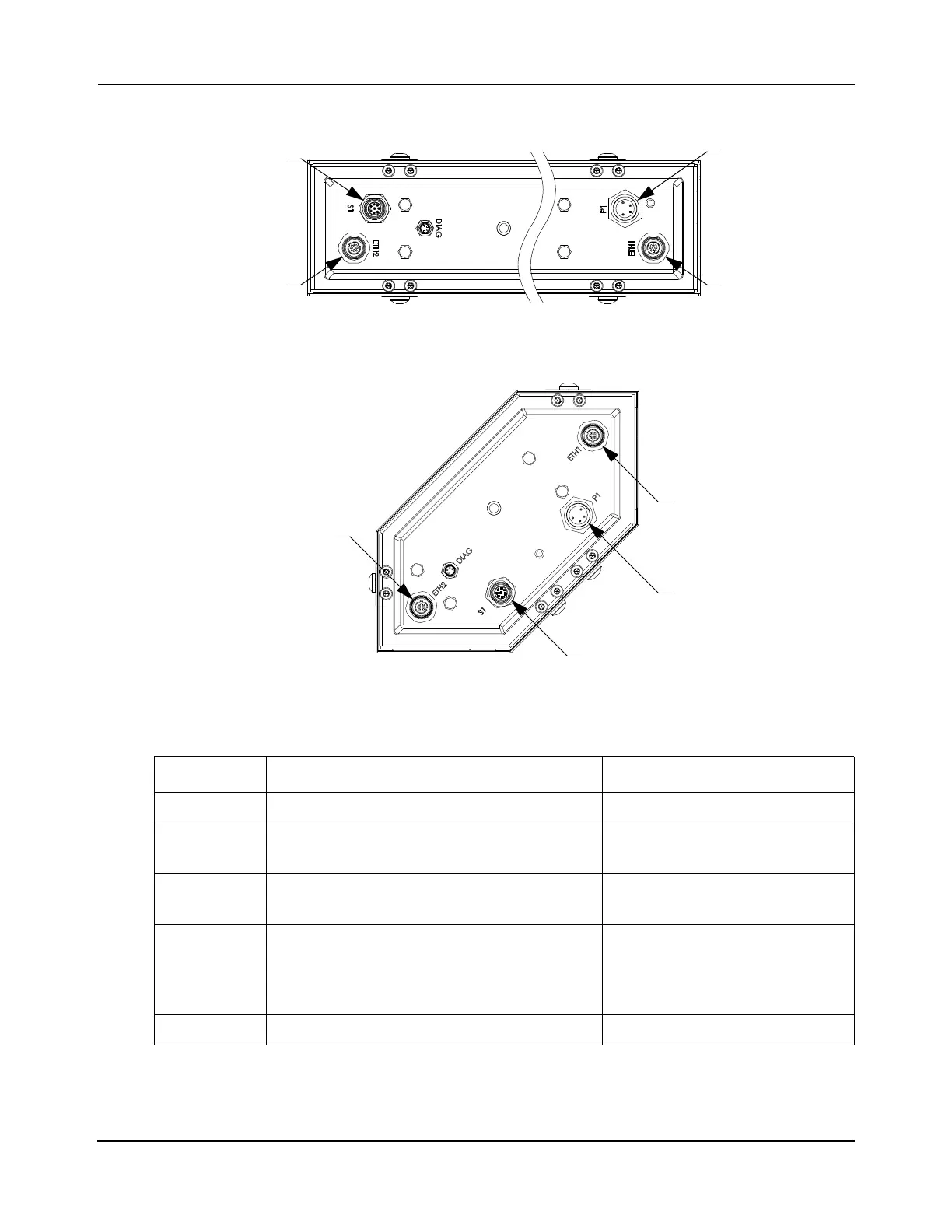

Figure 4-57: MagneMover LITE Ethernet Motor Electrical Connections
Table 4-14: MagneMover LITE Ethernet Motor Electrical Connections
Label Description Connector Type
DIAG Diagnostics – Factory Use Only M8 Nano-Mizer, 4-Pin, Plug
ETH1 Ethernet Communication
(10/100/1000 Base-Tx)
M12 Eurofast
®
, FKFDD, Socket
ETH2 Ethernet Communication
(10/100/1000 Base-Tx)
M12 Eurofast, FKFDD, Socket
P1 Power +36V DC ±10%
1000 mm motor – 1.5 A typical 5.0 A max
250 mm motor – 0.4 A typical, 1.2 A
max
Curve motor – 0.4 A typical, 1.2 A max
Mini-Conn-X, 4-Pin, Plug
S1
*
* The Sync Option Connector is only present if the Synchronization option is installed. If the Sync Option con-
nector is not installed, a low-profile cap is installed to cover the connector mounting hole.
External Synchronization Micro-Mizer, 8-Pin, Plug
Power
Ethernet
Sync Option
Power
Sync Option
Straight Motor Sections
Curve Motor Sections
Bottom View
Bottom View
Ethernet
Connector
Connector
Connector
Connector
Connector
Ethernet
Connector
Connector
Ethernet
Connector
