Rockwell Automation MagneMotion MagneMover LITE User Manual

Design Guidelines
Transport System Layout
MagneMover LITE User Manual 79
Rockwell Automation Publication MMI-UM002F-EN-P - October 2022
Additional Connections
The remaining components and connections must be defined on the MM LITE transport sys-
tem layout. The components include power supplies for the motors and network switches for
communication with the node controllers and host controller (see Figure 3-5 for an example).
If node controllers with digital I/O are being used, E-stop buttons, interlocks, and light stacks
can be configured and their locations identified.
Power Supplies – DC power supplies providing +36V DC are required for powering the
MagneMover LITE motors. See Table 4-9 on page 206 for power supply sizing.
Network Switches – Ethernet switches provide signal routing from the host controller to the
node controllers, between node controllers, and when using Ethernet motors to the motors. All
node controllers must be on the same local area network subnet.
Host Controller – User-supplied controller that runs the application for monitoring and con-
trol of the transport system.
Power Wiring – Identifies the power connections between motors that are connected to the
same power supply.

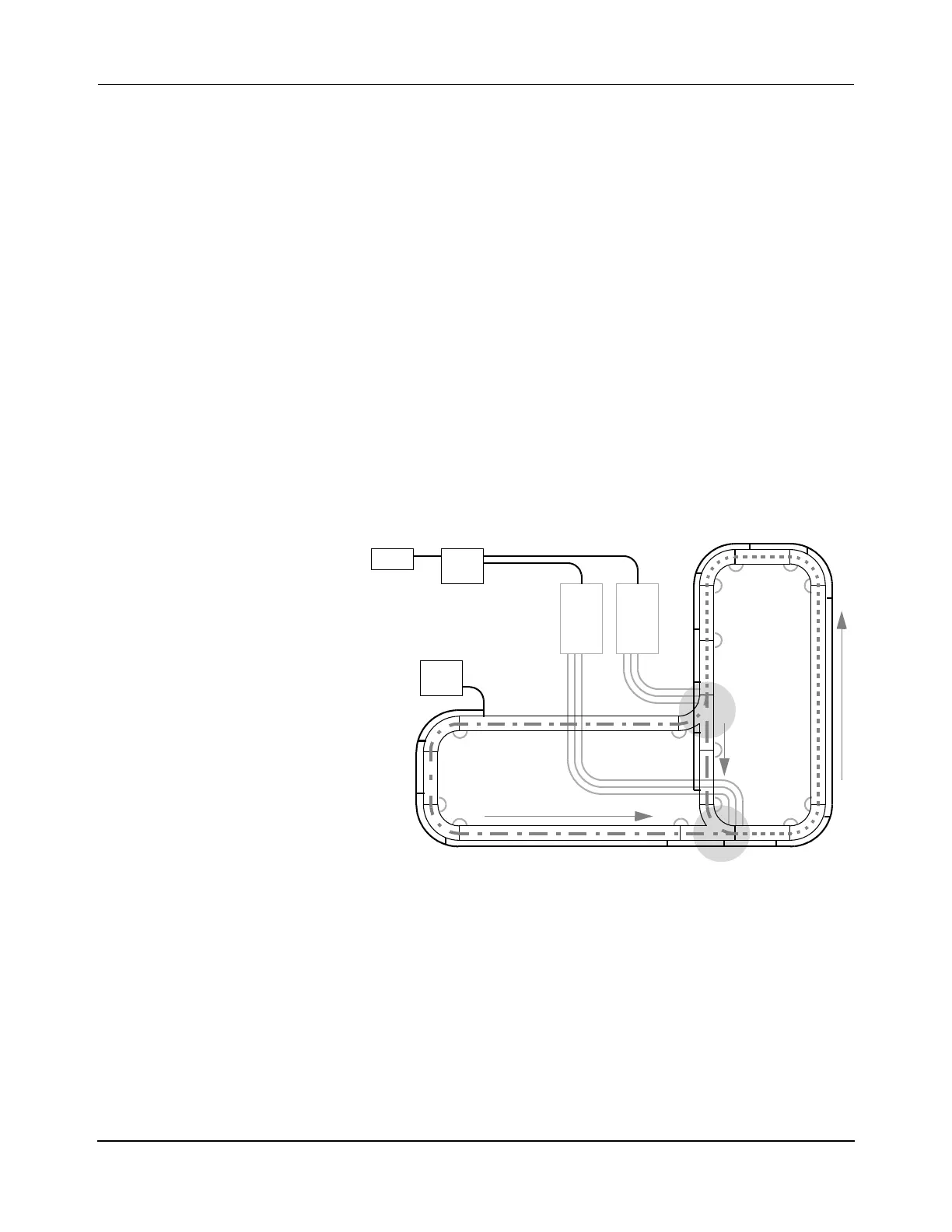

Figure 3-5: Sample MM LITE Transport System Layout Showing Additional Connections
3 1000 mm motors
6 250 mm motors
5 90° curve motors
2 Right switches
Qty Description
3 Paths
NC1 NC2
SW1
PS1
Host
&
HLC
2 Nodes
1 Diverge
1 Merge
NOTE: Arrows indicate direction of forward motion.
Diverge
Merge
2 Node Controller LITEs (NCn)
1 Network Switch (SW1)
1 Power Supply (PS1)
