Specifications and Site Requirements
Electrical Specifications
MagneMover LITE User Manual 225
Rockwell Automation Publication MMI-UM002F-EN-P - October 2022
Precision Locator
There is no electrical power requirement for the precision locator, see Pneumatic Specifica-
tions for the pneumatic power requirements. See Precision Locator Option on page 199 for
the mechanical drawing. The electrical connections that are shown in Figure 4-65 are only
available if the sensor option is installed.

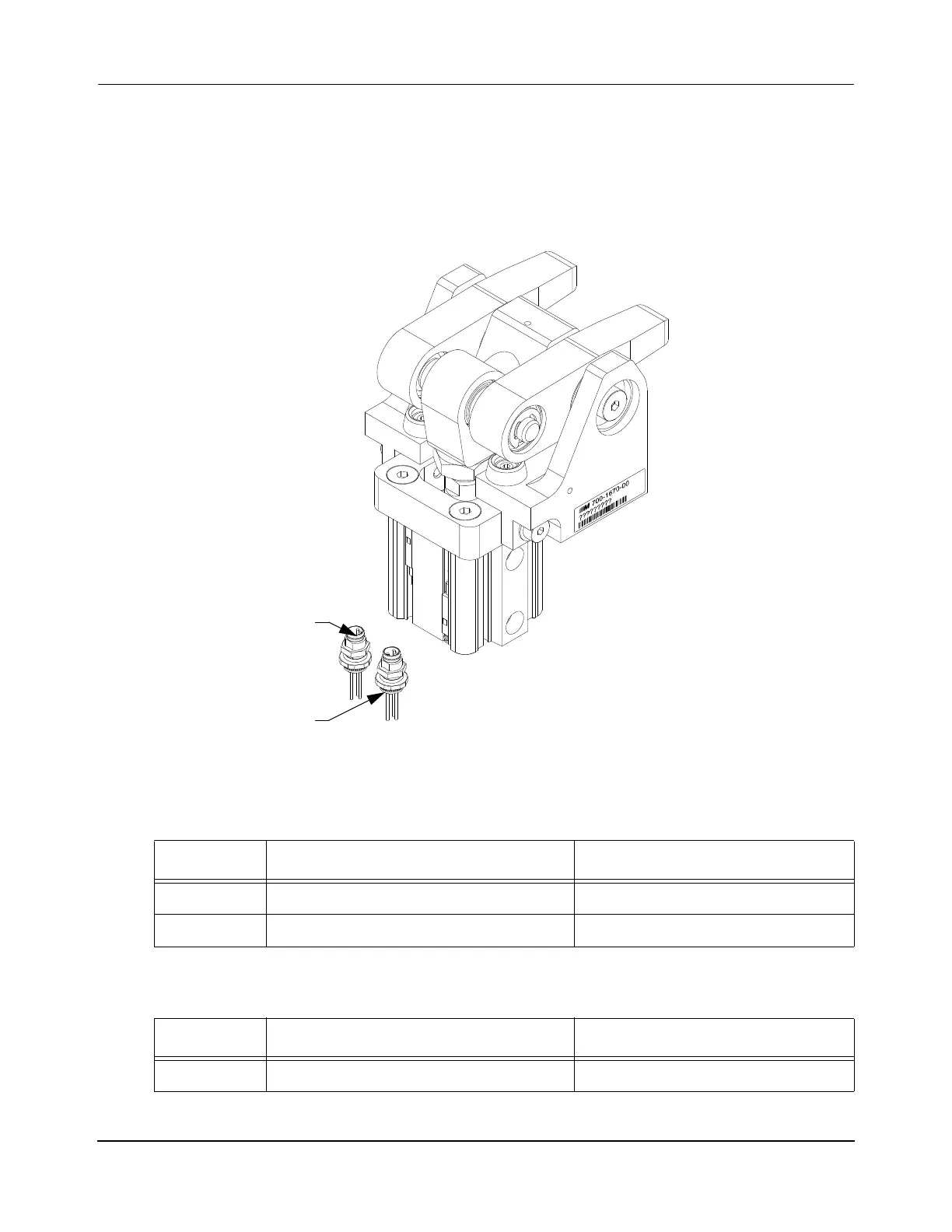

Figure 4-65: Precision Locator Electrical Connections
Table 4-35: Precision Locator Connections
Label Description Connector Type
— Cylinder Up Sensor Connection M8 Locking, 3-Pin, Plug
— Cylinder Down Sensor Connection M8 Locking, 3-Pin, Plug
Table 4-36: Precision Locator Sensor Indicators
Label Description Indicator Type
— ON – Indicates that the sensor is active. Red Light
Cylinder Up
Cylinder Down
Sensor Connection
Sensor Connection
