Rockwell Automation MagneMotion MagneMover LITE User Manual

Maintenance
Repair
424 MagneMotion
Rockwell Automation Publication MMI-UM002F-EN-P - October 2022

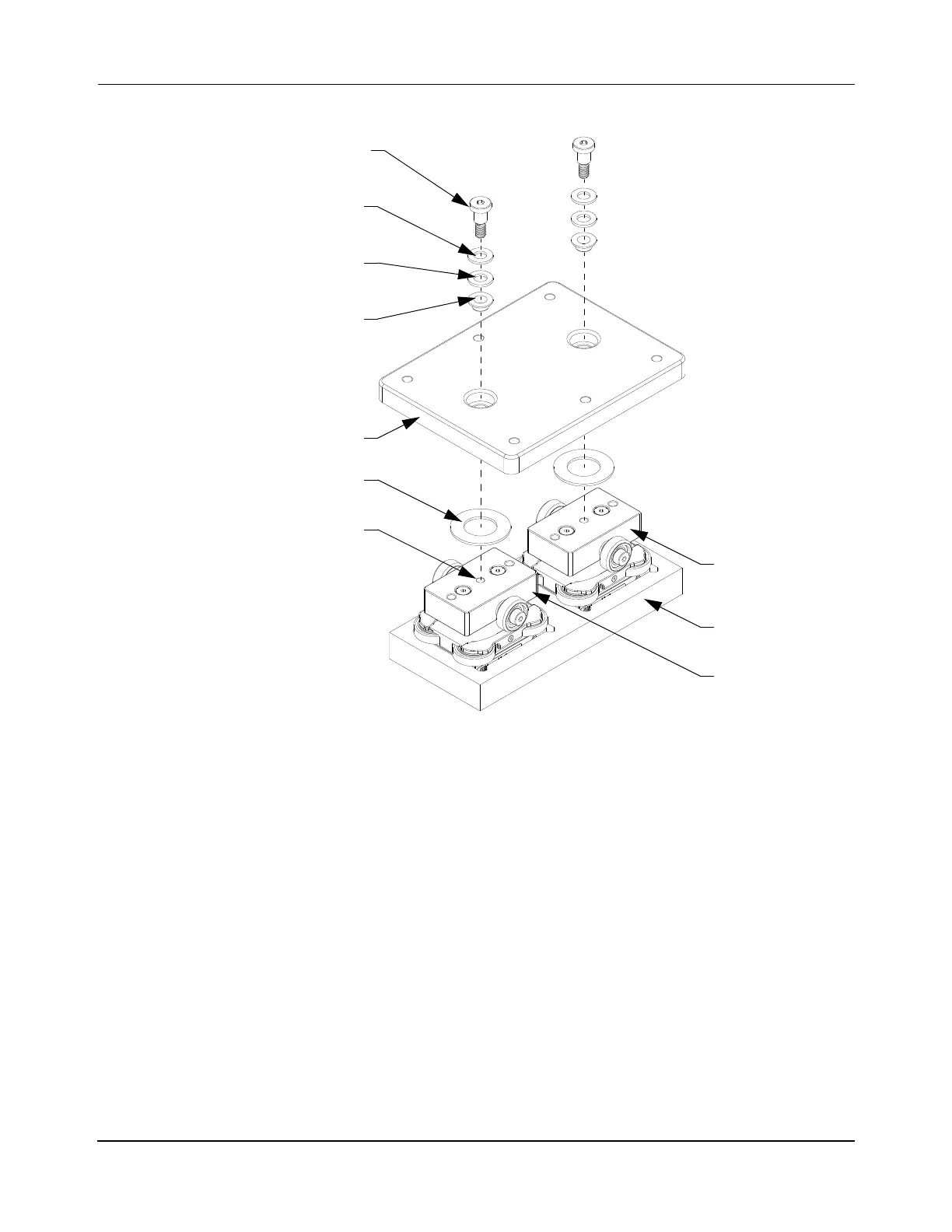

Figure 7-31: Attach Tandem Wheeled Puck Linkage Plate Assembly
9. Remove the Tandem Wheeled Puck Assembly from the fixture and reinstall on the
MM LITE transport system (see Replace Pucks on page 399).
If the tandem puck is not being reinstalled on the transport system, store it in its origi-
nal packaging or wrapped in bubble-wrap to help protect the puck and to minimize any
safety risks.
Linkage Plate
Installation
Fixture
Wheeled Puck
Wheeled Puck
M6 Shoulder Screw
(2X)
Thrust Washer
Thrust Washer
Flange Bearing
Elastomer Washer
(2X)
(2X)
(2X)
(2X)
2-3 Drops Loctite
(typical)
