Maintenance
Repair
MagneMover LITE User Manual 443
Rockwell Automation Publication MMI-UM002F-EN-P - October 2022

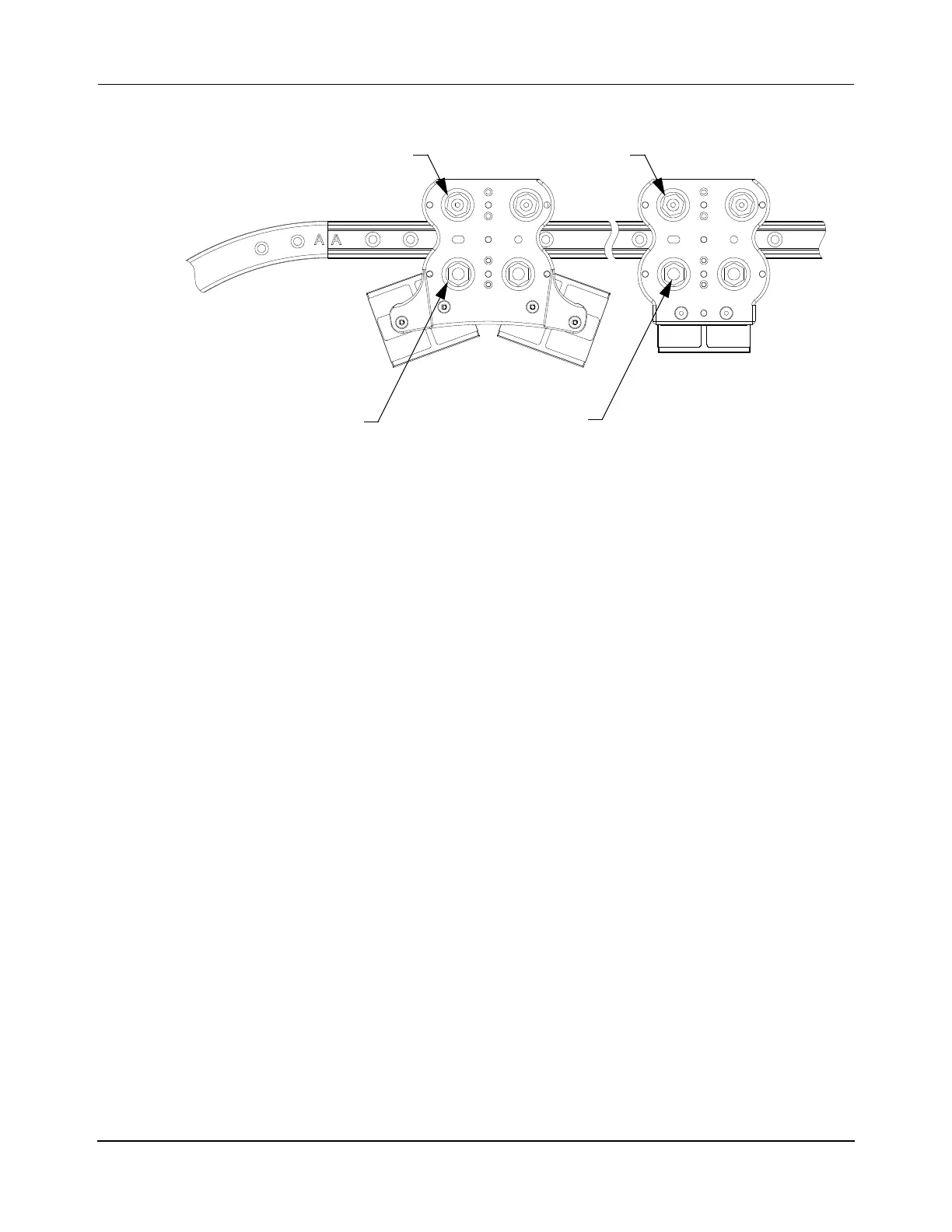

Figure 7-44: Precision Rail Vehicle Bearing Locations
Required Tools and Equipment
• Open-end wrench, 13 mm, thin.
• Socket wrench, 13 mm.
• Torque wrench (0.9…26 N•m [8…230 in•lb] range) with the following socket:
•13mm Hex.
• Loctite 290, Thread locker, Wicking Grade, Green.
Concentric
Motor Side
Eccentric
Stand Side
of Rail
Bearings
Eccentric
Bearings
Bearings
Concentric
Bearings
of Rail
Single Array VehicleDual Array Vehicle
