Precision Locator Option
Actuator Assembly

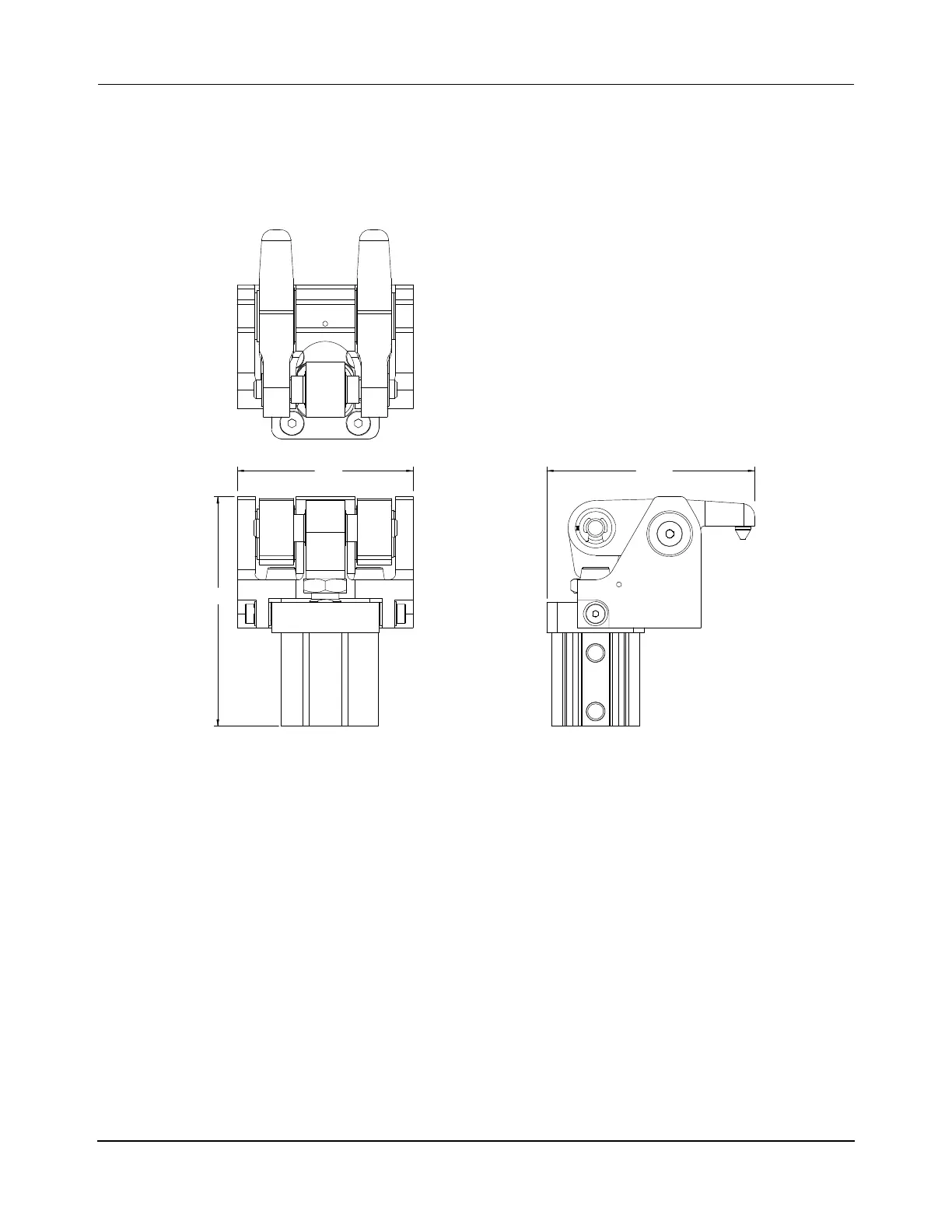

Figure 4-51: Precision Locator Actuator Mechanical Drawing
NOTE: See Precision Locator on page 225 for the electrical specifications.
See Precision Locator on page 228 for the pneumatic specifications.
Exposed Materials
• 6061-T6 AL, Anodized per MIL-A-8625F, Type II, Class 1, Clear.
• 6061-T6 AL, Anodized per MIL-A-8625F, Type II, Class 2, Blue.
• 18-8 (A2) Hardened Stainless Steel with Thin Dense Chrome plating.
• UHMW, WHITE
• SBR Rubber.
• IGUS iglide® L280.
• Music Wire.
106.5
90.0
128.6
All Dimensions in Millimeters [inches]Weight: 0.9 kg [2.0 lb]
Locator – 700-1670-XX
Cover – 700-1677-XX
