Rockwell Automation MagneMotion MagneMover LITE User Manual

Installation
Transport System Installation
270 MagneMotion
Rockwell Automation Publication MMI-UM002F-EN-P - October 2022
Ethernet Motor Communication

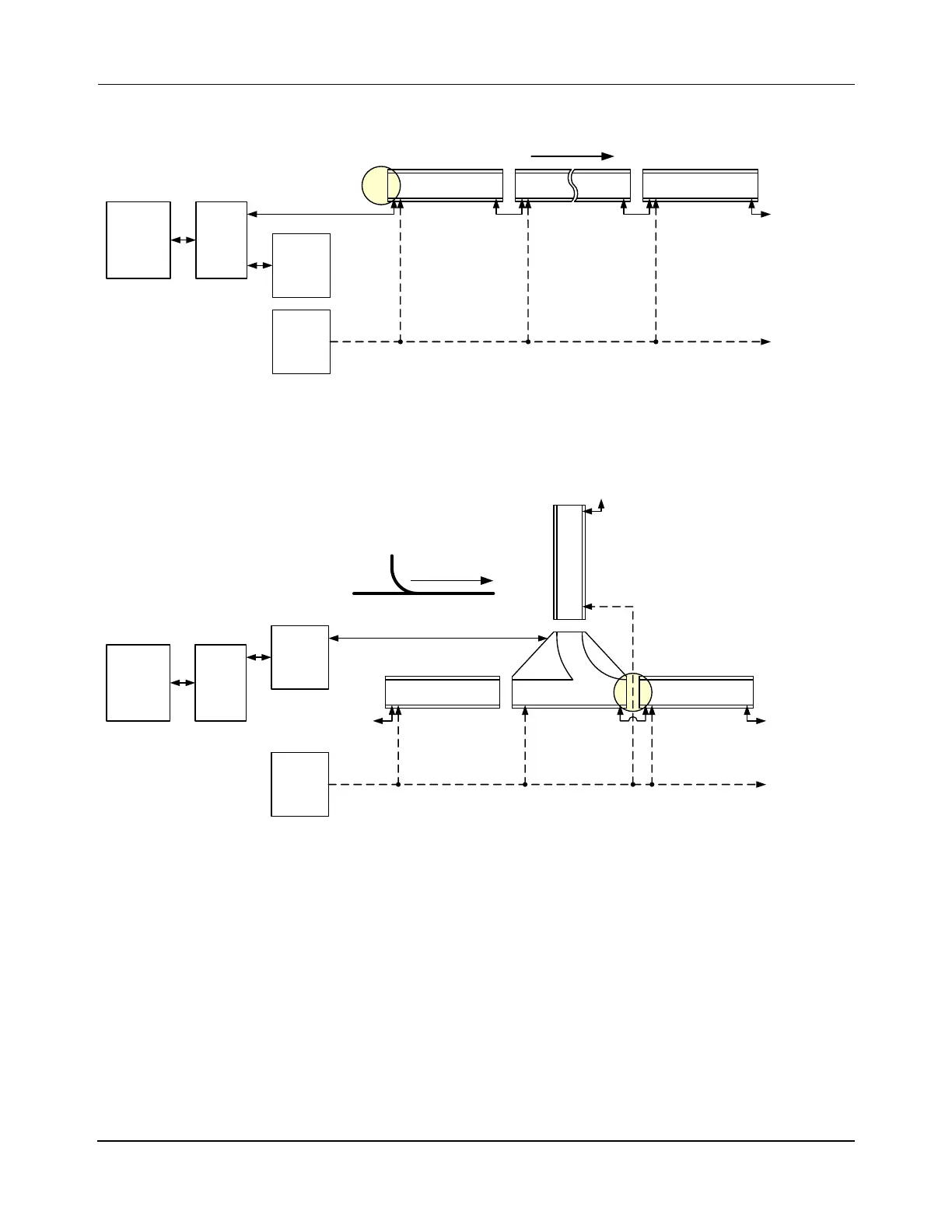

Figure 5-21: Simplified Representation of Ethernet Motor Connections
Figure 5-22: Simplified Representation of Ethernet Merge Switch Connections
Installing Ethernet Motor Communication Cables
The MagneMover LITE Ethernet motors can use different network style connection schemes
depending on the application. See Ethernet Motor Communication Recommendations on
page 90 and Ethernet Motor Connection Examples on page 91. The following procedure pro-
vides steps for connecting the motors as shown in the simplified wiring diagrams in
Figure 5-21 and Figure 5-22.
See Figure 4-57 on page 210 and Figure 4-59 on page 215 for the communication connection
locations on the motors and switches. See the Node Controller Hardware User Manual,
MMI-UM013, for the communication connection locations on the node controllers. See
Figure 5-23 for a detailed example.
Simple
Node
Host
Controller
Ethernet
Switch
HLC &
Node
Controller
Power
Supply
Power
To Next
Motor in Path
Upstream Downstream
To Next
Motor in Path
Ethernet
Downstream
Ethernet Motor
(Straight or Curve)
Ethernet Motor
(Straight or Curve)
Merge
Node
Host
Controller
Ethernet
Switch
Power
Ethernet
Ethernet Switch
Upstream Downstream
From Previous
Motor in Path
Upstream
To Next Motor
in Path
From Previous
Motor in Path
Switch Configuration
Downstream
To Next
Motor in Path
Ethernet Motor
(Straight or Curve)
Ethernet Motor
(Straight or Curve)
Ethernet Motor
(Straight or Curve)
HLC &
Node
Controller
Power
Supply
