Motor Power Cables
The MM LITE power supply kit is supplied with motor power cables, which provide power to
the MM LITE motors and switches. Contact Technical Support for additional or replacement
cables (see Rockwell Automation Support on page 486).

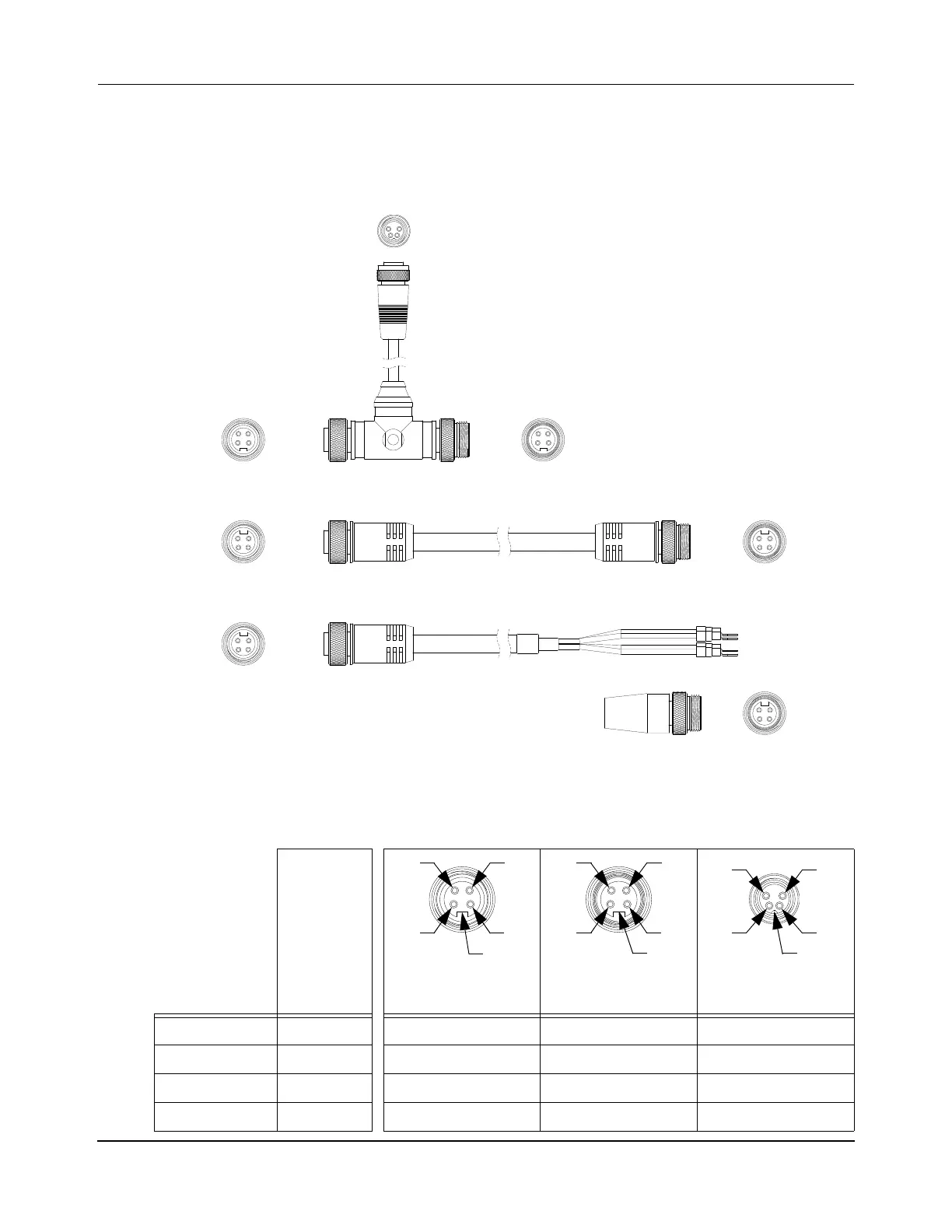

Figure 4-61: MM LITE DC Power Cables
Table 4-30: DC Power Cable Pinouts
Individual
Terminals
Mini-Mizer,
4-Pin, Socket
Mini-Mizer,
4-Pin, Plug
Mini-Conn-X,
4-Pin, Socket
V+ Propulsion Black111
V+ Logic White222
V- Return Red333
RTN Green444
Mini-Mizer
Socket
Mini-Mizer
Socket
Mini-Mizer
Mini-Conn X
Mini-Mizer
Socket
Plug
Socket
Mini-Mizer
Plug
110-0014-00
110-0016-XX
110-0015-XX
Mini-Mizer
Plug
110-0107-00
4
3
1
2
Keyway
1
2
4
3
Key
4
3
1
2
Keyway
