Specifications and Site Requirements
Mechanical Specifications
150 MagneMotion
Rockwell Automation Publication MMI-UM002F-EN-P - October 2022

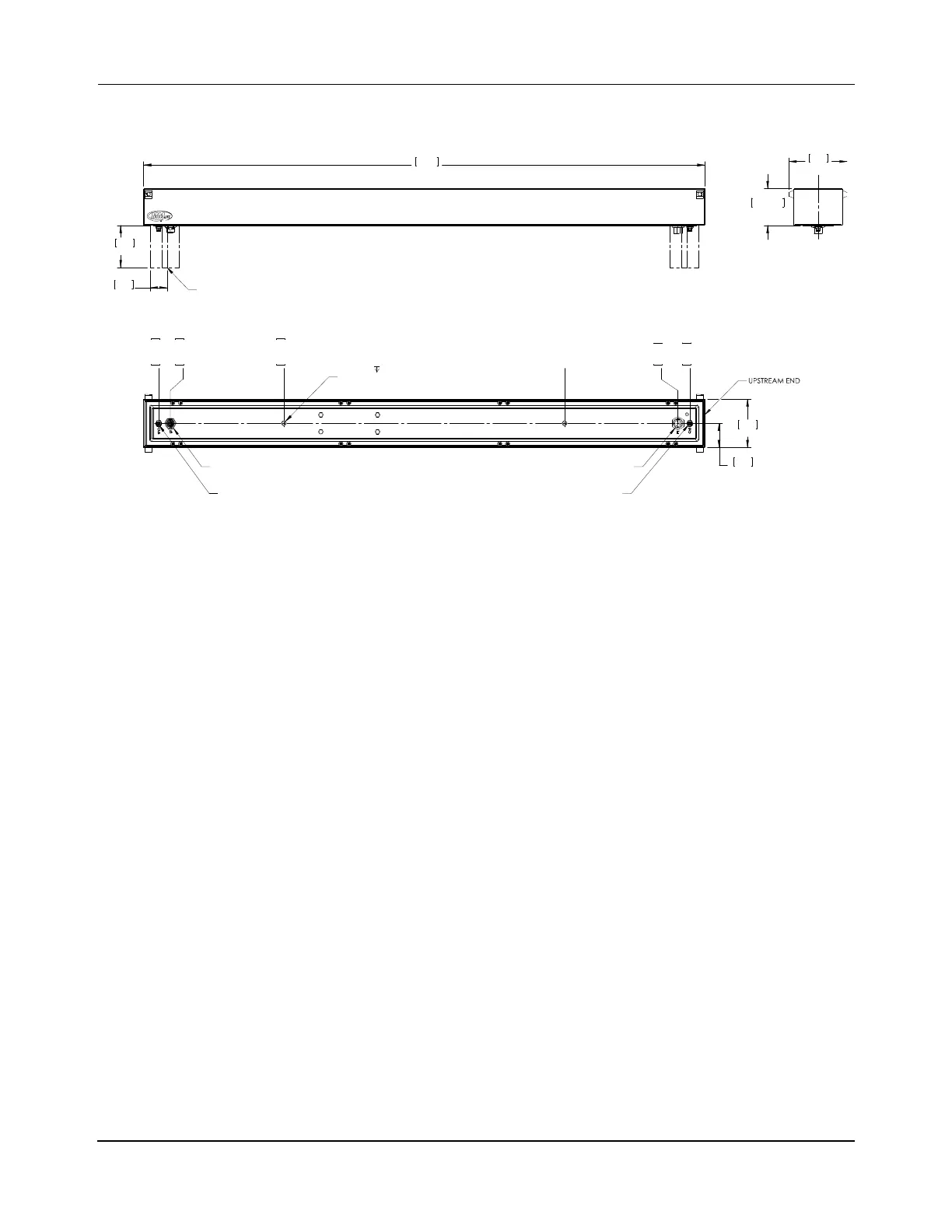

Figure 4-3: 1000 mm Railless RS-422 Motor Mechanical Drawing
NOTE: See Motors and Switches on page 206 for the electrical specifications.
The Sync cable connection is only present if the Synchronization option is installed.
If the Sync Option connector is not installed, a low-profile cap is installed to cover
the connector mounting hole.
The exclusion zones that are shown are for the MM LITE motor only. Additional
exclusion zones may be required based on the material being transported.
Ingress Protection Rating: Designed for IP65 (IEC 60529).
Vibration Rating: 5…500 Hz. @ 2 g.
Shock Rating: 15 g.
Exposed Materials
• Copper alloy, Nickel plate.
• Zinc, Nickel plate.
• Dow Corning
®
Silicone 737 and 734.
• A4 SS.
• 316L SS, Passivated.
• A286 SS.
• 300 Series SS, Passivated.
• 303 SS.
All Dimensions in Millimeters [Inches]Weight: 6.9 kg [15.2 lb]
0
19.685
500.00
223.00
8.780
28.465
723.00
7.953
202.00
27.638
702.00
POWER CONNECTOR
COMMUNICATION CABLE
CONNECTOR
CONNECTOR
SYNC CABLE CONNECTOR
(SYNC MOTOR ONLY)
COMMUNICATION CABLE
2X M6X1. 0 7mm
MOUNTING HOLE
MAX ALLOWA BLE TORQUE = 5.5 Nm
43.1
1.70
3.40
86.3
4X
1.18
30
4X
2.95
75
CLEARANCE NEEDED FOR
CONNECTOR & WIRE BEND RADIUS
39.33
999.0
2.60±.03
66.1±0.7 5
4.06
103.3
