Specifications and Site Requirements
Mechanical Specifications
MagneMover LITE User Manual 195
Rockwell Automation Publication MMI-UM002F-EN-P - October 2022

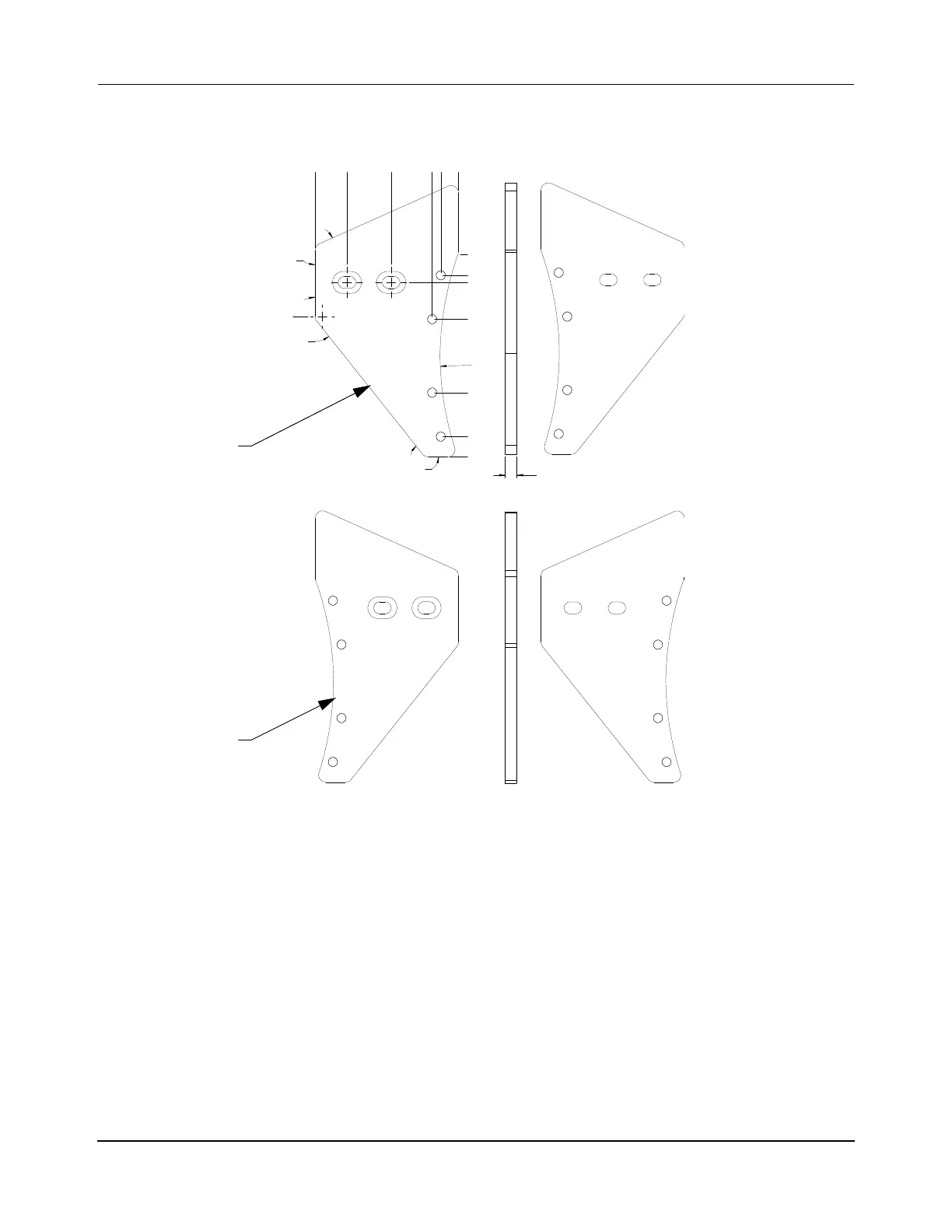

Figure 4-46: Precision Rail Curve to Curve, Spine Plates, Mechanical Drawing
0
0
17.37
41.37
2X 63.70
2X 68.35
78.0
11.08
35.00
75.00
76.40
2X 95.00
98.92
110.30
[0.25]
6.35
141.5°
128.5°
R169.88
114.2°
Right
Left
All Dimensions in Millimeters
700-1622-01
700-1622-04
