Rockwell Automation MagneMotion MagneMover LITE User Manual

Maintenance
Repair
MagneMover LITE User Manual 417
Rockwell Automation Publication MMI-UM002F-EN-P - October 2022
• Screw, Shoulder, SS, 1/4” Ø x 9/16” L,10-32, Dri-Loc (4X).
• Screw, Mach, Flat, Hex, SS, M2 x 0.4 x 5, Dri-Loc (2X).
• Torx T7 wrench.
• 1/8 in hex wrench.
• Metric hex wrench set.
• Torque wrench.
• Isopropyl Alcohol.
Procedure

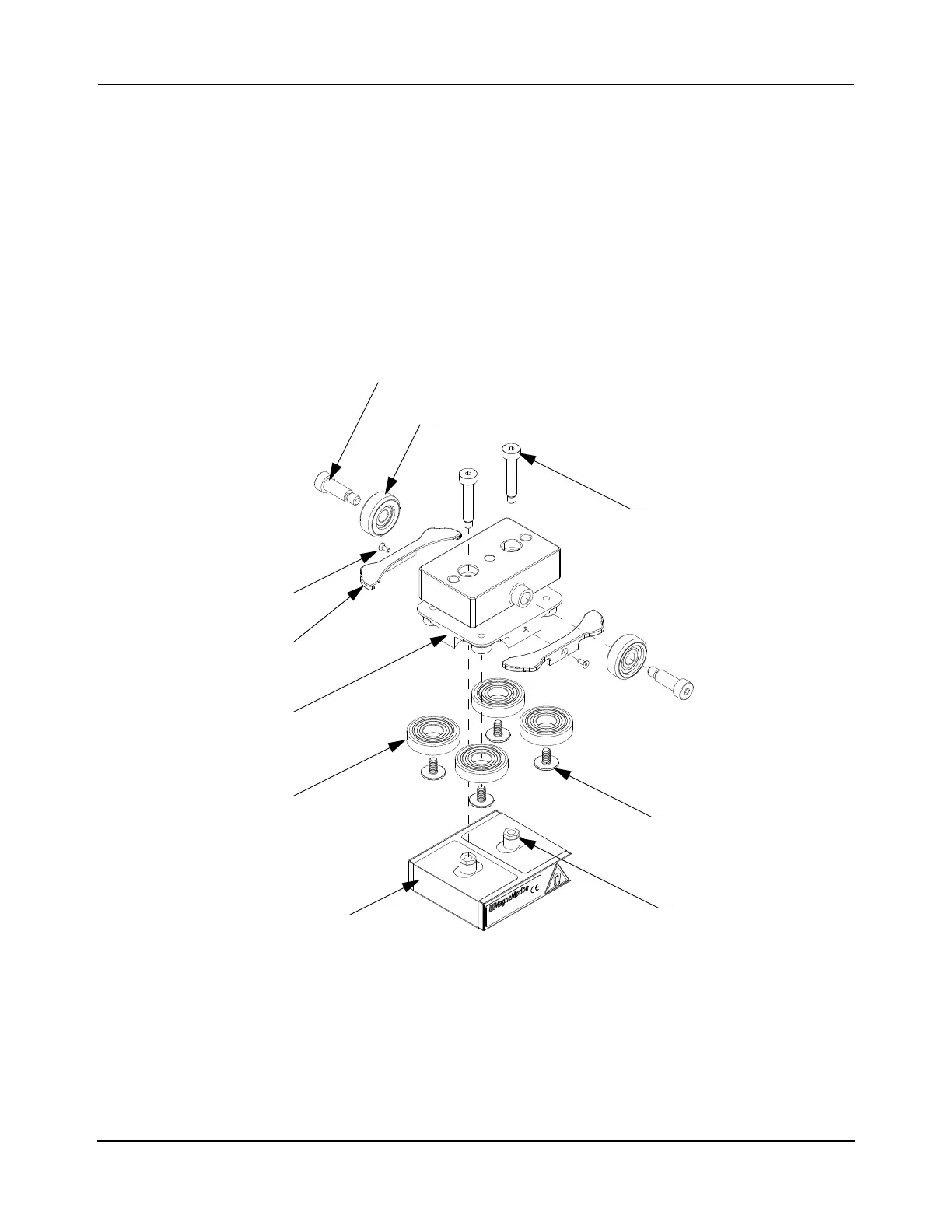

Figure 7-26: Replace 2-Wheel Puck Wear Points
1. Remove the wheeled puck from the tandem puck (see Replace Tandem Wheeled Puck
Wear Surfaces on page 419).
2. Place the puck on a non-metallic work surface with the magnet array down. Keep the
magnet array at least 1 m [3 ft] away from metal objects and tools.
M4 x 23.5 Shoulder Screw
(2X)
Magnet Array
10-32 Ultra-Low-Profile Shoulder Screw
Suspension (Payload) Wheels
(2X)
(2X)
M2 Screw
(2X)
Bumper
(2X)
Lateral Guide
Wheels (4X)
Puck Body
M4 x 0.7 x 7.5
Screws (4X)
Threaded Standoff
(ref)
