Glide Pucks
Glide pucks are used on standard MagneMover LITE transport systems with either aluminum
or stainless steel integral rails. Each glide puck can carry up to a 1 kg [2.2 lb] load.

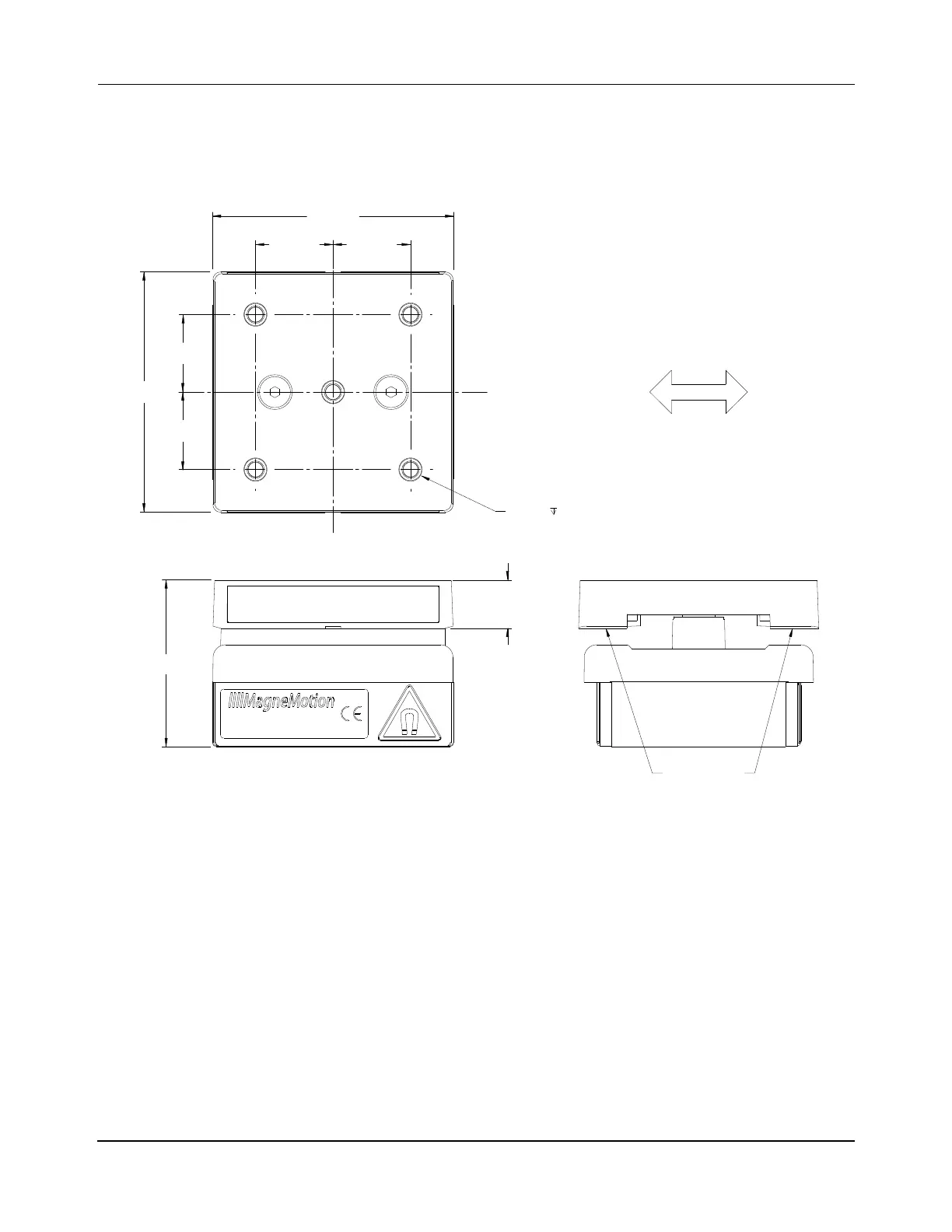

Figure 4-34: Glide Puck Mechanical Drawing (G5)
Exposed Materials
• Stainless Steel.
• 316/316L/316L #2 Stainless Steel.
• PEEK/PTFE.
• UHMW Polyethylene.
All Dimensions in Millimeters [Inches]Weight: 0.43 kg [0.9 lb]
700-1560-00
[0.787±0.010]
20±0.25
[0.787±0.010]
20±0.25
[0.787±0.010]
20±0.25
[0.787±0.010]
20±0.25
[1.69]
43
[0.488±0.010]
12.40±0.25
(0.3MM TYPICAL WEAR
NOT INCLUDED)
C
L
C
L
(TORQUE SCREWS TO 8 IN-LBS MAX)
6.3 MAX THD DEPTH
5X M4 X0.7
[2.44]
62
[2.44]
62
RUNNING SURFACES
DIRECTION OF TRAVEL
