Rockwell Automation MagneMotion MagneMover LITE User Manual

Design Guidelines
Transport System Configuration
MagneMover LITE User Manual 141
Rockwell Automation Publication MMI-UM002F-EN-P - October 2022
Switch Configuration

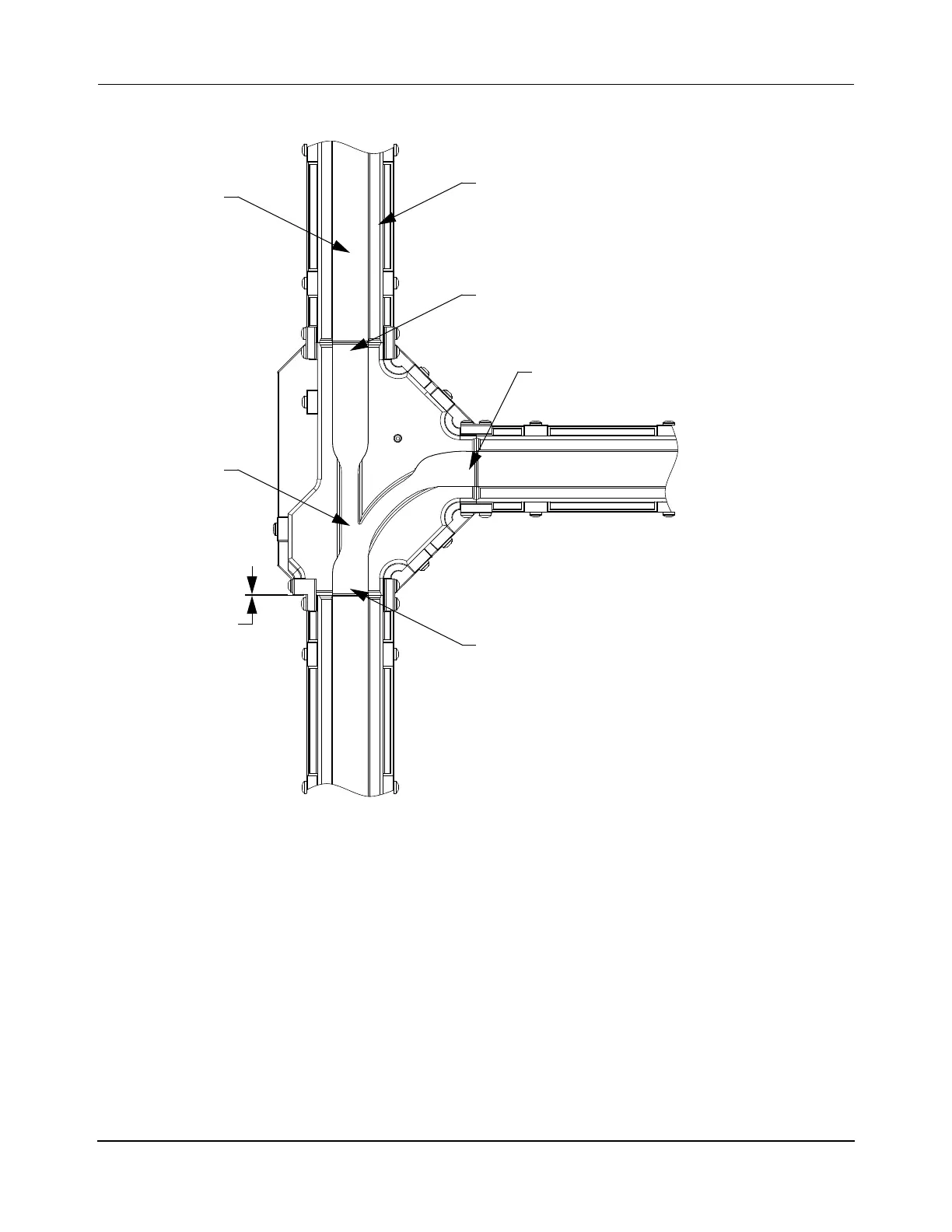

Figure 3-66: Switch Configuration
• Node Types at switch: Merge, Diverge.
• Provides a diverge from one path into two (single entry, curve exit, straight exit).
• Provides a merge of two paths into one (straight entry, curve entry, merged exit).
Straight Entry/Straight Exit
Curve Entry/Curve Exit
Merged Exit/Single Entry
Top View
Rails
MM LITE
MM LITE
Motor Gap
Straight Motor
Right Switch
