Design Guidelines
Transport System Design
88 MagneMotion
Rockwell Automation Publication MMI-UM002F-EN-P - October 2022

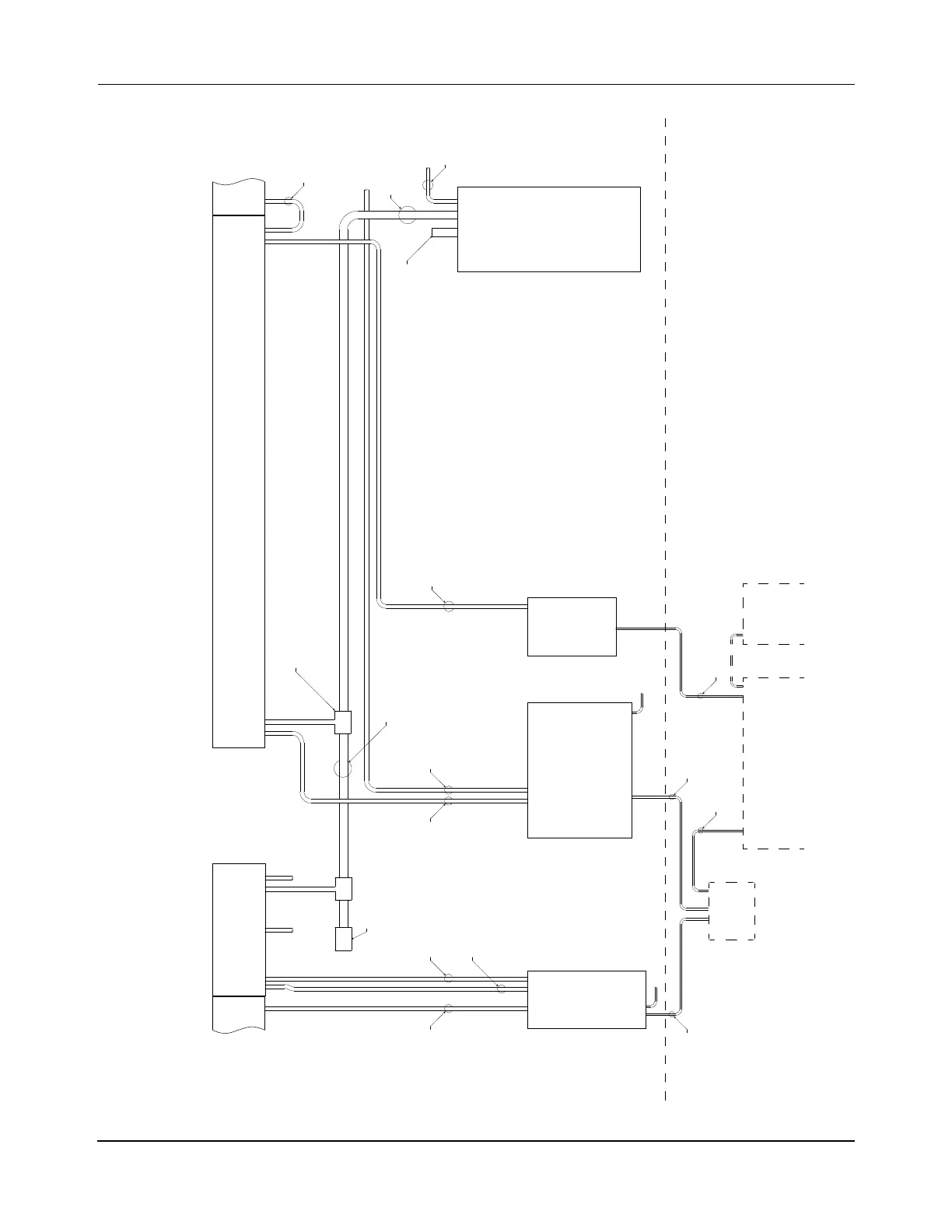

Figure 3-8: System Wiring Block Diagram, RS-422 Motor Communication
DOWNSTREAM
FROM LAST MOTOR DOWNSTREAM
UPSTREAM
MAGNEMOVER LITE MOTOR, 1M
MAGNEMOVER LITE SWITCH, LEFT
DOWNSTREAMUPSTREAM
DC POWER BUS 110-0016-XX
DC POWER BUS 110-0015-XX
100 - 240 VAC 50 - 60 Hz 8.5 A
RS-422 110-0090-XX
RS-422 110-0090-XX
RS-422
110-0090-XX
ETHERNET
SWITCH
+7 – 18 VDC OPTIONAL POE (+18 VDC)
+24 – 48 VDC
USER COMPONENTS
MAGNEMOTION COMPONENTS
HOST CONTROLLER
HUMAN
MACHINE
INTERFACE
UTP-CAT5
UTP-CAT5
SYNC IT
700-1566-00
MOTOR SYNC CABLE 110-0085-00
UTP-CAT5
UTP-CAT5
J1
LAN
CONSOLE
PWR
J2
J3
USB1
ETH1
ETH0
J1
J4
CM2
CM1
CM2
CM1
CM2
CM3
LAN
P1
CM4
CM1
S1
P1
P1
S1
TO NEXT MOTOR DOWNSTREAM IN STRAIGHT PATH
TO NEXT MOTOR
DOWNSTREAM IN
CURVE PATH
DC POWER BUS END CAP 110-0107-00
+36 VDC
ML POWER SUPPLY
110-0001-00
36 VDC J1
AC POWER J3
36 VDC J2
DC ENABLE J4
DC ENABLE JUMPER PLUG
700-1288-00
DC POWER T-SPLITTER 110-0014-00 (TYPICAL TO EACH MOTOR)
SP1
SP2
SP3
RS-422 110-0003-00 (can be extended using 100-2090-XX)
RS-422
110-0002-00
(can be extended
using 100-2090-XX)
RS-422 110-0002-00 (can be extended using 100-2090-XX)
NC-S
MMI-NC-SER08-01
RS-422
NETWORK
POWER
CONSOLE
1234
5678
NC LITE
700-0871-00
