Precision Rail Lubrication Pump Connector
The pinouts for the connector on the lubrication pump and the mating cable are provided in
Table 4-34.
Precision Rail Lubrication Pump Controls and Indicators
The lubrication pump has two status indicators on the body of the pump and an LCD status
display and button on the top, which is shown in Figure 4-64. The indicators and display are
used to set the operating configuration and monitor the pump status, see the manufacturers
documentation for detailed information.

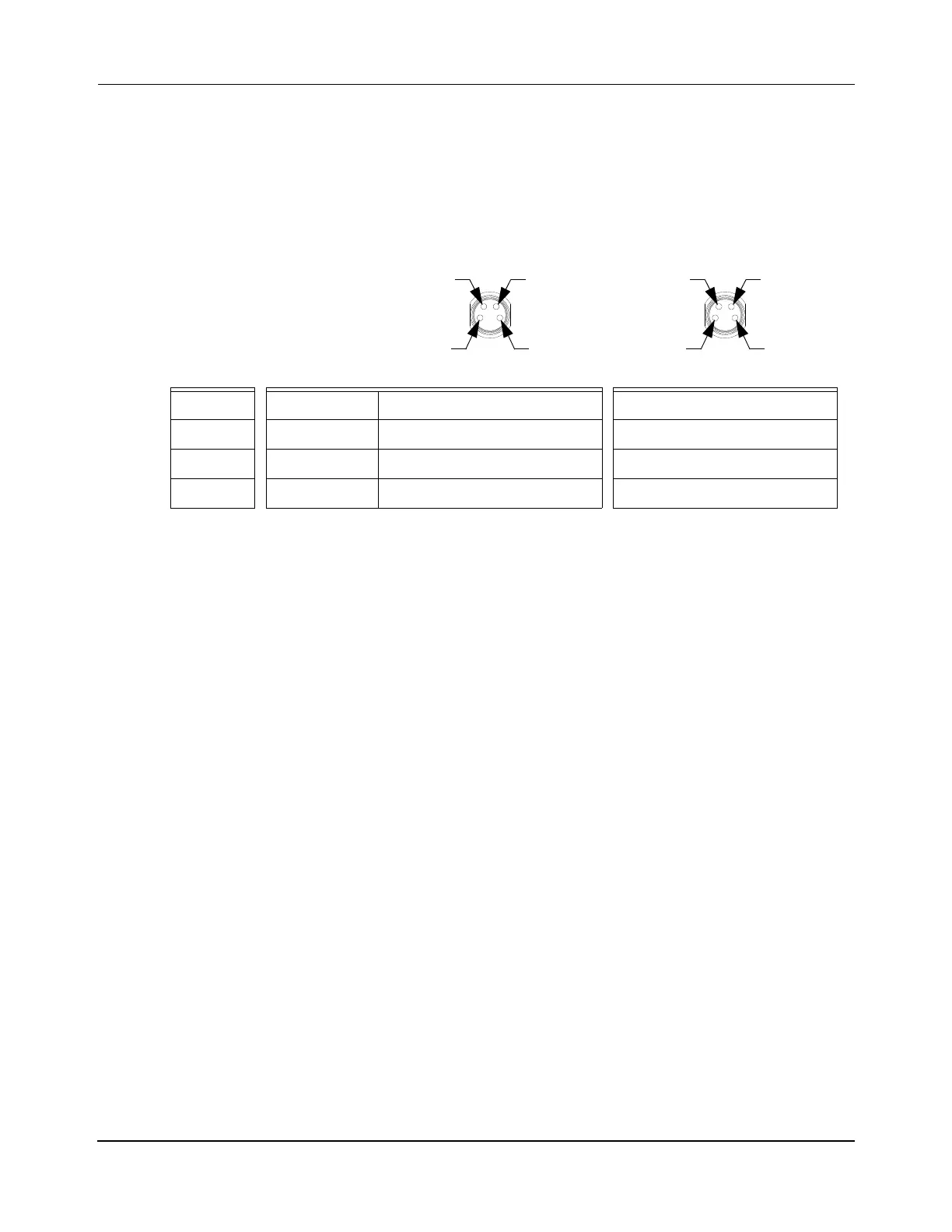

Table 4-34: Precision Rail Optional Lubricator Pump Control Pinout
Control Cable Pump
Individual
Wires M8, 4-Pin, Socket M8, 4-Pin, Plug
+V DC Brn 11
—Wht 22
GND Blu 33
—Blk 44
1
2
4
3
4
3
1
2
