Rockwell Automation MagneMotion MagneMover LITE User Manual

Specifications and Site Requirements
Mechanical Specifications
170 MagneMotion
Rockwell Automation Publication MMI-UM002F-EN-P - October 2022

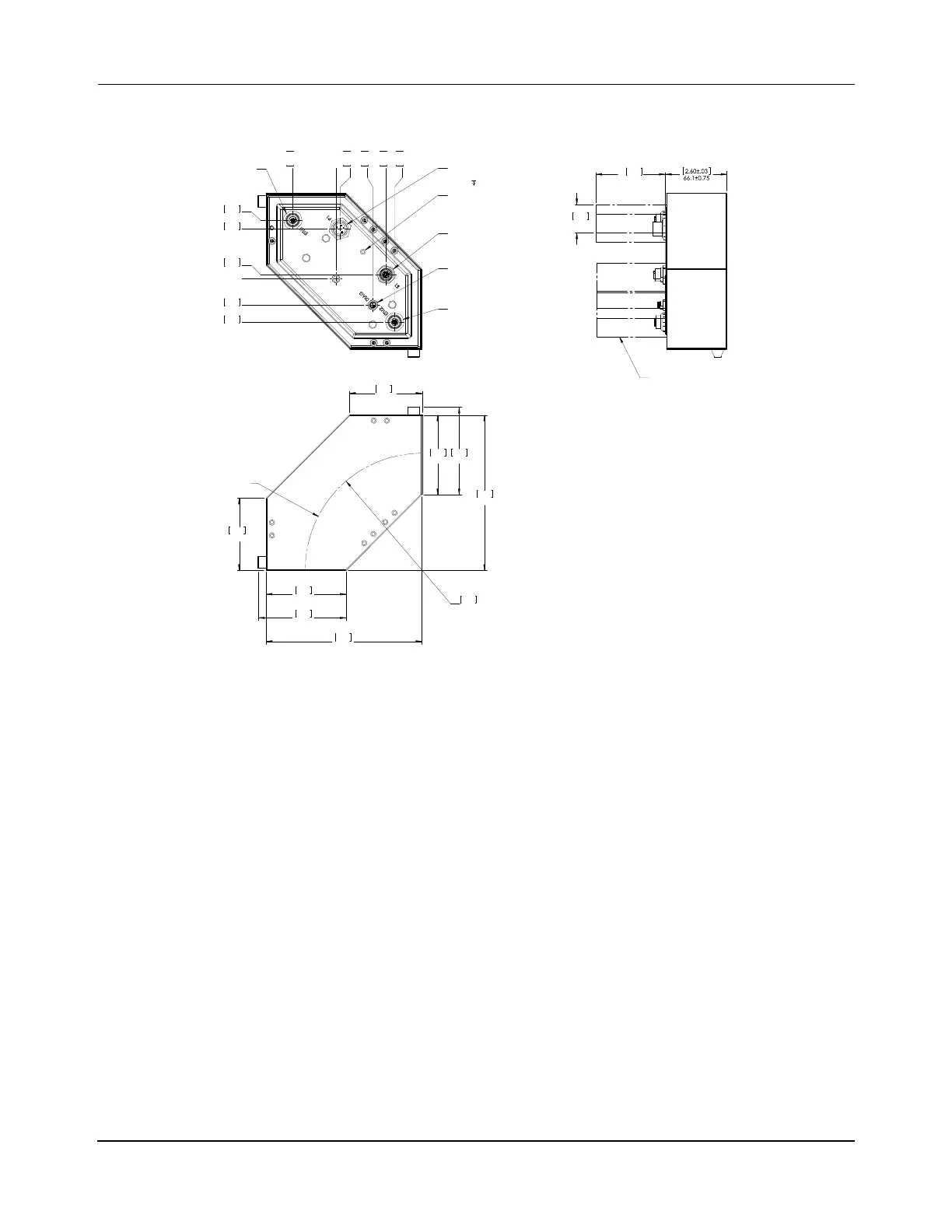

Figure 4-23: 125 mm R 90° Railless Curve Ethernet Motor Mechanical Drawing
NOTE: See Motors and Switches on page 206 for the electrical specifications.
The Sync cable connection is only present if the Synchronization option is installed.
If the Sync Option connector is not installed, a low-profile cap is installed to cover
the connector mounting hole.
The exclusion zones that are shown are for the MM LITE motor only. Additional
exclusion zones may be required based on the material being transported.
Ingress Protection Rating: Designed for IP65 (IEC 60529).
Vibration Rating: 5…500 Hz. @ 2 g.
Shock Rating: 15 g.
Exposed Materials
• Copper alloy, Nickel plate.
• Brass, Nickel plate.
• Zinc, Nickel plate.
• Dow Corning
®
Silicone 737 and 734.
• A4 SS.
• 316L SS, Passivated.
• A286 SS.
• 300 Series SS, Passivated.
• 303 SS
All Dimensions in Millimeters [Inches]Weight: 1.7 kg [3.7 lb]
PUCK TRAVEL
PATH
3.40
86.3
3.73
94.8
6.61
167.9
3.40
86.3
3.73
94.8
6.61
167.9
0
0
4.38
0.17
1.56
39.74
2.12
53.88
2.49
63.16
1.83
46.44
46.44
1.83
63.16
2.49
1.11
28.15
2.12
53.88
0.17 4.38
75
2.95
5X
5X
1.18
30
R125
4.92
3.06
77.7
ETHERNET
DIAGNOSTIC
CONNECTOR
UPSTREAM
END
POWER CONNECTOR
CABLE CONNECTOR
SYNC CABLE
(SYNC MOTOR ONLY)
CONNECTOR
CONNECTOR
ETHERNET
MOUNTING HOLE
TORQUE = 5.5Nm
MAX ALLOWABLE
7mmM6X1.0
CLEARANCE NEEDED FOR
CONNECTOR &WIRE BEND RADII
3.06
77.7
700-1708-42, 700-1708-45
