Rockwell Automation MagneMotion MagneMover LITE User Manual

Specifications and Site Requirements
Mechanical Specifications
184 MagneMotion
Rockwell Automation Publication MMI-UM002F-EN-P - October 2022

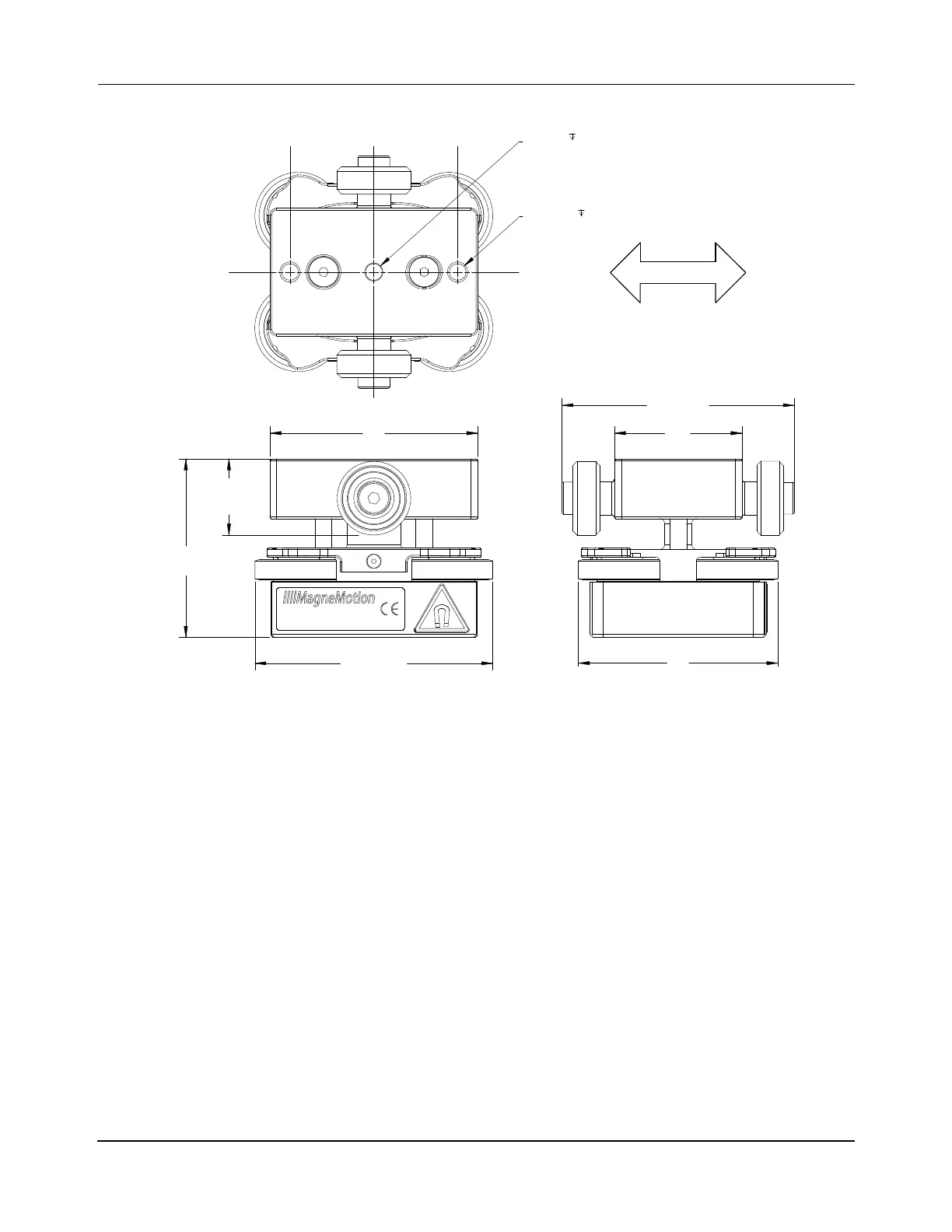

Figure 4-36: 2 Wheel Puck Mechanical Drawing
NOTE: This puck can only be used as part of a tandem puck assembly, see Figure 4-38 for
an example.
Exposed Materials
• 7075-T651 Aluminum, Anodized per MIL-A8625, Type III, Class 2, Black.
• 6061-T6 Aluminum, Natural.
• 174-PH/18-8/304/316/440C Stainless Steel.
• PEEK.
• Polyurethane.
• Stainless Steel.
• 316L/316L #2 Stainless Steel.
• UHMW Polyethylene.
All Dimensions in Millimeters [Inches]Weight: 0.60 kg [1.3 lb]
700-1738-03
DIRECTION OF TRAVEL
C
L
C
L
0
0
2X M5X0.8 - 6H 7.5 MAX 304SS DRY-FILM LUBE HELICOIL
(24 IN-LBS MAX TORQUE, NO THREADLOCKER)
M6 X 1.0 - 6H 12.0 MAX
[2.1]
53.2
OVERALL HEIGHT
[0.894±0.01]
22.71±0.25
(0.5MM [0.02] TYPICAL
WEAR NOT INCLUDED)
[2.80]
71.0
OVERALL LENGTH
[2.34]
59.5
[0.984]
25.00
[0.984]
25.00
[2.44]
62.0
[2.73]
69.4
OVERALL WIDTH
[1.50]
38.0
