Rockwell Automation MagneMotion MagneMover LITE User Manual

Specifications and Site Requirements
Mechanical Specifications
MagneMover LITE User Manual 185
Rockwell Automation Publication MMI-UM002F-EN-P - October 2022
Tandem Glide Pucks
The tandem glide pucks are used on standard MagneMover LITE transport systems with
either aluminum or stainless steel integral rails. Each tandem glide puck can carry up to a 2 kg
[4.4 lb] load.

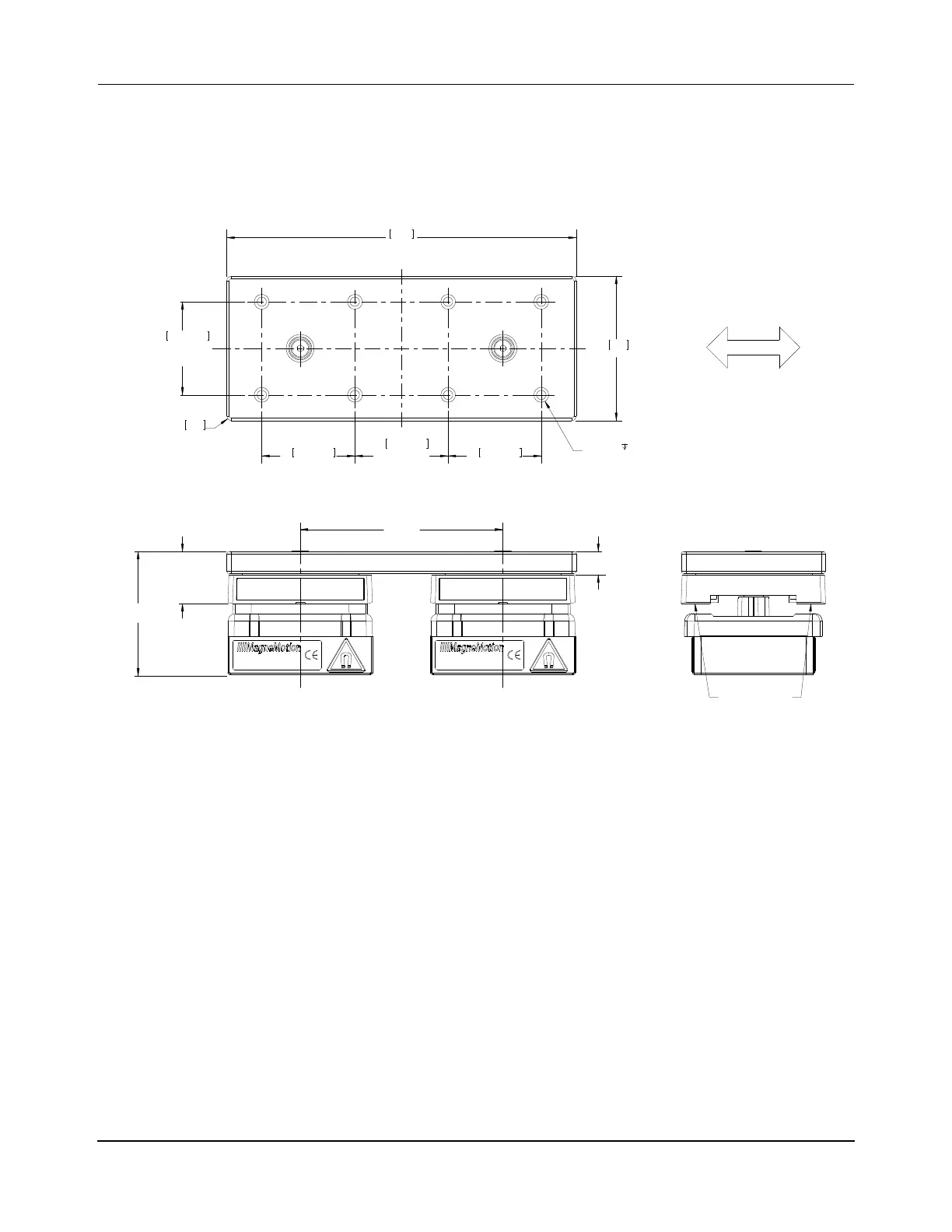

Figure 4-37: Tandem Glide Puck Mechanical Drawing (G5)
Exposed Materials
• Stainless Steel.
• 316/316L/316L #2 Stainless Steel.
• PEEK/PTFE.
• UHMW Polyethylene.
•Delrin
®
FG150.
• Acetal.
C
L
C
L
4X
1.575±.006
40±0.15
SYMMETRICAL
ABOUT
C
L
2X
1.575±.006
40±0.15
SYMMETRICAL
ABOUT
C
L
2X
1.575±.006
40±0.15
2X
1.575±.006
40±0.15
5.906
150.0
2.441
62.0
8X M4X0.7 6.3 MAX
(TORQUE SCREWS TO 8 IN-LBS MAX)
4X
.079
R2
DIRECTION OF TRAVEL
[0.394]
10.0
[2.105]
53.46
C
L
C
L
[3.425]
87.00
[0.882±0.020]
22.40±0.50
(0.3MM TYPICAL WEAR
NOT INCLUDED)
RUNNING SURFACES
All Dimensions in Millimeters [Inches]Weight: 1 kg [2.2 lb]
700-1561-00
