Rockwell Automation MagneMotion MagneMover LITE User Manual

Specifications and Site Requirements
Mechanical Specifications
MagneMover LITE User Manual 187
Rockwell Automation Publication MMI-UM002F-EN-P - October 2022
Magnet Arrays
The standalone magnet arrays are used on custom MagneMover LITE transport systems
where a user-designed track system with user-designed vehicles is being used.

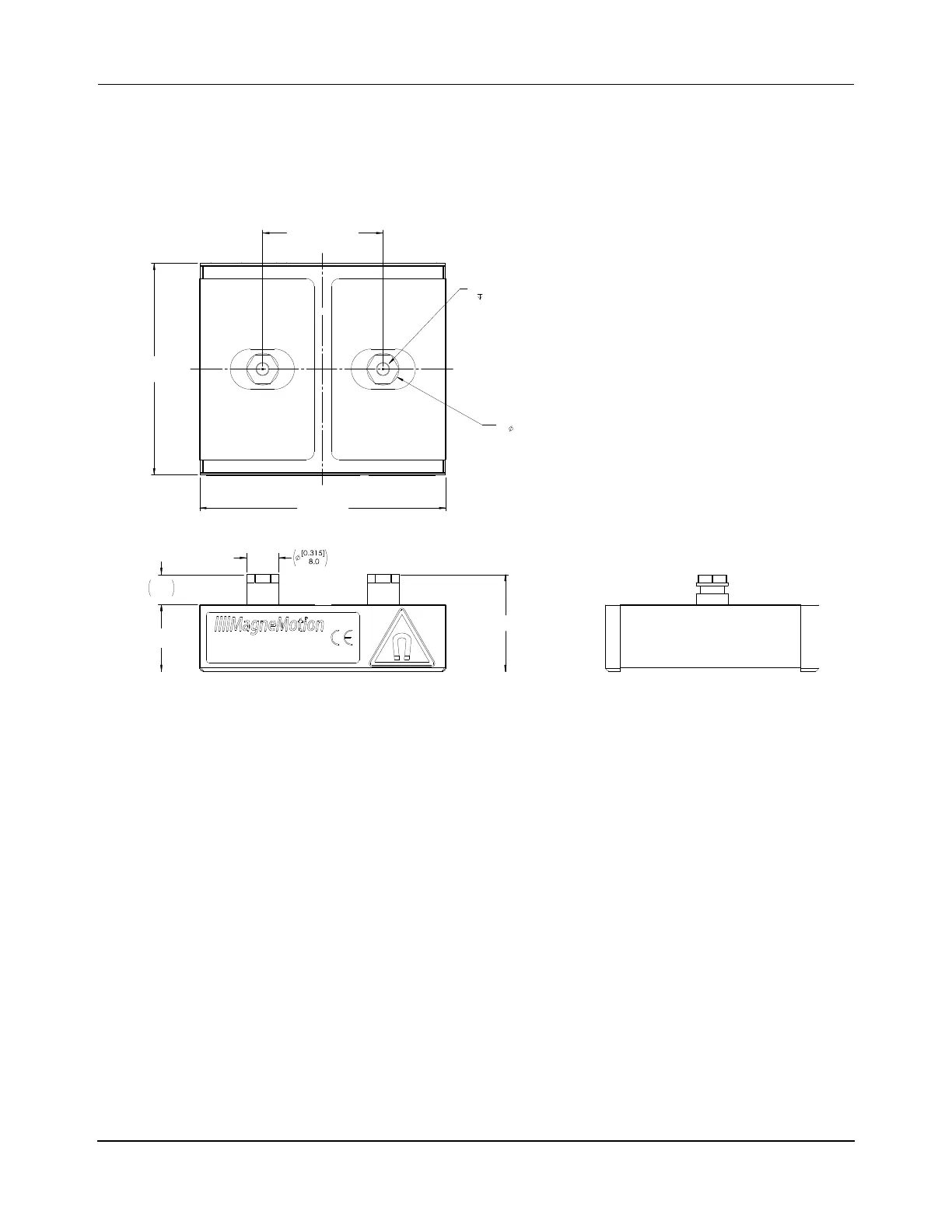

Figure 4-39: Magnet Array Mechanical Drawing (G4.2)
Exposed Materials
• Stainless Steel.
• 316L/316L #2 Stainless Steel.
• UHMW Polyethylene.
All Dimensions in Millimeters [Inches]Weight: 0.37 kg [0.8 lb]
700-1458-01
2X M4 X 0.7-6H
4.6 MAX THREAD ENGAGEMENT
RECOMMENDED TORQUE:
13 IN-LB WITH LOCTITE 243 THREADLOCKER
C
L
C
L
[2.417±0.016]
61.4±0.4
C
L
[2.070 ±0.016]
52.6±0.4
[1.181
±0.004]
30.0±0.1
SYMMETRIC ABOUT
[0.657±0.012]
16.7±0.3
[0.292]
7.4
[0.950±0.16]
24.1±0.4
2X
[0.315±0.16]
8.0±0.13
2X
